QUANTUM MAX

HPHT gravel- and frac-pack packer

Rated to 15,000 psi [103 MPa]
Rated up to 350 degF [176 degC]
Validated to ISO 14310 and API Spec 11D1 V3 or V0

Optimize openhole and cased hole gravel packs and frac packs in HPHT environments

Designed to help you optimize HPHT gravel pack and frac pack operations, the QUANTUM MAX gravel- and frac-pack packer is ideal for STIMPAC fracturing and gravel-packing service treatments and can also be used as a standalone production test or drillstem test (DST) packer.

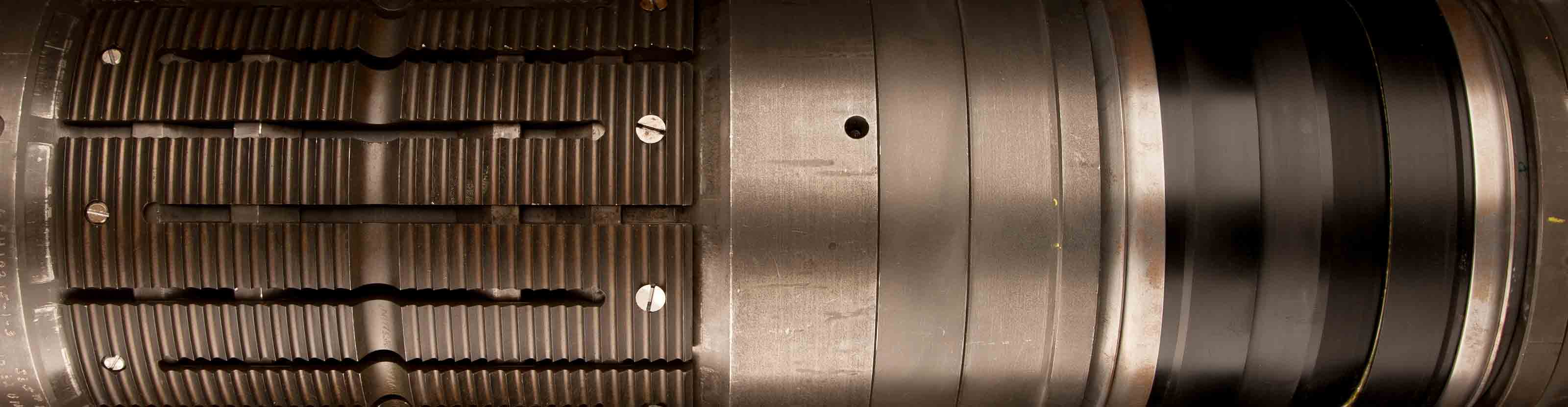

The sealbore, hydraulic-set retrievable packer features a barrel-slip design that distributes tensile and compressive loading, which minimizes risks of deforming the casing. The one-piece X-series elements withstand differential pressures at both high and low temperatures. The element design also enables high run-in-hole speeds and circulation rates without concern for swab setting of the packer.

QUANTUM MAX HPHT gravel- and frac-pack packer

Reduce risks and maximize production

The packer's large-bore design maximizes production. It is available with X-series HNBR or AFLAS element with high flow-by capability.

The packer is also compliant with NACE Standard MR0175 for sulfide stress cracking-resistant metallic materials.

QUANTUM MAX HPHT gravel- and frac-pack packer
