XMP

Premium multiport production packer

Download PDF
Contact an Expert
Related Documents
Buy now
Rated to 10,000 psi [69 MPa]
Rated up to 350 degF [176 degC]
Validated to ISO 14310 and API Spec 11D1 V0

Test and isolate intelligent completion segments

Designed for use in intelligent completions, the XMP premium multiport production packer is a tubing-conveyed, hydraulic-set, retrievable packer with multiple bypass configurations for hydraulic control lines or electric conduits.

Applicable in single- and dual-zone completions, the packer is capable of surface testing and has a short length to facilitate running into the well.

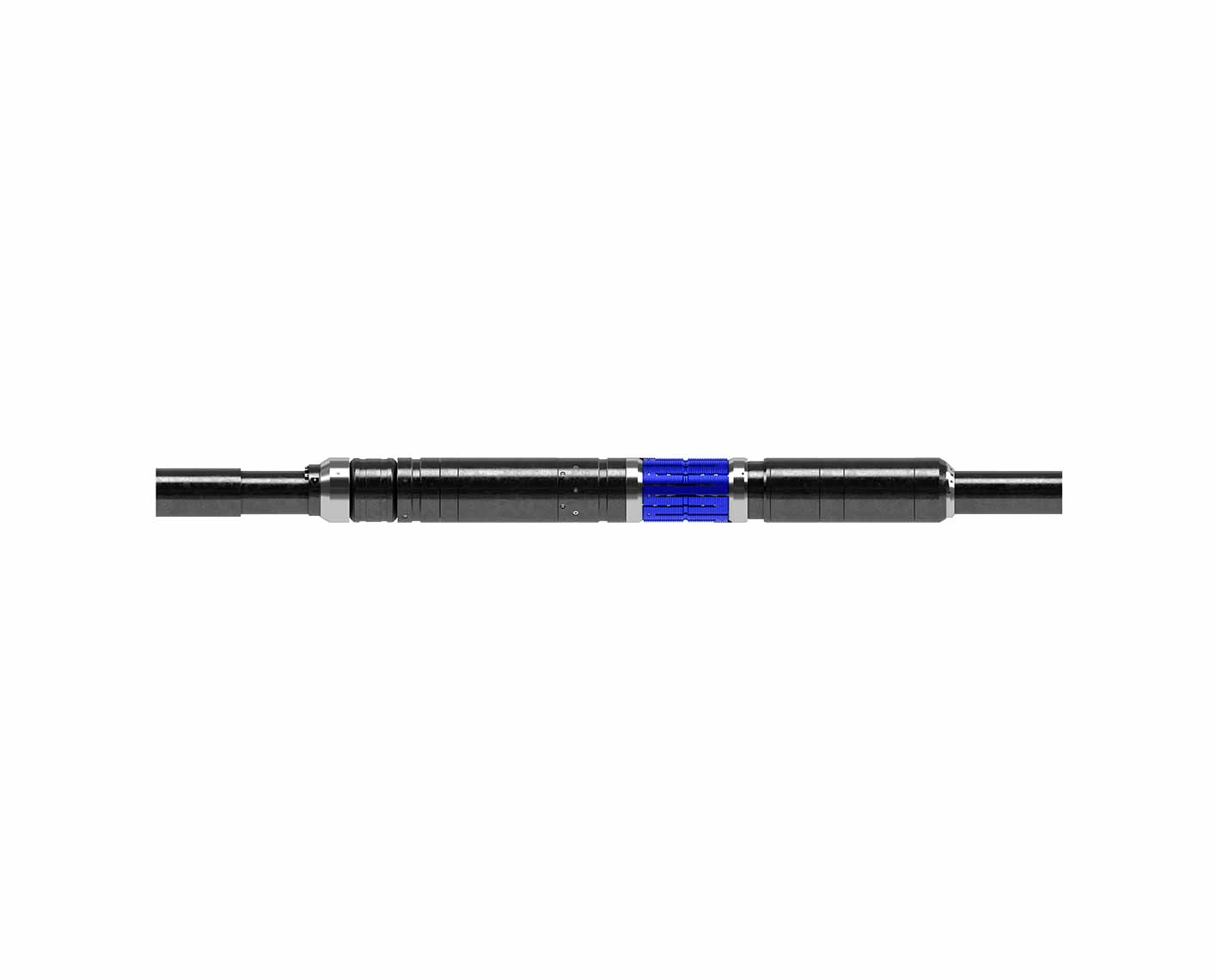

XMP premium multiport production packer

Add flexibility for intelligent completions

The flexible design of the XMP means you can order it with configuration options for left-hand rotation disconnect or retrieval by intervention with a tubing cutter. The packer design also eliminates pipe movement.

The barrel slip design makes the packer suitable for unsupported casing, and slips are below the element to minimize risks for retrieval.
