PowerDrive Orbit

Rotary steerable system

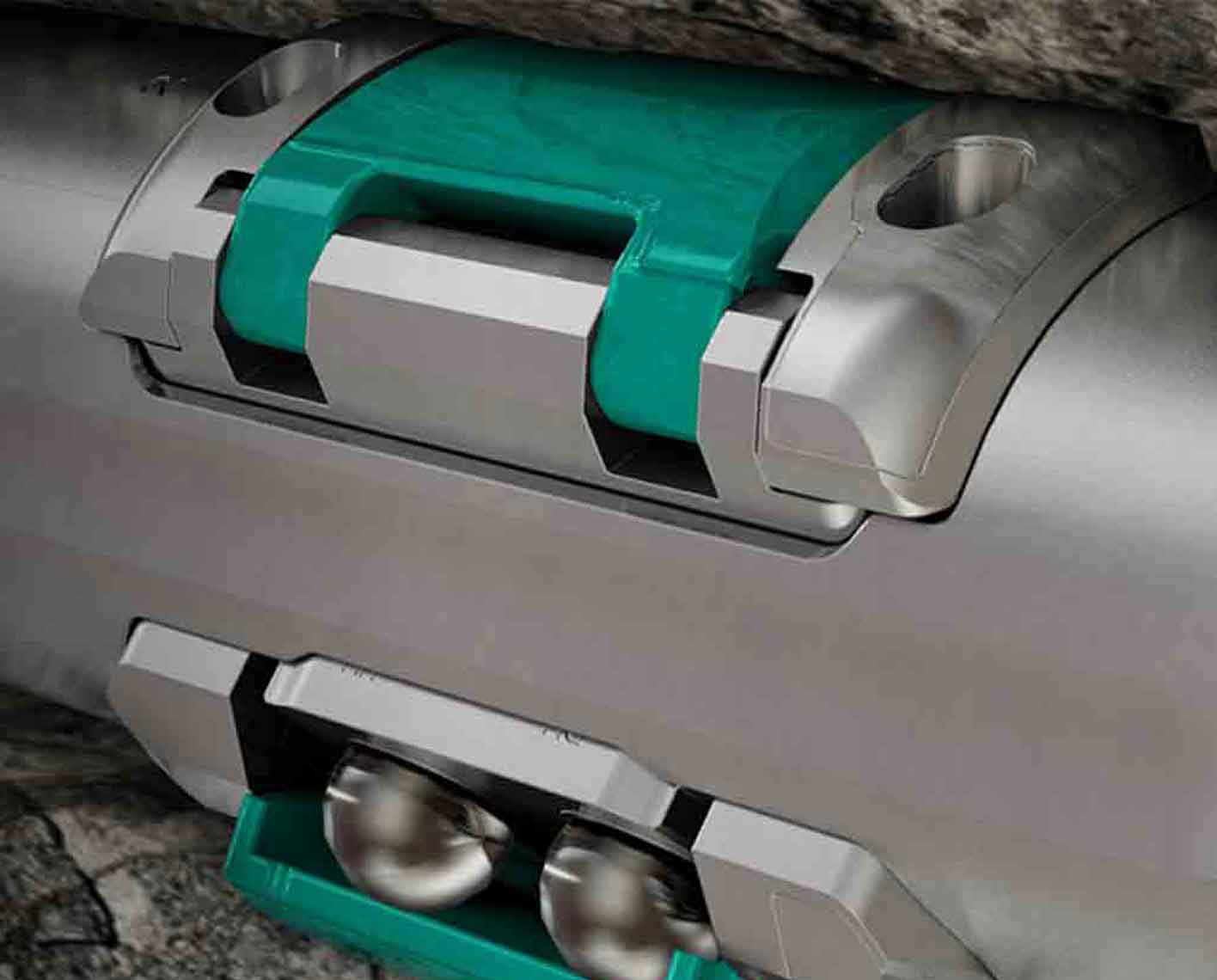

Close up of the actuators on a PowerDrive Orbit RSS inside a wellbore.

Performance drilling with enhanced trajectory control

The PowerDrive Orbit RSS is highly versatile, tough, and reliable in any global operational environment. It cuts drilling time and increases efficiency with its ability to steer at high surface rpm. An innovative pad design features metal-to-metal sealing to handle aggressive drilling fluids and severe downhole conditions. With dual downlink options, including the QuikDownlink continuous-circulation downlink service, it fulfills all commands from surface in any rig type, enables real-time decision making, and provides excellent trajectory control.

Real-time data for accurate well positioning

Supporting up to 350 rpm, the PowerDrive Orbit RSS delivers higher ROP and helps to minimize stick/slip. It provides six-axis continuous survey and azimuth measurements that, together with automated downhole closed loops that include hold inclination and azimuth mode, optimize outcomes for well placement, trajectory control, and smoother boreholes. PowerDrive Orbit RSS minimizes dogleg severity in laterals, enables early control, and drives consistency in drilling operations. Early identification of zones of interest are provided by its extended gamma ray measurement.

Toughness and versatility to take on any environment

The PowerDrive Orbit RSS has enhanced durability for severe downhole conditions. It can drill from shoe to TD in a single run, reducing operating days. It provides extra reliability in complex operations where stick/slip, severe shock and torque, and complex hydraulic systems are significant risks.

Two Schlumberger field technicians at a rigsite confirm specifications for a PowerDrive Orbit RSS prior to running downhole


  • Innovative pad design with metal-to-metal sealing to handle corrosive drilling fluids and severe downhole conditions
  • Expanded revolution rate limits, supporting up to 350 rev/min for higher ROP and stick and slip control
  • Six-axis continuous inclination and azimuth measurements for better true-vertical-depth (TVD) definition and accurate well positioning
  • Dual downlink options to fulfill all commands from surface in any rig type

Target applications: C&L
Maximum pressure: 30,000 psi [207 MPa]
Maximum rotational speed: 350 rpm
Maximum temperature: 302 degF [150 degC]
A simplified side-view rendering of a shortened PowerDrive Orbit RSS
