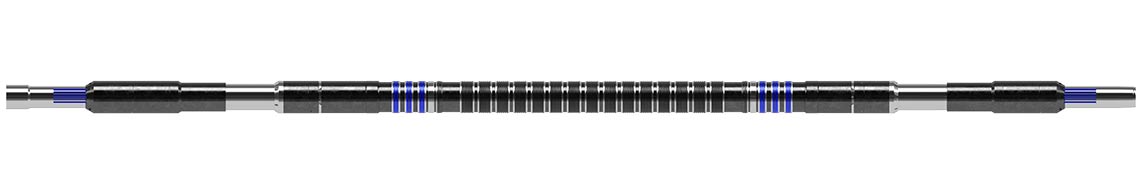

Feedthrough expandable annular zonal isolation packer
Expandable steel packers enable rapid openhole segmentation and zonal isolation with monitoring and control
- Zonal isolation in openhole and cased hole wells, including vertical, deviated, and horizontal configurations
- Integration with intelligent completion systems requiring hydraulic and electric line feedthroughs
- Operations in wells with irregular borehole geometries where traditional packers may be less effective
Set the packer immediately with on-demand expansion
- Expandable steel technology that ensures a secure seal by conforming to the wellbore shape, even in challenging conditions
- Six feedthrough ports with 0.25-in diameter for hydraulic, electric, or fiber-optic lines, facilitating seamless integration with intelligent completions
How is the packer set?
The packer is made up to a casing string that is run into the open or cased hole. Once in position, pressure is applied by pumping from surface to expand the packer. The lower end of the casing can be sealed with a plug and then the full string above is pressurized. Alternatively, the expansion port can be isolated using a cup tool or polished bore receptacle with an inner string.
Pressure is transmitted through the expansion port to the packer’s integral sleeve. The sleeve expands into the annulus between the casing and borehole or outer casing string, conforming to the shape of the wellbore or casing and isolating the annulus below the packer from the annulus above. Expansion of the sleeve also centralizes the casing string.
