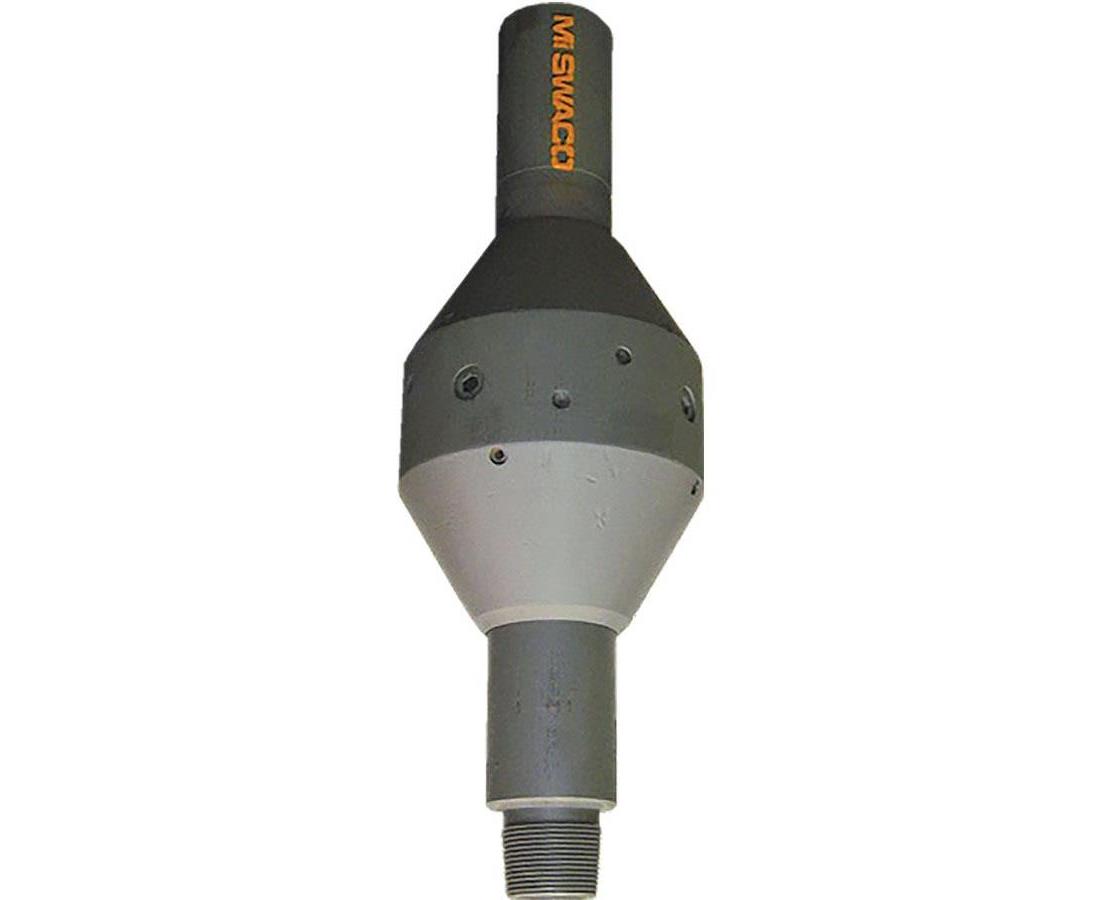

Jetting Tool DUAL-ACTION BYPASS SUB

Name: DUAL-ACTION BYPASS SUB
Brand: SLB

Circulating valve

联系我们 Related Resources

One-piece, full-strength mandrel

Availability with 11- or 16-in-OD sleeve

Balls retained on seats in tool

Sixteen 0.437-in jet nozzles at 22° phasing

Clean close to the profile for optimal debris removal

The DUAL-ACTION BYPASS SUB circulating valve removes debris from the riser, blowout preventer (BOP), and wellhead to clean surfaces while preparing for cementing and completion operations. The tool is ideal for BOP jetting and specially designed to remove contaminants such as drill cuttings and mudcake that can impede effective cementing and completions.

The valve is run in the open position for jetting and cleaning while traveling through the BOPs, wellhead, and riser. The external jetting nozzles on the sub are then closed by dropping an actuator ball to allow flow through the sub and to circulate the string. By dropping another ball, they are reopened when pulling out, allowing jetting of the riser and BOPs. The balls remain on seat at all times.

Features

One-piece, full-strength mandrel
Balls retained on seats in tool
Availability with 11- or 16-in-OD sleeve
Sixteen 0.437-in jet nozzles at 22° phasing

Advantage

Jets clean closer to the profile when used to jet the riser, wellhead, or BOP stack

Applications

The DUAL-ACTION BYPASS SUB circulating valve is designed to run in a cleanup string for jetting the riser, BOPs, and wellhead areas.

Advantages

When using the circulating valve to jet the riser, wellhead, or BOP stack, the large 11- or 16-in- [279- or 406-mm-] OD sleeves allow the jets to clean closer to the profile.

TheDUAL-ACTION BYPASS SUB circulating valve is ideal for BOP jetting and specially designed to remove contaminants such as drill cuttings and mudcake, which can negatively affect cementing and completions.
