StreamLine

Polymer-locked wireline cable

Engineered for efficiency in all environments

StreamLine™ polymer-locked wireline cable can be deployed in all environments to effectively address the challenges posed by the use of conventional wireline cable in intervention, workover, and completion operations. Advanced features and torque-balanced design help mitigate maintenance trips associated with grease injection, armor stranding, birdcaging, corrosion, and twisting. The result is a significant efficiency gain with reduced operational and well control risks, maintenance-related logistics, and costs.

  • Pumpdown perforation in unconventional wells
  • Extended-length gun system perforations
  • Combined wireline and slickline operations
  • Environmentally responsible operations
  • Limited-footprint wellsites
  • Increases overall efficiency
  • Minimizes operational risk in all environments
  • Reduces maintenance and cost of operation
  • Reduces cable friction to improve well access with increased overpull margins
  • Delivers faster running speed by reducing friction and eliminating cable seasoning
  • Integrated cable and dual-packoff system
  • Polymer-locked smooth jacket
  • Shock- and flame-resistant design
  • Elimination of grease injection, armor stranding, birdcage formation, and armor corrosion
  • Reduced maintenance requirements

StreamLine cable is provided as a system with integrated dual packoff and a specially designed sealed torpedo to ensure complete isolation from well fluids such as gas entering the cable. Reduced friction from the cable’s smooth polymer jacket makes StreamLine cable the optimal conveyance for high-efficiency perforating operations. In pumpdown operations in North American unconventional reservoirs, using StreamLine cable has increased the stage yield by 15%.

SpecificationsStreamLINE
Specifications Safe working load (SWL)* TDL StreamLINE  6000 lbf [26.7 kN]
Specifications Safe working load (SWL)* CMTD StreamLINE  5000 lbf [22.2 kN]
Specifications Cable nominal OD StreamLINE  0.332 in [8.433 mm]
Specifications Diameter variation StreamLINE  0.003 in [0.076 mm]
Specifications DC resistance at 68 degF [20 degC] StreamLINE  AWG 16 (center): 4.3 ohm/1000 ft [14.1 ohm/km],
Armor resistance: 3.1 ohm/1000 ft [10.2 ohm/km]
Specifications Voltage rating (conductor) StreamLINE  1100 V DC [778 V rms]
Specifications Current rating (conductor) StreamLINE  2.6 A
Specifications Insulation resistance (500 V) StreamLINE  15000 megohm.1000 ft [4572 megohm.km]
Specifications Calculated weight in air StreamLINE  155.55 lbm/1000 ft [231 kg/km]
Specifications Calculated weight in fresh water StreamLINE  118.02 lbm/1000 ft [176 kg/km]
Specifications Temp. rating, 24-h StreamLINE  350 degF [177 degC]
Specifications Temp. rating, min.  StreamLINE  -40 degF [-40 degC]
Specifications Temp. rating, min. storage StreamLINE  -60 degF [-40 degC]

All values are subject to change without notice.
* TDL = tension device link, CMTD = cable-mounted tension device

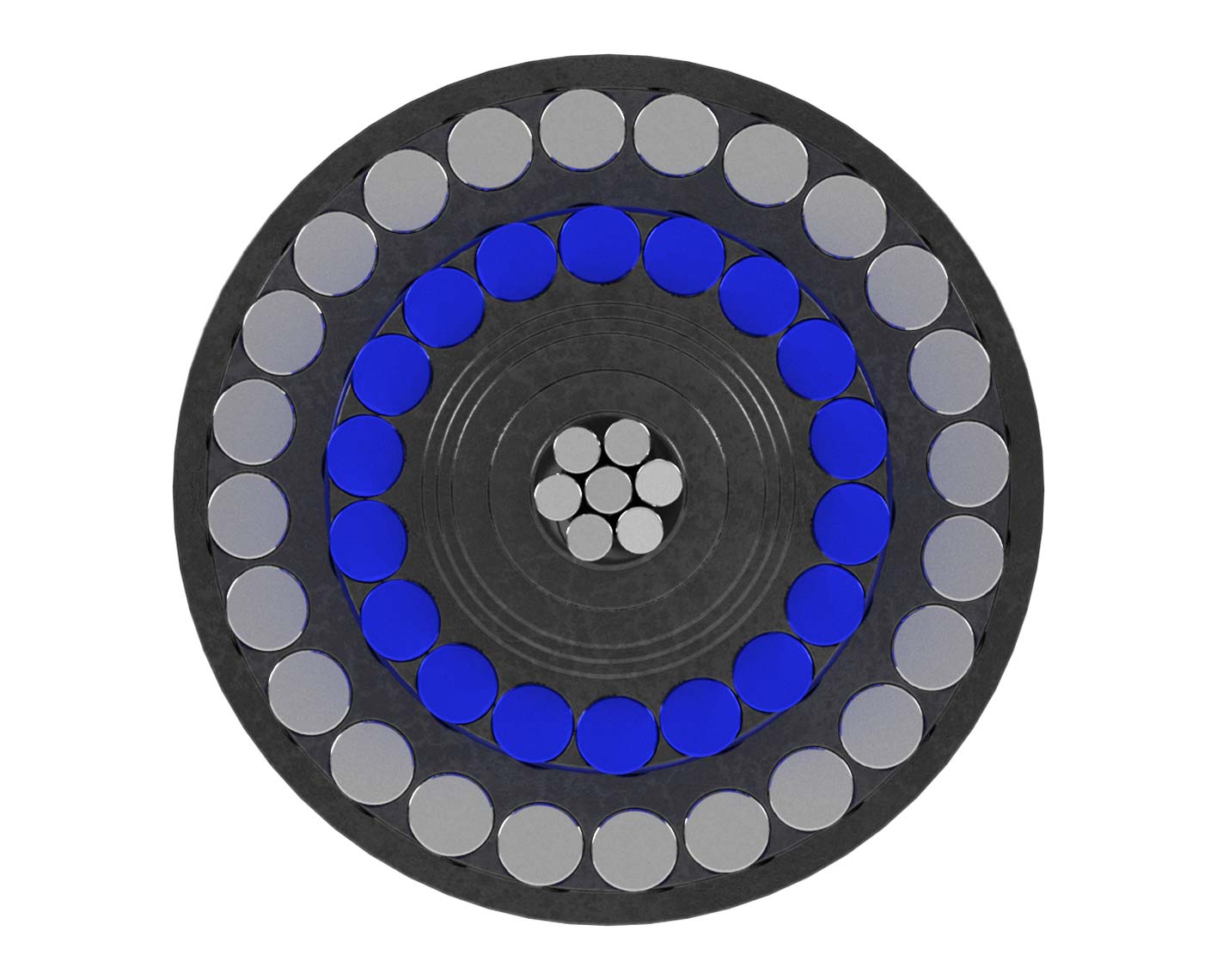

StreamLine polymer-locked wireline cable.
