CPS 665
Cement pumping skid
The CPS-665 cement pumping skid was designed for offshore high-pressure pumping services, delivering up to 1,400 hhp. Two 860-horsepower Caterpillar diesel engines power the unit. A remote radiator package is standard. The skid’s split design with bulkhead enables installation of a soundproof wall. The skid is also equipped with the advanced cement control (ACC) data acquisition and monitoring system, which enables precise control of slurry density.

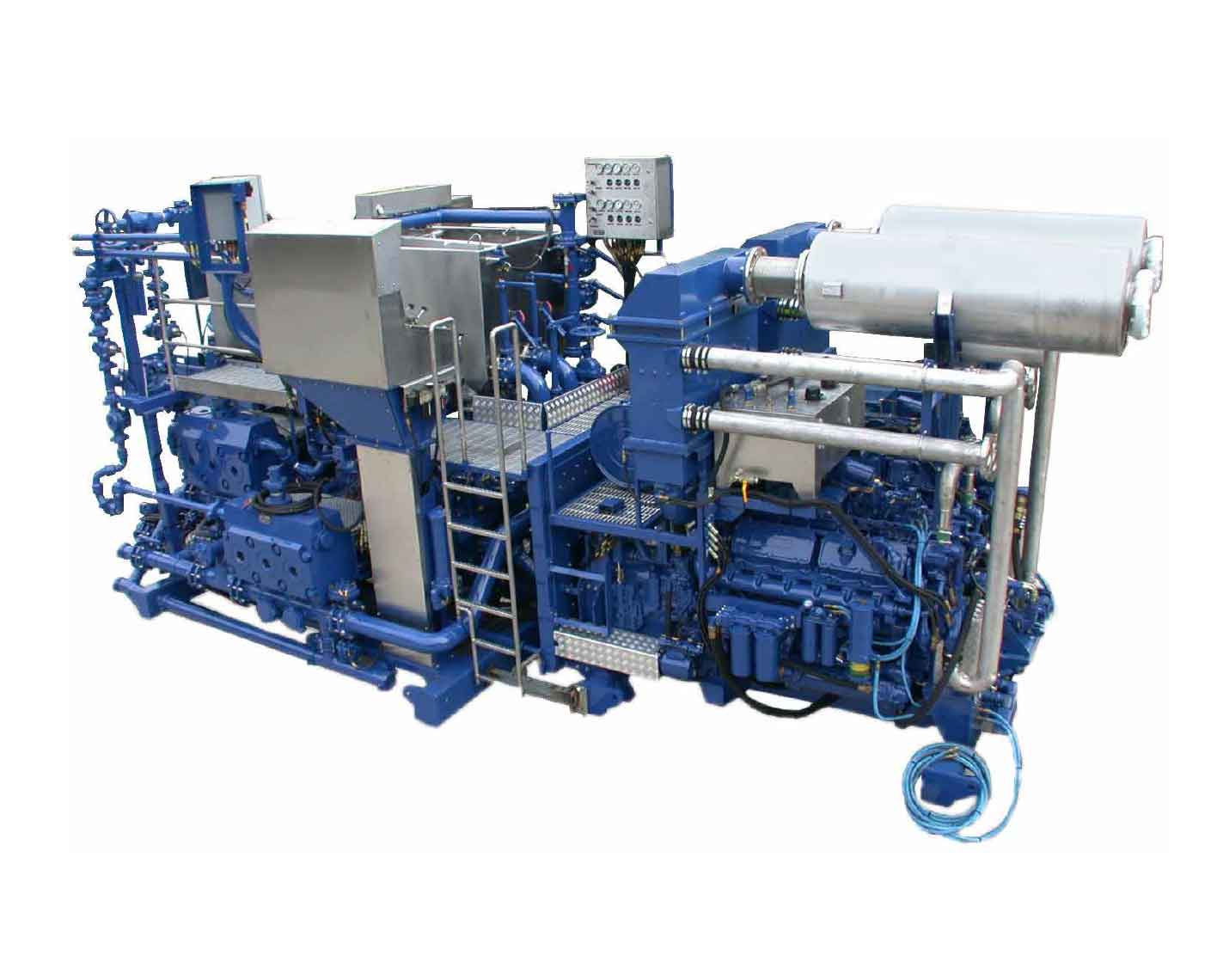

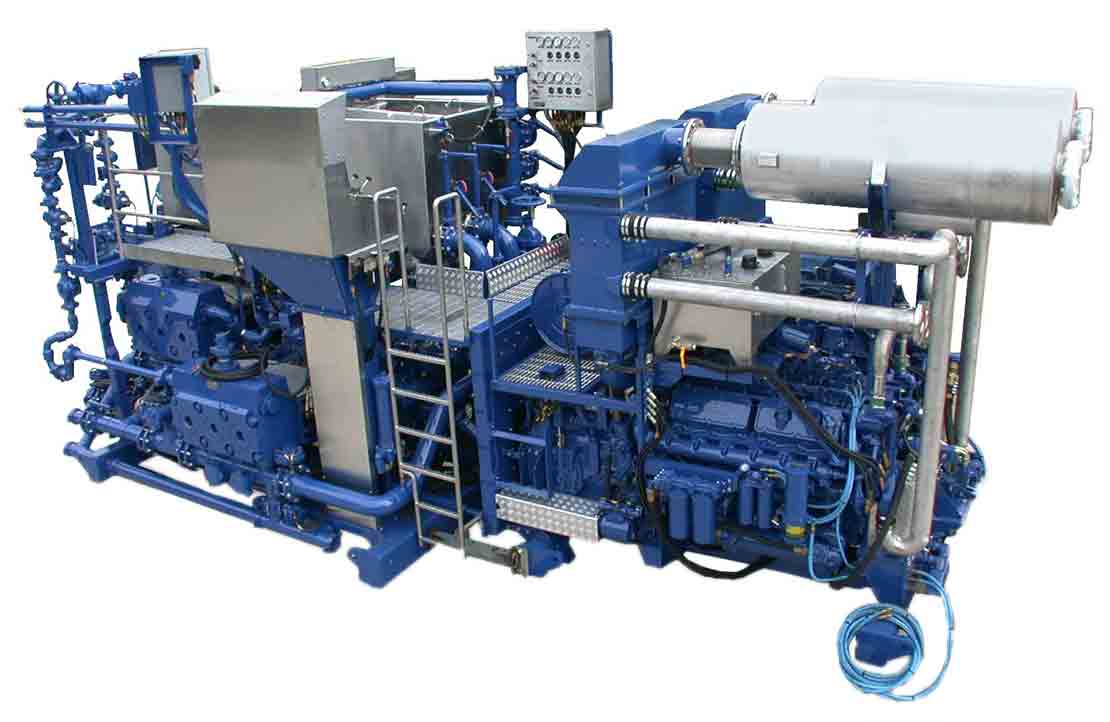

The CPS-665 cement-pumping skid.
Applications
- High-pressure pumping
- Meters and pumps mixing and displacement fluids
- Recirculating cement
Features
- Full system redundancies
- Direct-driven mixing pumps for improved reliability and efficieny
- Mark III SLURRY CHIEF cement mixing equipment with CBS-393
- Nonradioactive densitometer
- ACC system
- Stainless steel displacement tanks
- Split skid with bullhead
- Full selection of fluid ends
- Pressurized packing lube systems
- Solids fraction monitoring
- Adjustable choke valve
- Temporary replacement for mud pump
- Compliance with Zone 2 hazardous area regulation
- ABS-CDS certification
