RRT

Right-hand-release liner hanger running tool

Torque rated up to 45,000 ft.lbf [61,000 N.m]

Tensile load rated up to 800,000 lbm [3.560 kN]

Mechanically or hydraulically set liner hanger systems that require high torque to drill the liner

The right-hand-release running tool (RRT) is designed to convey liner hanger systems that require high torque to enable drilling the liner during the operation. In cases where a rotational liner hanger is deployed, the RRT also enables the liner to be rotated after the liner hanger is set. The tensile and torque ratings make the RRT suitable for challenging liner hanger applications with long and heavy liners.

Optimize liner operations for COLOSSUS liner hanger systems

The RRT is optimized to run mechanically or hydraulically set liner systems that employ

PV-0 high-pressure V0 liner top packer
LTP liner top packer
when installation is across multiple runs, the setting adapter for the cemented or uncemented liner hanger system.

The setting string typically comprises an RRT, a slick joint, a cementing packoff bushing, a liner wiper-plug adapter, and an extension to connect to the running string. A packer dog assembly can be included if a liner top packer is run.

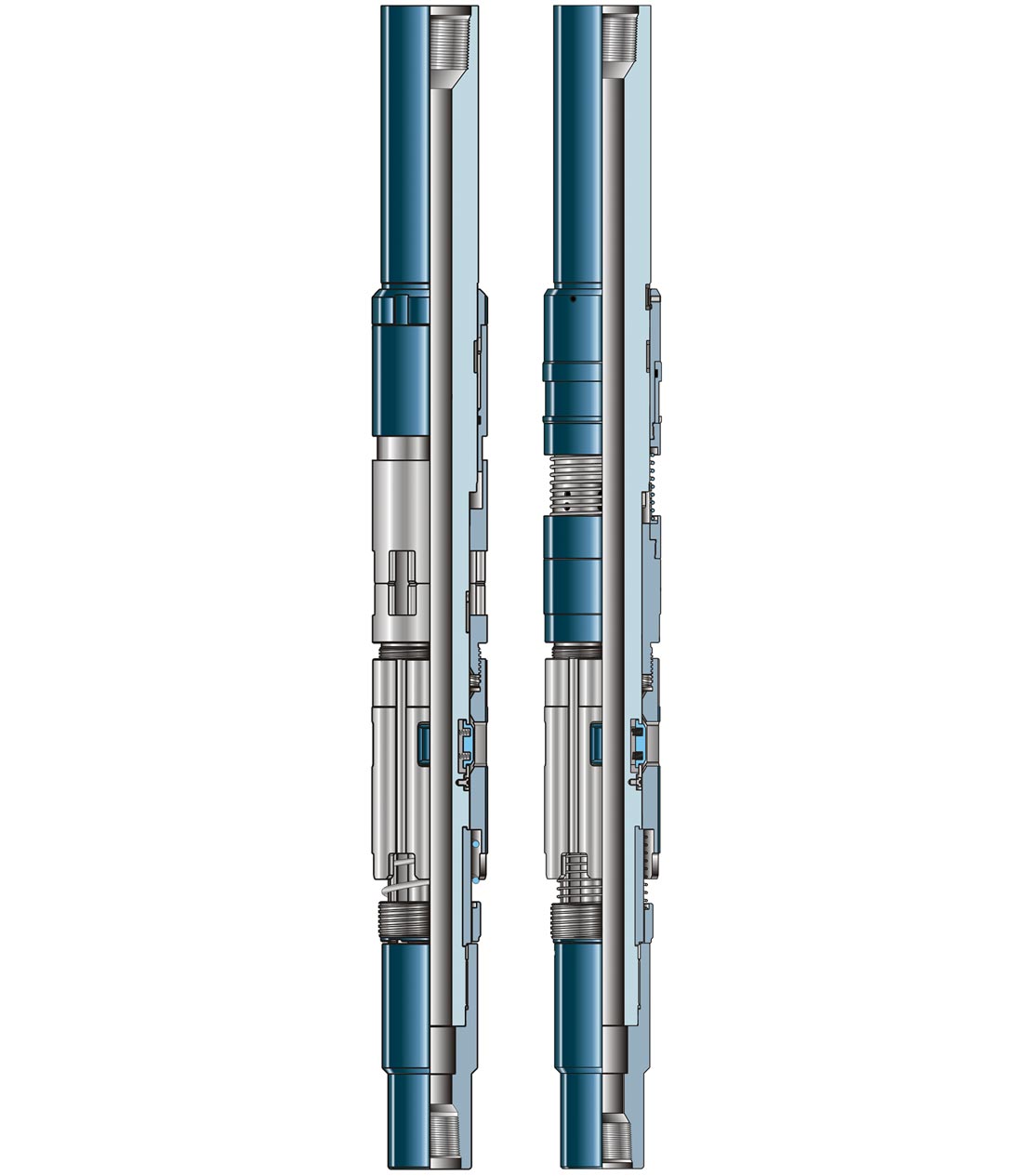

Right Hand Release Running Tool for COLOSSUS CMT and COLOSSUS UNC systems

Optimize liner operations for COLOSSUS liner hanger systems

The RRT is optimized to run mechanically or hydraulically set liner systems that employ

PV-0 high-pressure V0 liner top packer
LTP liner top packer
when installation is across multiple runs, the setting adapter for the cemented or uncemented liner hanger system.
