Offshore Drilling Packages
Quality and performance with integrated solutions
Decrease cost of ownership and maximize returns on your offshore investment.

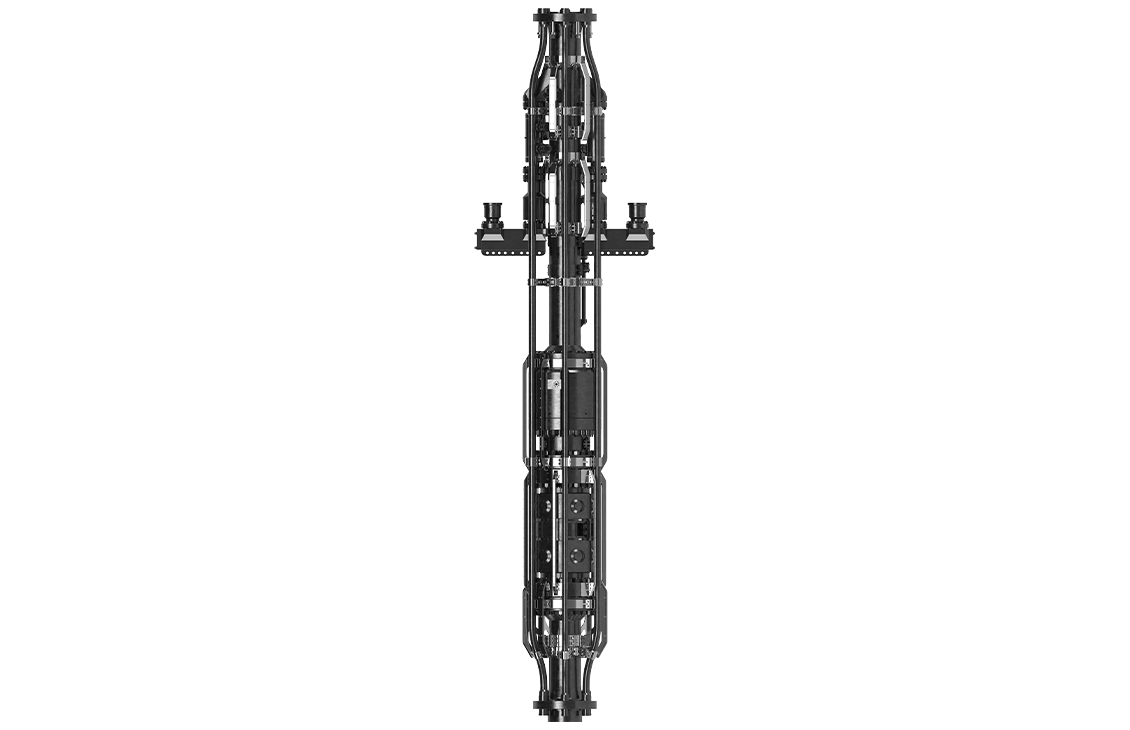

Integrated riser joint (IRJ)
18¾-in submersible rotating control device
Applications
- Drillships and semisubmersible rigs
- MPD, pressurized mudcap drilling, underbalanced drilling
- Riser gas handling
Benefits
- Single OEM supplier for seamless integration between rotating control device (RCD), slimline annular (SLA), flow spool, and surface control system
- Compact and lightweight solution that can be deployed in one piece
- Operational flexibility to configure system as a single joint or three joints
Features
- Single-interface connection for hydraulics and controls
- Goosenecks with breech lock connectors for efficient installation and removal in the moonpool
- Fluid swivels for alignment and connection of flexible hoses while reducing hose torsion load
- Compatibility with all risers
- Optional hands-free gooseneck installation
- Configured with or without integrated choke and kill lines
The IRJ system combines a below tension ring rotating control device (BTR‑RCD), an SLA, and a flowline spool within a single riser joint. This unified configuration is designed for simplified installation below the telescopic joint on drillships and semisubmersible rigs. By integrating these critical components, the IRJ system streamlines offshore well control setup, enhances operational efficiency, and helps ensure safer, more reliable MPD operations.
How it improves performance
The IRJ operates via an advanced surface control system connected to the IRJ with a single umbilical, ensuring seamless and unified management. This integrated approach eliminates potential equipment incompatibility by consolidating control and monitoring functions, offering a single point of contact for all MPD activities. Operators benefit from faster, more coordinated responses to any MPD-related event, streamlining wellsite decision making and enhancing operational efficiency.
How it works
During standard drilling operations, the BTR-RCD establishes a closed-loop circulating system from the riser annulus to the surface equipment, ensuring effective management of wellbore fluids. The integrated flow spool incorporates a dual gooseneck flowline configuration, enabling appropriate routing of wellbore fluids to accommodate the specific requirements of each operation.
When the sealed rotating system (SRS) is not installed or requires replacement, the SLA serves as an alternative active sealing solution to the BTR-RCD, maintaining well control integrity. The IRJ, alongside all connected surface equipment, is managed from a unified control platform through the @balance Control™ MDP systems. This centralized setup enables operators to seamlessly switch between conventional drilling, MPD, or riser gas handling (RGH) operations as needed. The result is enhanced operational flexibility, improved drilling practices, and reduced NPT at the wellsite.
