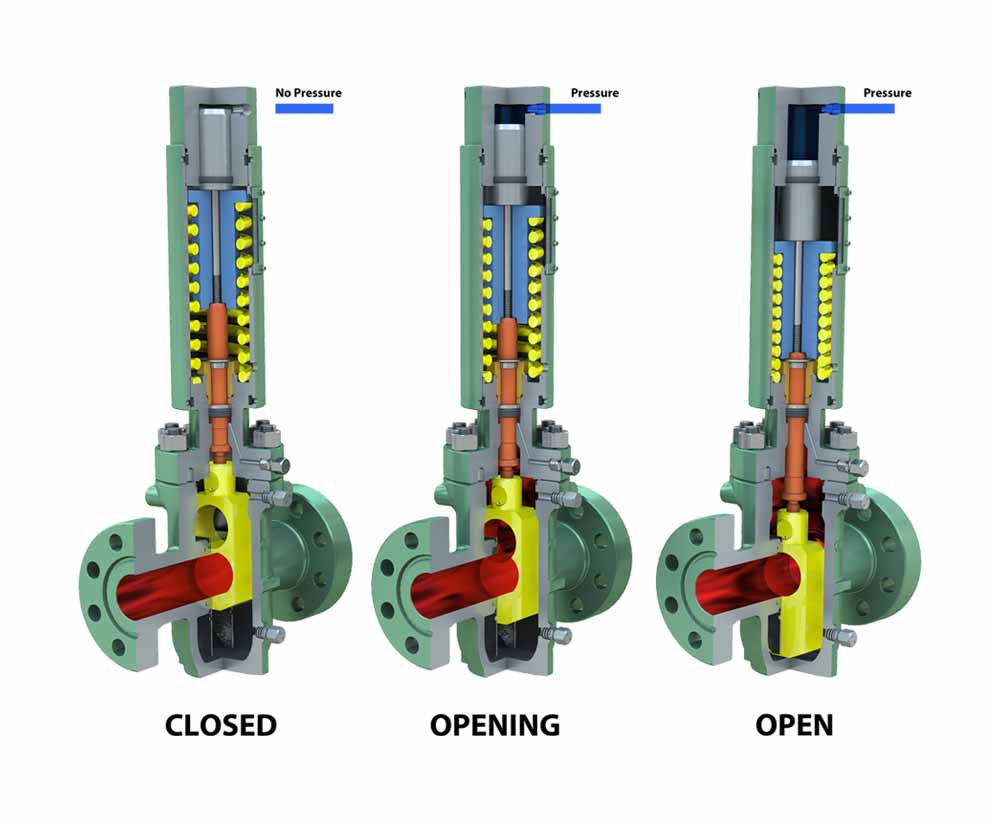

MH70 Series
Hydraulic actuators
The Cameron portfolio of Saf-T-Gard actuators includes the MH70 series hydraulic actuators, which can be used with most manufacturers' gate valves.
Recommended for high-thrust applications required for large-bore and high-pressure valves when there is no gas source or when the well gas is too sour, Saf-T-Gard MH70 actuators are reliable and robust to perform in harsh and remote environments.
- Fail-safe design
- Rising and nonrising stem designs
- Nonpressurized actuator housing
- Superior piston design
- Cameron seal technology
- Fixed drift adjustment
- Corrosion-resistant materials
- Ease of maintenance
- Accessories
Specifications
Actuator
- API Spec 6A actuators for use with 1 13/16- through 9 1/16-in nominal gate valves
- API Spec 6A Appendix F, PR-2 qualified
- Temperature range: –20 to 250 degF [–29 to 121 degC]; other temperatures available
- Standard piston sizes: 3 to 9 in
- Max. operating pressure: 6,000 psi
- Wide range of options and accessories available
Bonnet
- Standard stem and bonnet materials (API material and temperature class dependent)
- PSL 1, 2, 3, and 4 available
- Standard bonnet backseat test port provided
- Standard packing leak indicator port provided
