Affirmed XT
ESP submersible motor
Overview
Bolt
Get all the power you need
Better power density delivers the horsepower required for a wide range of applications.
Signal_Cellular_Alt
Improve ESP up time
Improve ESP up time
Higher temperature ratings reduce shut downs due to motor overheating.
Verified_User
Enhance ESP reliability

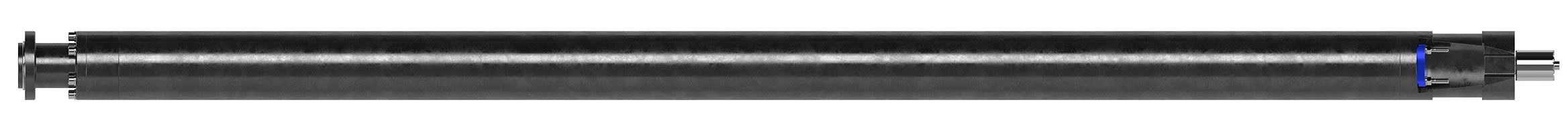

Motor design features improve electrical integrity and reduce the impact of torque and vibration.
Don’t compromise on horsepower…or reliability
Electrical submersible pumping (ESP) systems require motors that deliver consistent horsepower without compromising reliability. The Affirmed XT™ ESP submersible motor provides high power density, robust thermal capability, and proven design features that help extend ESP system run life while reducing downtime in demanding well environments.
Applications
- Unconventional and conventional oil wells
- Bottomhole temperatures up to 325 ˚F (163 ˚C)
Benefits
- Get higher power density per motor with optimized rotor and stator laminations deliver up to 216 HP (400 series) and 450 HP (500 series) true rating
- Improved ESP reliability and run life with high-load thrust bearings, enhanced insulation, and vibration-reducing rotor support help minimize electrical and mechanical failures
- Designed to operate at 400 °F (204 °C) motor temperature and 325 °F (163 °C) bottomhole temperature at full load
Features
- High-load, polymer-coated tilt pad thrust bearing
- Additional stator polyimide insulation
- Shaped rotor bars minimize electrical losses and reduce heat generation

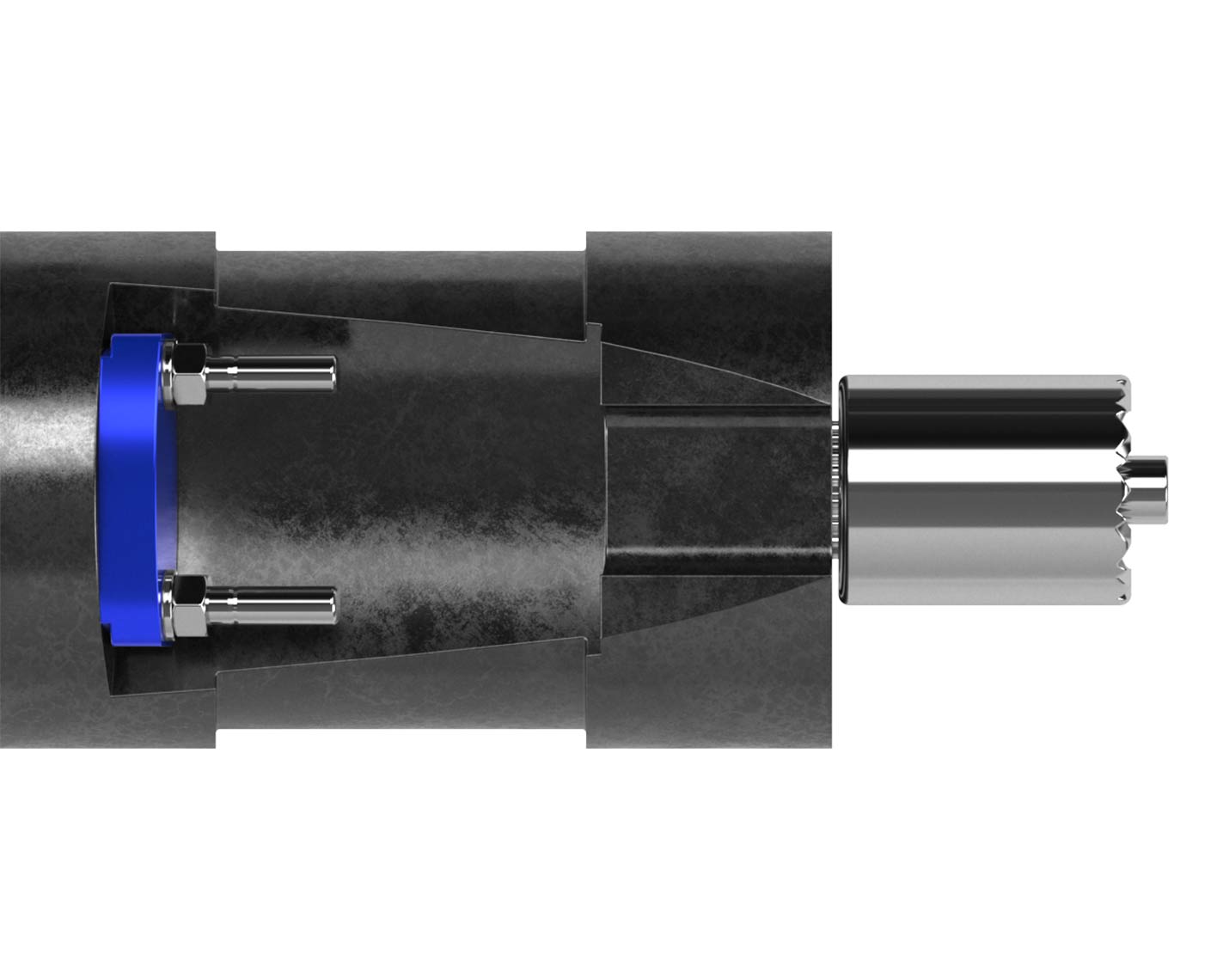

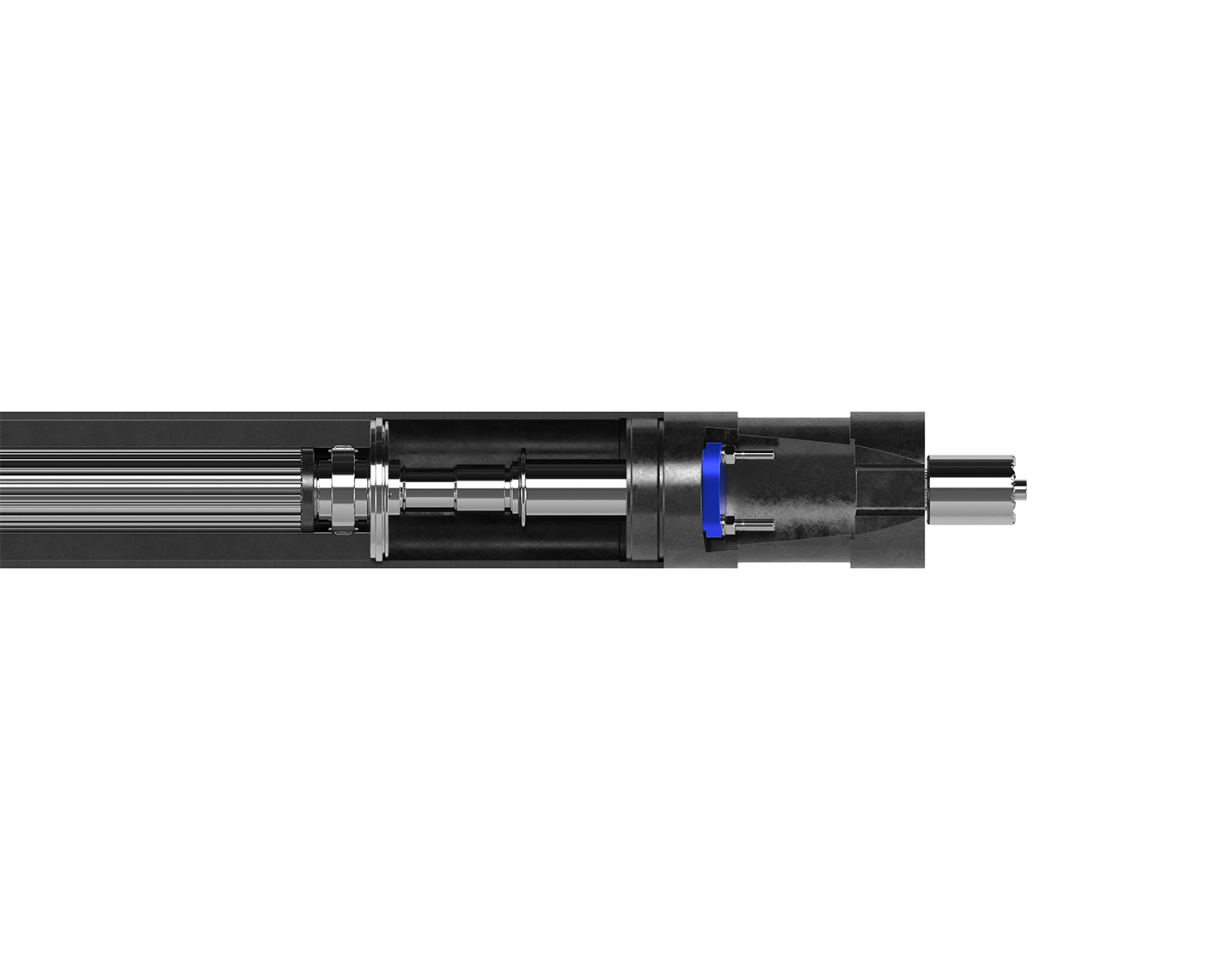

- Robust 5 kV tape-in motor lead connection rated to 450 °F (232 °C)
