Case Study Xcelis Liner Hanger System Streamlines Casing Repair
Robust solution withstands subsequent high-pressure hydraulic fracturing.
Liner Hanger Systems
Hydraulic and mechanical set liner hangers, liner top packers, and expandable systems
Xcelis™
High-performance liner hanger systems
Designed for the most challenging well environments
Liner Tieback
Metal-to-metal, gas-tight system
Solve problems with long casing strings by connecting a liner to a tieback string with full V0-qualified casing
COLOSSUS™
Liner hanger systems
Versatile options to suit various well conditions
Liner hangers and liner top packers to improve completion well construction design and operations
Well trajectory complexity, depth, pressure, temperature, and cost have increased the challenges of well construction design, planning, and operations. Long horizontal laterals in unconventional shale wells, liner drilling, extended reach wells, cemented and uncemented liners require high-performance liner hanger systems capable of: rotation to reach total depth, robust setting mechanisms tolerant of higher solids content, liner top packer sealing elements which can survive run in hole, circulating and cementing at higher rates to lift and homogenize the mud around the liner, all while controlling the equivalent circulating density (ECD) to avoid approaching the fracture gradient and damaging the formation. Once set on depth, seal integrity must be maintained through high-pressure fracturing operations in the case of some uncemented liner applications and years of pressure and thermal cycling during production.
Reduce costs and speed up well construction from deep water to land
Enhance well integrity and reduce costs in well construction with a full line of liner hanger systems, equipment, and accessories for conventional and complex well applications on land or offshore. Backed by a track record of more than six decades, SLB liner hangers, liner top packers, and mechanical and hydraulic set and release running tools are engineered to suspend, support, isolate, seal, and anchor in all types of applications and environments.
With a range of available liner hanger equipment and services, Xcelis™ high-performance liner hanger systems excel in the most challenging environments, and COLOSSUS™ liner hanger systems provide versatile option to suit various well conditions.

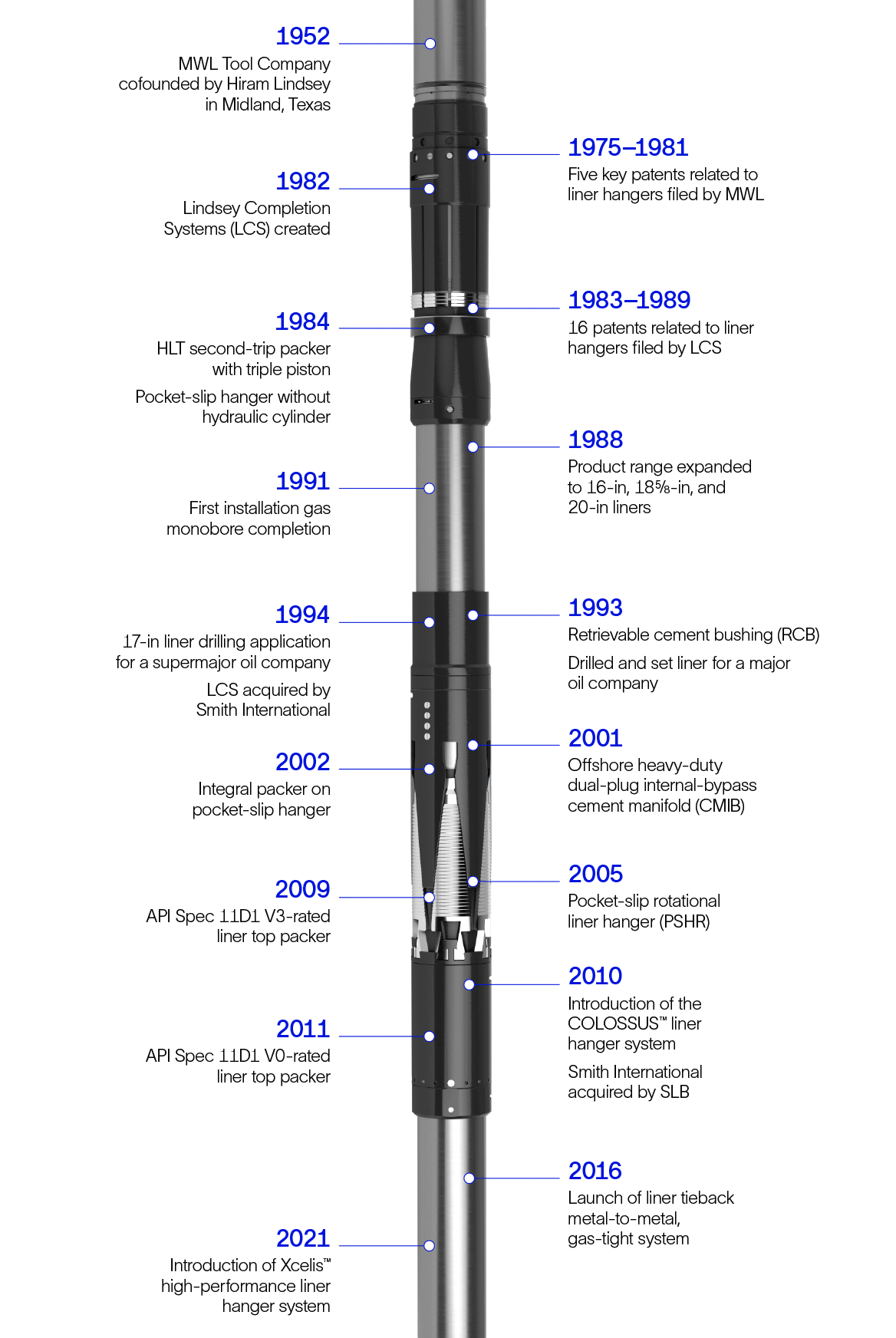

1952
MWL Tool Company develops the liner hanger in Midland, Texas
>25,000
Liner hangers installed
99.5%
Installation efficiency worldwide
Liner hanger system equipment
Enhance well stability and protect the casing with cemented and uncemented liner hanger systems that suit a wide range of well conditions.
Liner Hanger Systems
Liner Hangers
-
HCHR
High-capacity hydraulic rotating liner hangerDeploy heavy and long liners in drilldown applications, even in deep land, deepwater, and HPHT wells, to save time and enable rotation. View
-
HPS
Configurable hydraulic pocket-slip liner hangerRun long and heavy liners with confidence, even in HPHT conditions, with or without liner rotation during running or cementing. View
-
SBRD
Solid-body mechanical-set liner hangerRun light and medium-weight liners in wells where the workstring can be manipulated to set the hanger. View
Liner Top Packers
-
PV-3
Liner top packer with or without hold-down slipsChoose a reliable packer rated to 10,000-psi [68.9-MPa] differential pressure. View
-
PV-0
High-pressure V0 liner top packerRun this V0- or V3-qualified packer above the COLOSSUS CMT liner hanger system in HPHT wells to enable drilldown and rotation. View
Running Tools
-
CRT
Hydraulic collet running toolRun liners and release without rotation—ideal in high-inclination wells. View
-
RRT
Right-hand-release running toolMechanically or hydraulically set liner hanger systems that require high torque to drill the liner. View
-
RCB
Retrievable cement bushingMaintain pressure integrity for liner hanger and liner top packer operations. View
-
RBS Rotational Ball Seat
Simplified running and settingSave time running and setting liner hanger systems, and reduce pressure surges. View
Integral Liner Hanger Packers
-
Long Reach
Integral liner hanger packerFacilitate liner deployment with push, pull, and rotation capabilities ideal for high-temperature and thermal wells. View
Liner hanger expandable systems
Deploy long, heavy liners in challenging conditions—including deepwater, extended-reach, and HPHT wells—with expandable, metal-to-metal sealing for the life of the well.
-
Integrated Liner Hanger Tieback System
Metal-to-metal, gas-tight systemSolve problems with long casing strings by connecting a liner to a tieback string with full V0-qualified casing integrity. View
-
Liner Tieback
Metal-to-metal, gas-tight systemSolve problems with long casing strings by connecting a liner to a tieback string with full V0-qualified casing integrity. View
-
Load Anchor
Metal-to-metal tieback casing anchorUse conventional liner hanger systems with heavier axial loads by deploying an anchor that manages the loads. View
Liner Hangers for High-Temperature Thermal Applications
Manage the most challenging thermal applications—such as geothermal or steam assisted gravity drainage—with robust liner hangers designed for wells undergoing extreme temperatures and temperature cycling.
-
LHP 650
Dual-grip thermal hydraulic-set liner hanger packerSimplify installation with rotation and improve reliability in thermal applications with nonelastomer elements. View
-
RLHP 650
Retrievable dual-grip thermal hydraulic-set liner hanger packerMaximize isolation and flexibility with liner hangers in conditions that exceed temperature and pressure limits for elastomers. View
-
RLTP 650
Retrievable thermal hydraulic-set liner top packerManage liner top debris, rotate into place, and keep fullbore access to the liner in thermal applications. View
-
RSLH 650
Retrievable mechanically-set scab liner hangerReduce remediation costs in damaged thermal wells with a scab liner hanger designed to simplify and optimize repairs. View
-
RSLH-LS
Long-stroke retrievable mechanically set scab liner hangerReduce remediation costs in damaged thermal wells with a scab liner hanger designed to simplify repairs and optimize cementing. View
