Completion Packers
Manage downhole risks with robust sealing technology
Overview
Enhance completion integrity and longevity
Manage flow from the reservoir or injection into the reservoir with BluePack™ production packers and QUANTUM™ gravel-pack packers designed to meet your wellbore or reservoir conditions. From single-packer or tandem-packer configurations to single-tubing, dual-tubing, and ESP, our solutions cover the full spectrum of pressure and temperature ratings.
A simplified naming convention tells you what you need at a glance
The modular architecture of our BluePack packer family simplifies engineering designs. Select the packer that's best suited for your well environment while configuring certain components and subassemblies based on the specific needs or challenges of the well. For example, you might customize the elastomer based on the chemical properties of the fluids that will be in the well.
This standardization not only leads to time and cost savings, it also improves operations by ensuring your employees are trained on a standardized deployment methodology.
The new rationalized naming convention for BluePack packers helps you find the optimal choice for your application, swiftly and painlessly.
Conventional Packers
Meet your requirements for noncomplex applications with low to medium pressure demands—with technical flexibility to match the way you work.
-
QUANTUM
Gravel-pack packer for sand controlSave rig time with a single-trip sand control solution for single- and multizone completions.
-
BluePack RH
Retrievable hydraulic-set production packerUse this economical packer in production or water injection wells to manage up to 5,000-psi pressure differential.
-
MRP
Conventional modular packerIsolate fluids and pressures up to 7,000 psi with an economical hydraulically set, straight-pull shear-release retrievable packer.
-
QL
Conventional sealbore packerSave rig time by running the QL packer as a production packer, gravel-pack packer, or sump packer in standard or H2S service.
-
QLH
Permanent hydraulic-set production packerAchieve fast installation with this robust high-pressure production or isolation packer.
-
QUANTUM HS
Retrievable hydraulic-set sealbore production packerStreamline running and setting in deviated wells with single-trip gravel-pack completions, and use any QUANTUM packer accessories.
Packers for Wells with ESPs or Dual Completions
Enable passage of a second completion string, power for an ESP, or additional parallel ports for injection lines, gas vents, and ESP accessories.
-
BluePack ESP
Retrievable hydraulic-set ESP production packerMultiple feedthrough ports for chemical injection lines, gas vents, electric cables, or ESP accessories.
-
BluePack RH-MP
Retrievable hydraulic-set, multiport production packerFeedthrough packer for intelligent completions or any others where control lines are needed.
-

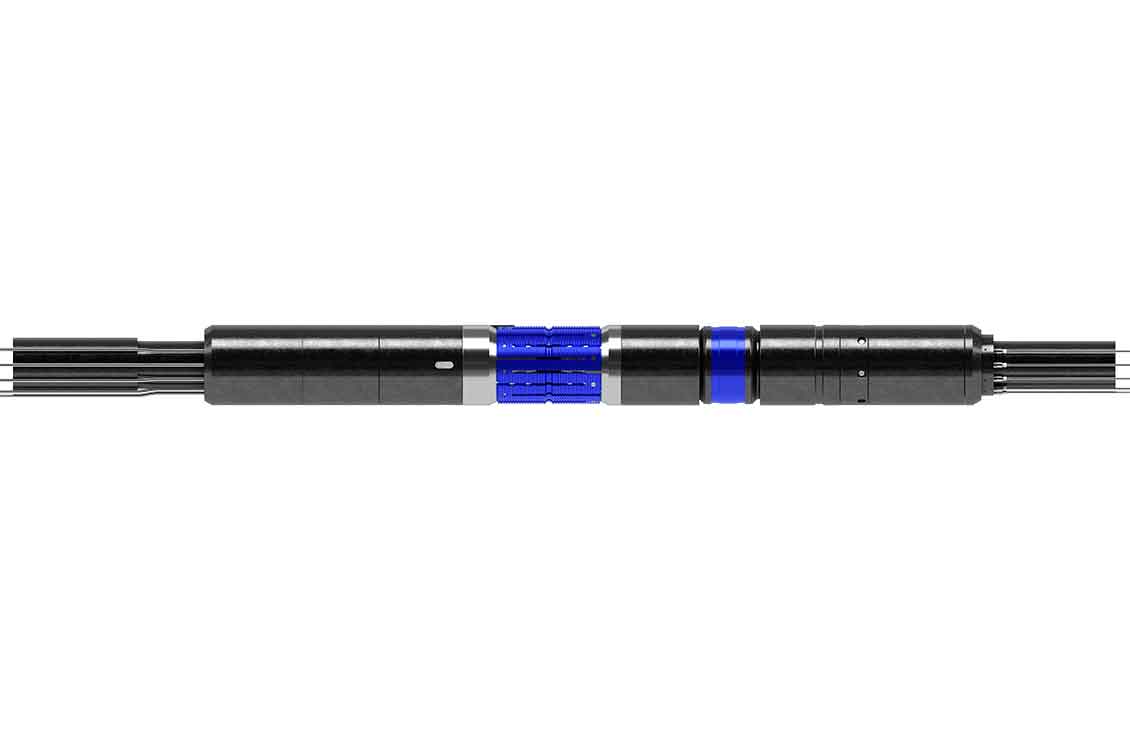

BluePack Ultra RH-MP
15,000-psi retrievable hydraulic-set, multiport production packerIsolate fluids and pressure in wells with intelligent completions using hydraulic and electric lines.
-
MRP-ESP
5,000-psi modular dual-completion packerEnable passage of chemical injection or electrical lines, gas vents, or ESP accessories for cost-sensitive applications.
-
MRP-MP
Modular multiport packersIsolate single- or multizone intelligent completion with tubing-conveyed, retrievable hydraulic-set production and isolation packers.
-
XMP
Premium multiport production packerEnable intelligent completions with multiple ports for hydraulic and electric lines.
Expandable Steel Packers
Remediate a damaged well or casing, or isolate the openhole annulus with high integrity to ensure zonal isolation.
-
External Casing Packer
Robust expandable stainless steel devicesDesigned to set at low pressures to achieve zonal isolation irrespective of hole shape and condition.
-
Frac Packer
High-Pressure Expandable Steel PackerRapidly isolates zones for openhole ball-drop hydraulic fracturing operations.
-
Annular Zonal Isolation Packers
Using expandable steel technologyMinimize costs and NPT with robust expandable steel annular packers for zonal isolation in open and cased holes.
HPHT Packers
Seal reliably even in high pressures and extreme temperatures with robust technology validated for dependable performance under challenging conditions.
-
BluePack Ultra RH-MP
15,000-psi retrievable hydraulic-set, multiport production packerIsolate fluids and pressure in wells with intelligent completions using hydraulic and electric lines.
-
BluePack Ultra PH
Ultrahigh-pressure permanent hydraulic-set production packer15,000-psi V0 packer saves rig time with high running speeds and enables setting multiple packers in the same string.
-
BluePack Max RH
High-pressure retrievable hydraulic-set production packerIsolate fluids and pressures in high-rate production or water injection wells; benefit from configurable release options.
-
BluePack Max PH-V3
High-pressure permanent hydraulic-set production packerSingle-string device that can hold differential pressure from above or below.
-
BluePack Max PW-V3
High-pressure permanent wireline-set production sealbore packerSingle-string device that can hold differential pressure from above or below.
-
QLH
Permanent hydraulic-set production packerAchieve fast installation with this robust high-pressure production or isolation packer.
-
QUANTUM MAX
HPHT gravel- and frac-pack packerMaximize production and improve performance parameters in HPHT gravel and frac packing, production testing, and drillstem testing.
-
ResPack
Swellable bonded-to-pipe packerOptimize multistage fracturing and ICD or sand screen completions with elements that seal the annulus even in high-pressure conditions.
-
XHP
Premium production packerEnhance flexibility in single-string production or injection wells from low to ultrahigh temperatures and pressures.
-
XHP-BB
Hydrostatically set big-bore premium production packerSave rig time in high-rate deepwater and subsea production and injection wells with single-trip completions up to HPHT conditions.
-
XMP
Premium multiport production packerEnable intelligent completions with multiple ports for hydraulic and electric lines.
Sand Control Packers
Ensure zonal isolation for gravel and frac packing applications in conventional and extended-reach wellbores through unconsolidated sands.
-
OSMP
OptiPac service mechanical packerSave time on Alternate Path gravel-pack services with instantaneous packer setting, and enable future water and gas shutoff.
-
QL
Conventional sealbore packerSave rig time by running the QL packer as a production packer, gravel-pack packer, or sump packer in standard or H2S service.
-
QLH
Permanent hydraulic-set production packerAchieve fast installation with this robust high-pressure production or isolation packer.
-
QUANTUM
Gravel-pack packer for sand controlSave rig time with a single-trip sand control solution for single- and multizone completions.
-
QUANTUM HSB
Gravel-pack dual-bore and sealbore packerEnable efficient performance in high-rate production wells, dual-bore completions, and gravel pack completions.
-
QUANTUM MAX
HPHT gravel- and frac-pack packerMaximize production and improve performance parameters in HPHT gravel and frac packing, production testing, and drillstem testing.
-
QUANTUM MultiPort
Gravel-pack multiport packerSimplify onsite feed-through and connection of electric and hydraulic conduits for intelligent completions with gravel packs.
-
QUANTUM HS
Retrievable hydraulic-set sealbore production packerStreamline running and setting in deviated wells with single-trip gravel-pack completions, and use any QUANTUM packer accessories.
-
ResPack Slip
Swellable slip-on packerFacilitate packer installation and inventory for ICD completions, gravel-packing, and acidizing in openhole and cased hole wells.
-
ResPack
Swellable bonded-to-pipe packerOptimize multistage fracturing and ICD or sand screen completions with elements that seal the annulus even in high-pressure conditions.
Service Packers
Optimize production, injection, or cleanup treatments with mechanically set, retrievable packers.
Thermal Packers
Manage the most challenging thermal applications with robust, reliable technology designed for wells undergoing extreme temperatures and temperature cycling.
-
LHP 650
Dual-grip thermal hydraulic-set liner hanger packerSimplify installation with rotation and improve reliability in thermal applications with nonelastomer elements.
-
RLHP 650
Retrievable dual-grip thermal hydraulic-set liner hanger packerMaximize isolation and flexibility with liner hangers in conditions that exceed temperature and pressure limits for elastomers.
Setting Tools and Accessories
Deliver the force required to set packers, plugs, and cement retainers at the ideal depth, even in horizontal and deviated wells.
-
CPST Pressure Setting Tool
Reliably sets bridge plugs, cement retainers, and packers on wireline.
-
Model E Hydraulic Setting Tool
Run and set packers, bridge plugs, and cement retainers on a workstring, production tubing, or coiled tubing.
-
Wireline Adapter Kit
Connects frac plugs and production packers to a wireline assembly.
Remediation Packers
Create an effective barrier in cased hole wells for well abandonment or remedial cementing.
-
BluePlug Max P
High-pressure wireline- or tubing-set bridge plugCreate an effective barrier in cased hole wells for well abandonment or remedial cementing above the plug.
-
BluePlug Max CMR
High-pressure wireline- or tubing-set cement retainerBidirectional barrier in cased hole wells for well abandonment or remedial cementing below the retainer.
