Wireline-Set Retrievable Bridge Plug

Rapid deployment and V3 rating for reliable isolation

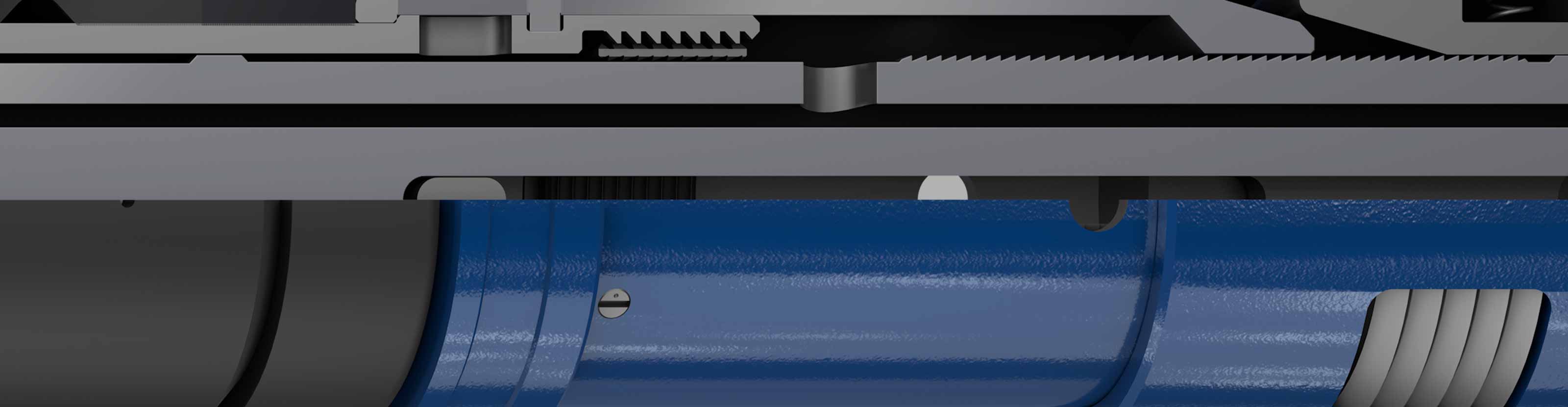

Wireline Set Bridge Plug
Rated up to 5,000 psi [34.5 MPa]
Rated up to 275 degF [135 degC]
Validated to ISO 14310 and API Spec 11D1 V3

Deploy rapidly to save time on testing and remediation operations that require temporary plugging

Compact, quick-running wireline-set retrievable bridge plugs hold pressure from above and below for treating and testing operations. Setting on wireline reduces rig time, risks, and costs as compared with tubing-set devices, but these plugs can be set on tubing if required by deploying an optional hydraulic setting tool.

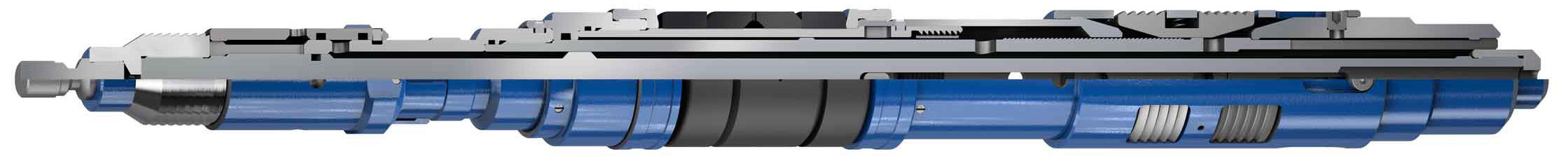

Wireline-Set Retrievable Bridge Plug

Handle high dogleg severity (DLS) with short plugs

The field-proven three-piece packing element plugs the annulus. The bidirectional slips, which are caged to protect them as the plug is run into the well, enable the plug to hold pressure in both directions. The compact design also facilitates running into wells with high DLS.

These bridge plugs equalize the pressure before releasing for retrieval, which eliminates the risk of trapped pressure pushing the workstring out of the well. They can be retrieved with jointed pipe or fitted for retrieval on sand line or coiled tubing (CT).

Rugged alloy steel construction ensures long-term reliability.

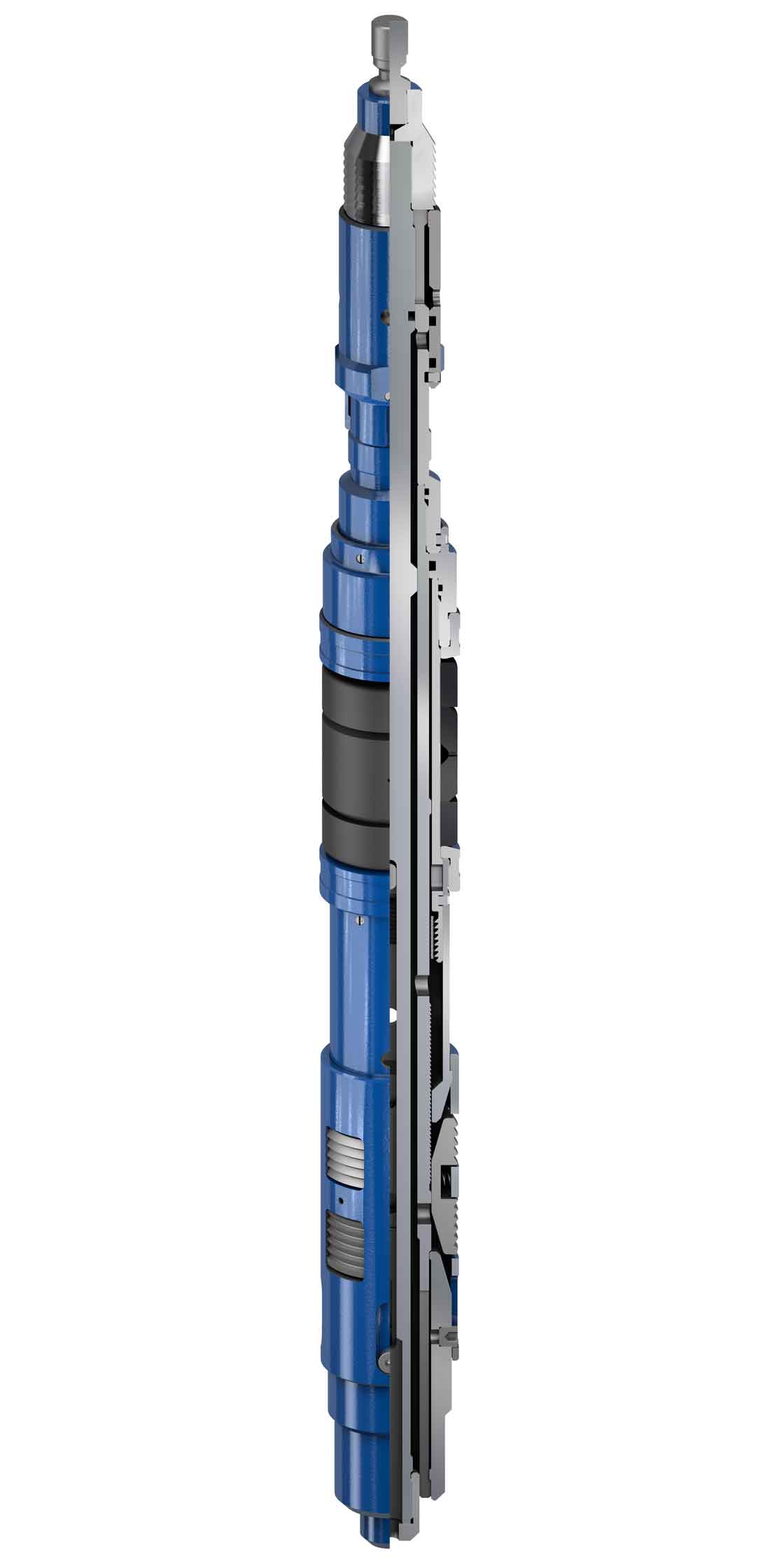

Wireline-Set Bridge Plug
