Anchor–Linear Actuator Tool
ReSOLVE Family instrumented wireline intervention services
Employ controlled high-force linear actuation with high-expansion anchoring capability.
Precise, versatile cutting for various downhole well intervention applications
In all well stages, slot cutting services are critical and required for enabling through-tubing pressure equalization, fluid circulation, and production enhancement for wells completed with sand screens. A high number of cuts may be required in a wide variety of casing types, grades, and potentially extreme downhole conditions.
The ReSOLVE iX™ intelligent extreme wireline intervention service has been customized for an extreme-performance slot cutter application. This instrumented and surface-controlled, nonexplosive mechanical slot cutter is an alternative solution to conventional explosive tubing punchers or other mechanical punchers, expanding the operational capacity of downhole cutting and perforating methods for increasingly complex well designs.

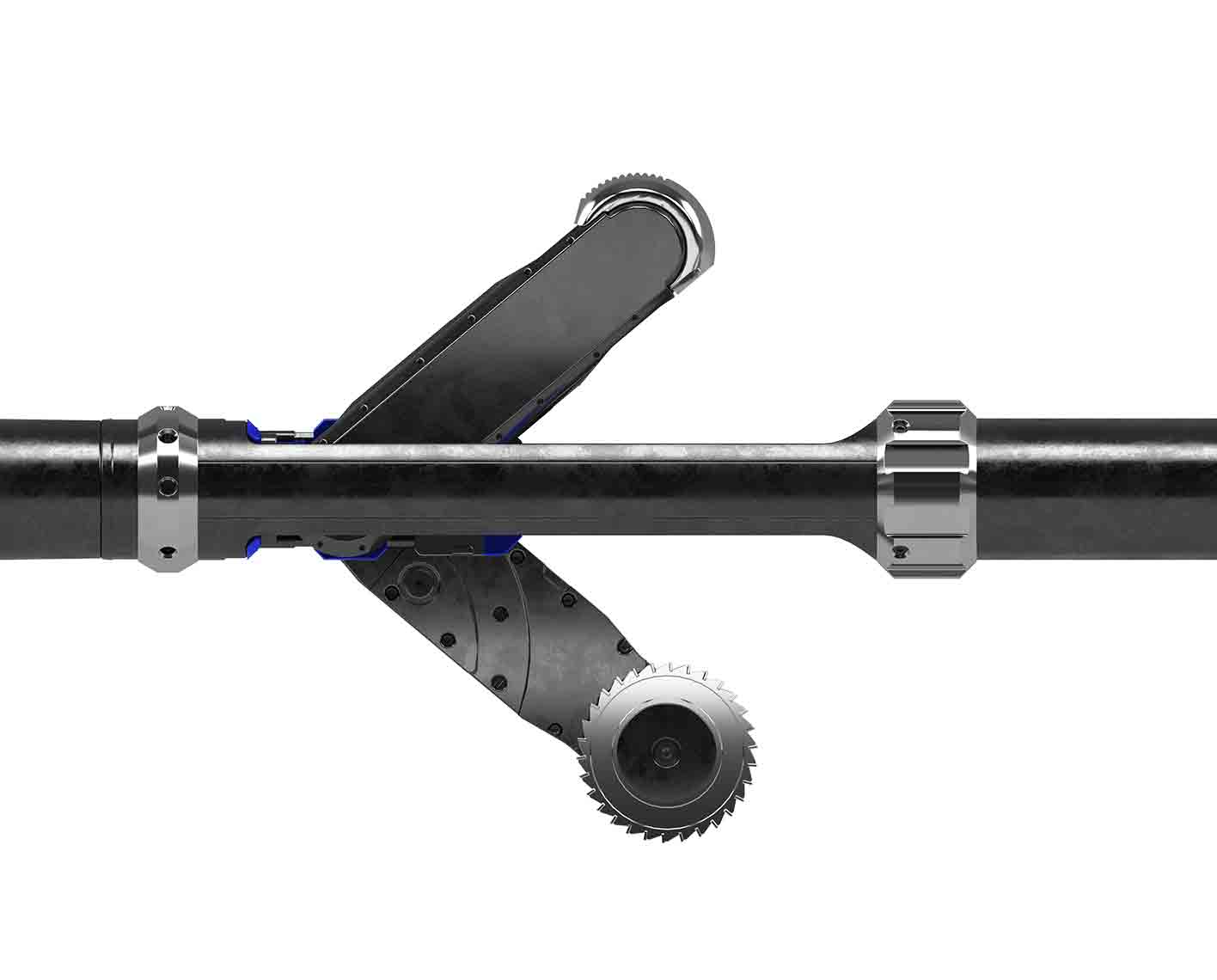

The award-winning ReSOLVE iX slot cutter consists of a scissor-opening assembly with a rotatable cutting blade on one arm, with a fixed anchor to stabilize the other.

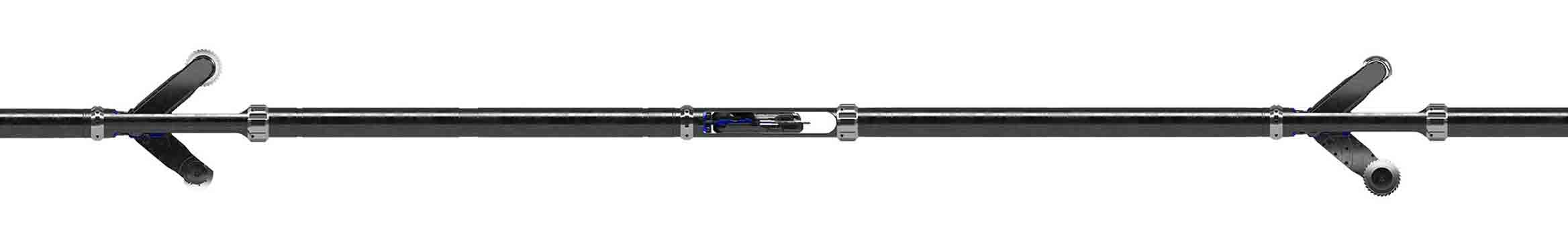

The slot cutter configuration is extremely versatile, letting you combine up to eight slots simultaneously and up to 200 slots in a single run while maintaining cutting efficiency. The tool seamlessly combines with other intervention services, including logging, cleaning, cutting, and milling, as well as other mechanical intervention and production logging tools for combining multiple operations into one run.
The cutting process is controlled by using hydraulic pressure to open the cutter arms, with progress monitored in real time and the maximum depth of cut depending on the selected blade design. Controlling the precise cut depth and confirming completion significantly reduces the risk of damaging control lines or the annular tubing.
ReSOLVE iX Slot Cutter Specifications | |
Output | Slot cut completion confirmation, cutting power and electronics temperature monitoring, cutting blade opening pressure, cutting blade speed measurement, anchor opening force and diameter measurement, head tension, wellbore pressure, wellbore temperature, logging-while-cutting slot, CCL, and optional gamma ray |
Tubing ID, min. | 3.5 in [88.9 mm] |
Tubing OD, max. | 7 in [177.8 mm] |
Slot width | 0.12 in [3.05 mm] |
Pressure rating | 20,000 psi [137 MPa] |
Temperature range | 32 to 350 degF [0 to 177 degC] |
Restriction, min. | 2.75 in [69.85 mm] |
Tool OD for tubing thickness <0.254 in [<6.45mm]* |
2.68 in [68.07 mm] |
Length** | 34.3 ft [10.45 m] |
Weight** | 296 lbm [134.3 kg] |
Tension | 25,000 lbf [111200 N] |
Compression | 25,000 lbf [111200 N] |
Slot cut length | Configuration and pipe dependent |
Certifications | NACE MR0175 compliant for HշO and COշ resistance. API RP 67 compliant for explosives operations |
Fishing capability | Optional 2 1/8- or 3 1/8-in [53.98- or 79.38-mm] WIReD™ wireline inline release device above and below tractors |
Special applications | Qualified for up to 200 slot cuts per run; custom applications available upon request for high-strength pipe, higher number of slot cuts per run, and slot extension for larger flow areas |
All values are for standard specifications and are subject to change without notice. A dedicated engineering team is available for customizing tools to address your challenges.
* 3.2 in [81.28 mm] for tubing thickness >0.255 in [>6.48 mm].
** Length and weight depend on integrated service configuration. Applications outside the defined operating envelope should be shared with an SLB representative for risk assessment.
