BluePack RH-MP

Retrievable hydraulic-set, multiport production packer

minus

Minimize costs with economical multiport packers

BluePack RH-MP™ retrievable hydraulic-set, multiport production packer is a cost-effective feedthrough packer for use in intelligent completions or any other type of completion where control lines are needed. The mandrel can be delivered in several configurations that will suit most application requirements for feedthrough size and number.

Rated to 5,000 psi [34.5 MPa]
Rated up to 350 degF [177 degC]
Designed and validated in accordance with ISO 14310 and API Spec 11D1 V3

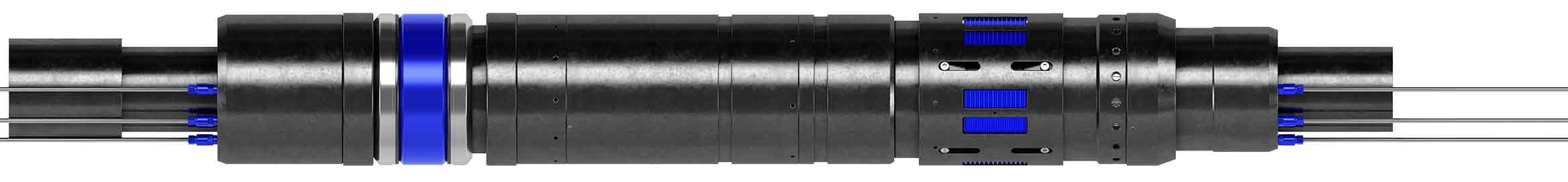

BluePack RH MP shown from the side
BluePack RH-MP retrievable hydraulic-set, multiport production packer.
  • Intelligent completions
  • Single-trip completions
  • Multizone wells
  • Vertical or deviated wellbores

Maximize completion efficiency

The BluePack RH-MP packer increases completion flexibility with multiple feedthrough ports for control lines. Simple setting and retrieval options reduce rig time and costs; hydraulic setting eliminates tubing movement during installation, improving sealing reliability.

The packer is installed with the completion tubing and set by applying pressure to the string. Retrieval is accomplished with upward pull on the tubing. Set at the factory to a standard value, the packer’s shear-release mechanism can be adjusted in the field before installation. When the tension on the tubing string exceeds the predetermined value of the shear screws, the slips disengage the casing and the element relaxes for retrieval.

Absence of mandrel movement means that you can set multiple packers at the same time. Because the sealing element is located above the slips, the risk of debris hindering packer retrieval is minimized.

Field-proven standard configurable packers

The modular architecture of our BluePack™ production packers simplifies engineering designs across the entire family.

You can select the packer that’s best suited for your well environment while configuring certain components and subassemblies of the packer based on the specific requirements or challenges of the well. For example, you might customize the elastomer based on the chemical properties of the fluids that will be in the well.

This standardization not only improves lead times and costs, it also improves operations by ensuring that employees are trained on a standardized deployment methodology.

  • No tubing movement while setting
  • Field-adjustable shear release
  • Choice of HNBR or Aflas® element
  • Availability in API standard quality grades Q1, Q2, and Q3
