CPST Pressure Setting Tool
Reliably sets bridge plugs, cement retainers, and packers on wireline.
Connects frac plugs and production packers to a wireline assembly

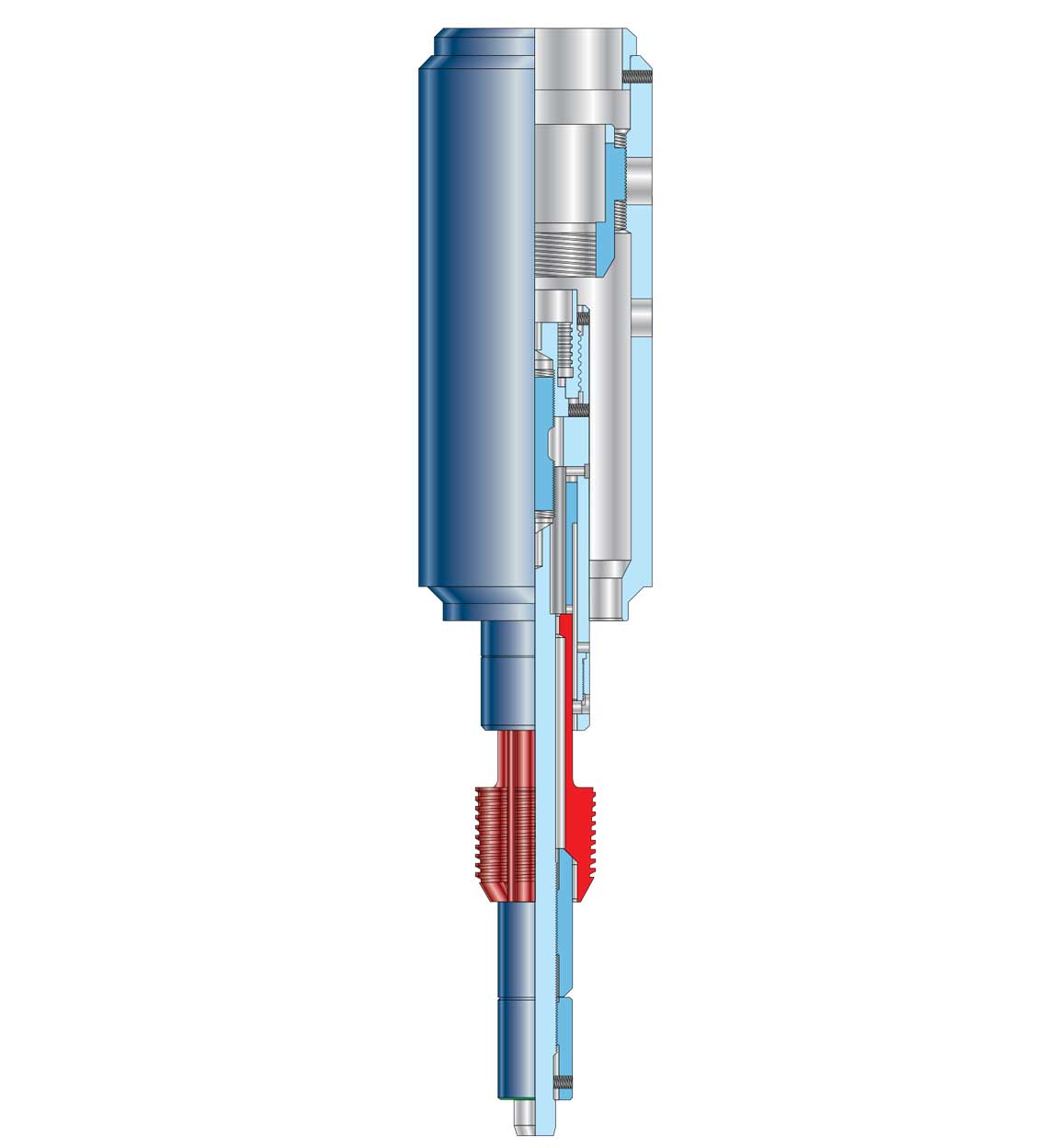

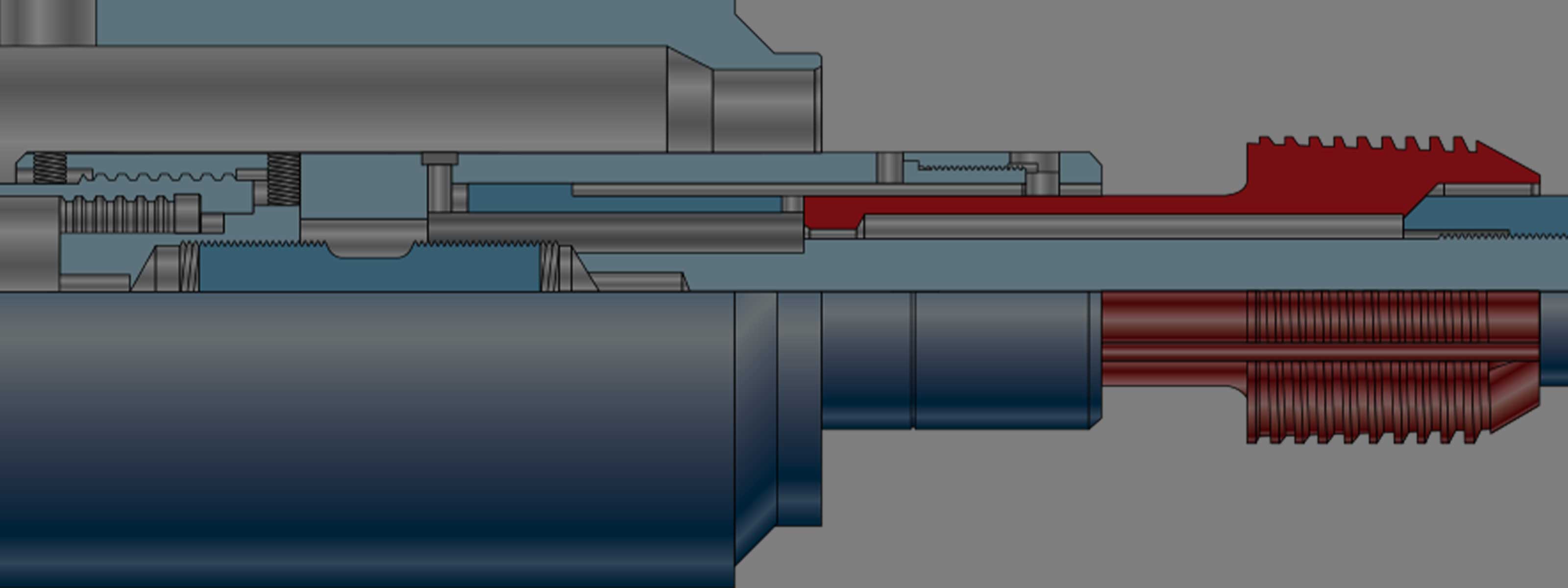

The wireline adapter kit is used to connect the MDF and MDFBB permanent production packers and similar equipment to a wireline pressure setting assembly or a hydraulic setting tool.
Actuation of the explosive applies pressure to the adapter sleeve, setting the packer. At a predetermined force, a tension stud parts, releasing the colletstyle running nut from the packer.
The adapter kit is retrieved with the wireline and pressure setting assembly.
