QL

Conventional sealbore packer

Download PDF
Contact an Expert
Related Documents
Rated to 10,000 psi [69 MPa]
Rated to 325 degF [163 degC]
Validated to ISO 14310 and API Spec 11D1 V3

Run in rapidly to save on rig time

Designed for use as a production, gravel-pack, sump, or isolation packer, the QL conventional sealbore packer is a wireline- or hydraulic-set permanent packer you can trust when running in at high speed to reduce rig time for installation and setting.

Run the packer on wireline or with a hydraulic-setting tool on drillpipe or tubing. Dual-opposing one-piece slips grip reliably, and a full-circle, solid-metal backup system prevents element extrusion.

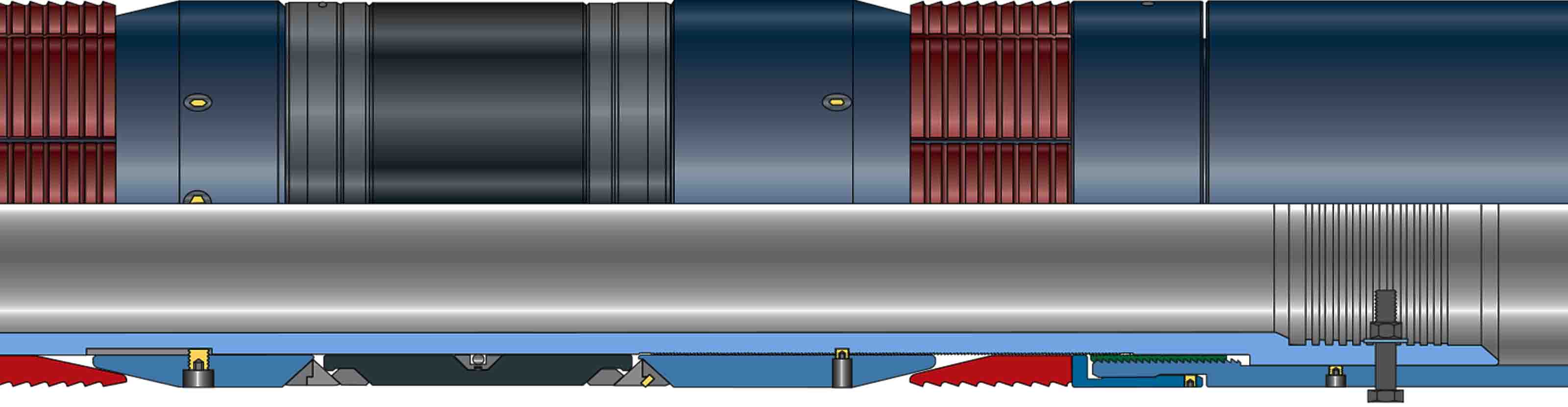

QL Conventional Sealbore Packer

Attach accessories if required

The tough, large-bore packer is suitable for standard or H2S service and is available in several alternate material configurations to withstand virtually any downhole environment.

A full line of accessories is available, and the pin-down configuration facilitates attachment of accessories.

QL Conventional Sealbore Packer
View All

Catalog Packers Catalog

Set, seal, and retrieve with confidence.

Product Sheet Bottom Assemblies for QL-Series Packers

Provide a fit-for-purpose bottom on packer.

Product Sheet QL Conventional Sealbore Packer

Field-proven, large-bore permanent packer used as a production, gravel-pack, or sump packer and designed for risk-free and fast running on wireline or with a hydraulic-setting tool on drillpipe or tubing.
