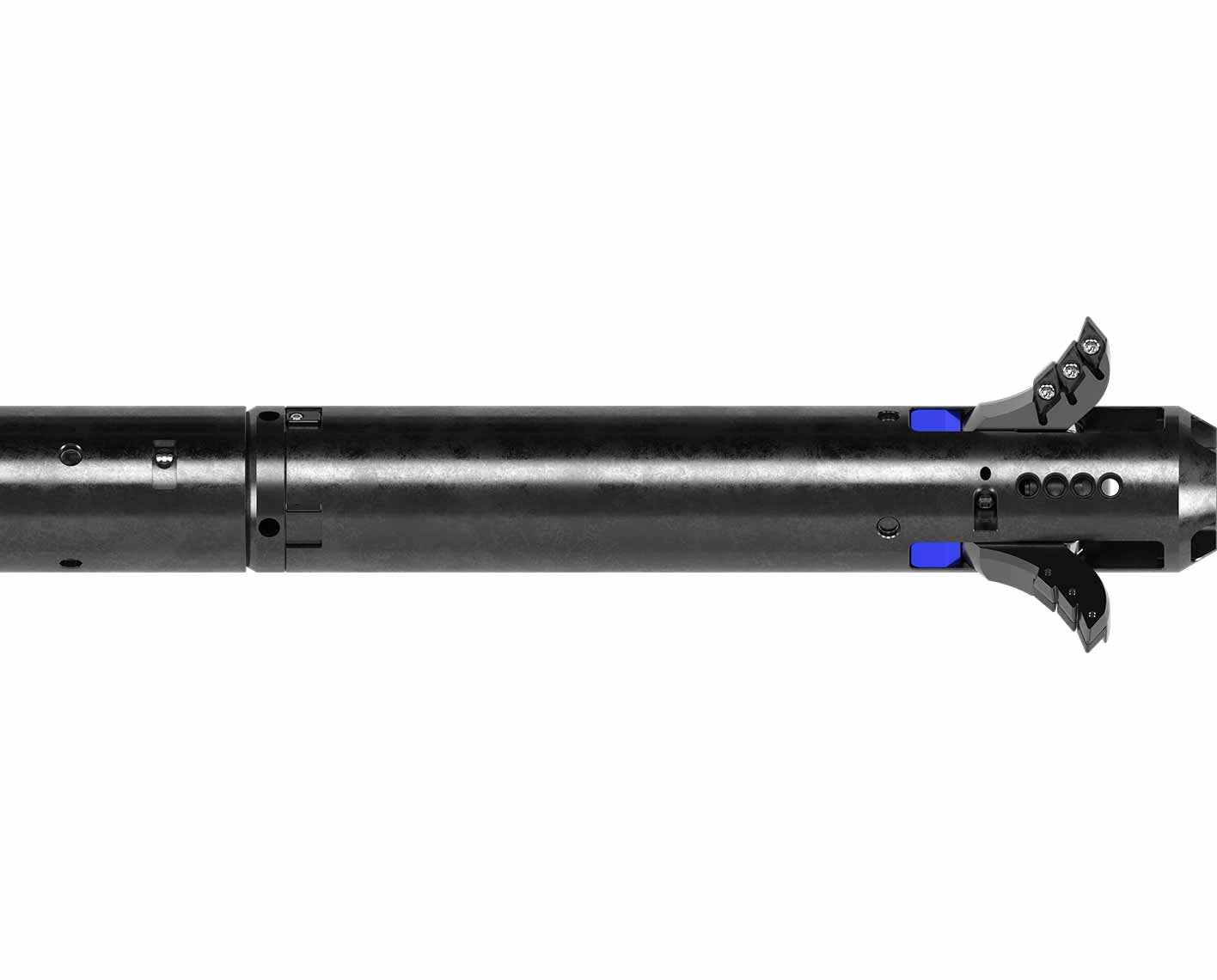

ReSOLVE iX tubing cutter

Precise, reliable, safer mechanical tubing cutting

Overview

Separation of completion tubing is a critical stage in many intervention campaigns. Often, the objective is to establish annular circulation immediately prior to the cut.

The ReSOLVE iX™ intelligent extreme wireline intervention service now offers an automated tubing cutter for intervention scenarios that delivers fully automated, depth-accurate, active CCL-based mechanical cuts even in complex completion profiles.

This fully instrumented and surface-controlled tubing cutter can operate at great depths and in challenging environments—without the logistics and HSE challenges associated with explosives. The tubing cutter’s knife-edge design is debris tolerant, stick resistant, and capable of cutting under a broad range of axial and torsional loadings.

Combined with the TuffTRAC iX™ intelligent extreme wireline tractor and with built-in self-anchoring and self-centering features, the ReSOLVE iX tubing cutter can reach multiple targets at any deviation, even in extreme or sour environments. Along with the ReSOLVE iX slot cutter, the combined platform can be used to establish circulation and separate tubing in a single descent.

Applications

Tubing or completion recovery
Cutting releasable packers in complex well geometries

Benefits

Monitors cutting progress and confirms tubing separation in real time

Delivers precise cut depth and radial penetration

Supports multiple cuts per run across multiple tubing sizes

Tolerates debris

Resists sticking

Cuts during compression

Features

Active CCL to control cut depth
Full suite of downhole sensors to measure pressure and temperature while cutting
Automated dynamic cutting program based on preprogrammed tubing properties and downhole cutting environment
High-force and high-expansion self-anchoring for unexpected pressure responses
Self-centralizing for cutting at any depth or deviation
Sour service qualification
Large expansion ratio for anchoring in tubulars below restrictions
Fishing capability with optional 2 1/8-in WIReD™ wireline inline release device
Built-in release system at the cutting head
Wireline conveyance

ReSOLVE iX tubing cutter toolstring with centralizer and anchor.

Tech Specs

ReSOLVE iX Tubing Cutter Specifications
Output	Wellbore pressure and temperature, cutting power, cutting knife opening pressure and rotation velocity, head tension, cut completion confirmation, casing collar locator (CCL), optional gamma ray, logging while cutting
Tubing OD, min.	3 1/2 in [89 mm]
Tubing OD, max.	5 1/2 in [140 mm]
Borehole fluid	Any liquid
Pressure rating	20,000 psi [138 MPa]
Temperature rating	350 degF [177 degC]
Restriction, min.	2.5 in [25.4 mm]
Tubing ID, min.	2.625 in [66.7 mm]
Tool OD	2.375 in [60.3 mm]
Length*	24.7 ft [7.53 m]
Weight*	222 lbm [100.7 kg]
Tension	20,000 lbf [88,964 N]
Compression	20,000 lbf [88,964 N]
Certifications	NACE MR0175 compliant for HշS and COշ resistance

All values are for standard specifications and are subject to change without notice. A dedicated engineering team is available for customizing tools to address your challenges.
* Length and weight depend on integrated service configuration. Applications outside the defined operating envelope should be shared with an SLB representative for risk assessment.
