Peak Family DJD FRC pulling tool

Efficient external fish neck recovery in high‑cost well interventions

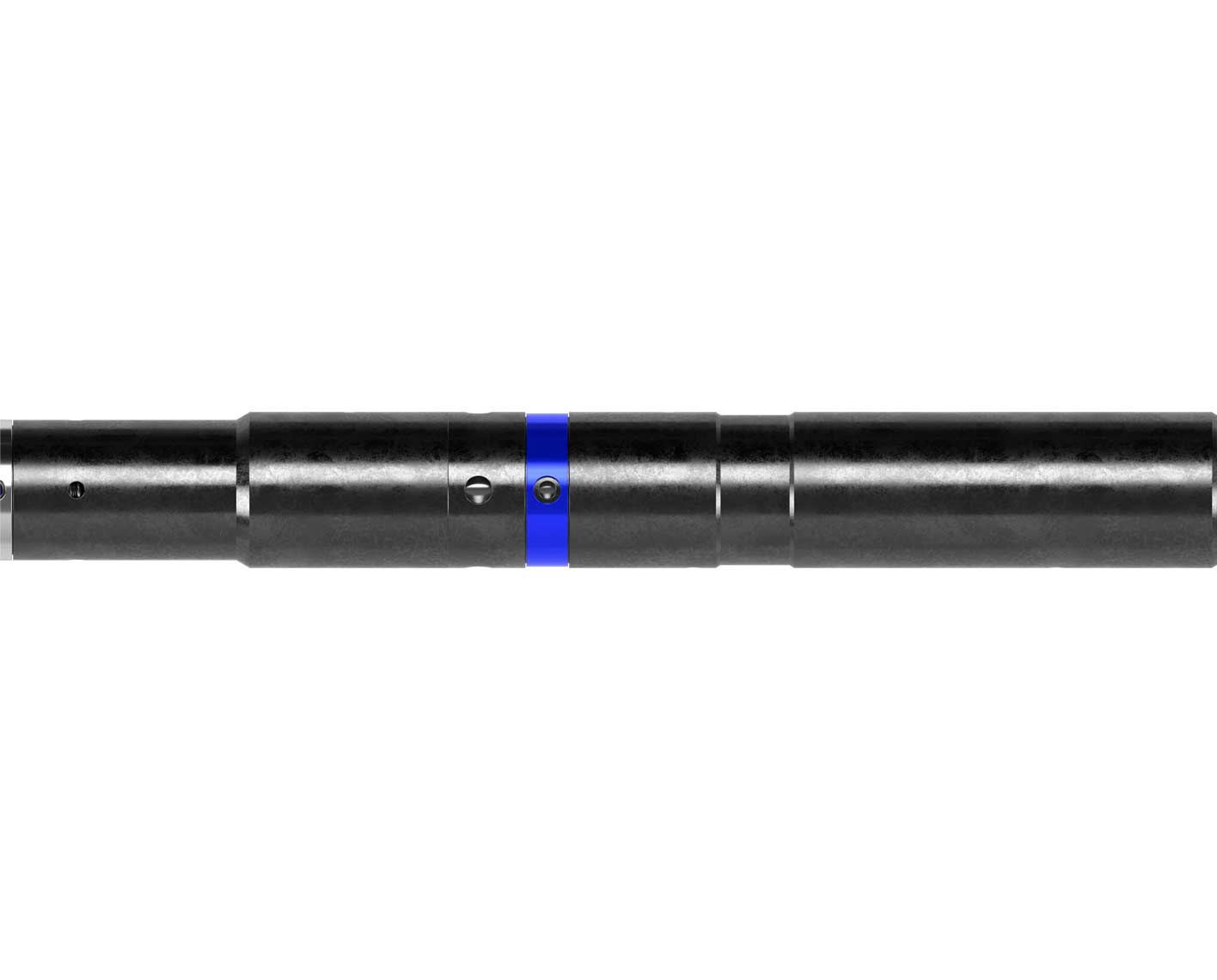

3D render of Peak Family DJD FRC pulling tool
minus

Ensures smooth and efficient fishing operations in high‑cost well interventions

Designed for external fish neck recovery, the double jar down full radial contact (DJD FRC) pulling tool of the Peak Family™ flow control and well intervention tools enhances efficiency in mechanical slickline interventions, especially during high-cost well and gas lift operations. With dual jarring capability and robust construction, this tool eliminates the need for separate down- and up‑jarring tools. This reduces inventory, simplifies logistics, and improves operational uptime.

Tool components are quick to redress, allowing fast replacement of shear pins, screws, and springs. Specialized core options and bottom subs make the tool adaptable to a wider variety of applications, helping reduce NPT and increase versatility across operations.

  • High-cost well interventions
  • Gas lift operations
  • Combines multiple tools into one to reduce inventory
  • Enables strong jarring down and up without tool damage
  • Redresses quickly for simplified maintenance
  • Offers two shear pin sizes for greater operational range
  • Prevents premature pin shearing to minimize NPT
  • Supports gas lift and cable head jobs with specialized cores
  • Releases fingers from the fish neck quickly and easily
  • Accommodates larger-ID tubing with optional bell guide bottom subs
  • Provides a heavy-duty option for demanding operations
  • Dual jarring (down and up) for effective fishing
  • Quick-exchange shear pins, screws, pins, and springs
  • Two shear pin size options for adaptability
  • Specialized cores for gas lift and cable head compatibility
  • Optional bell guide bottom subs for large-ID tubing
  • Heavy-duty DJD FRC variant for tough conditions

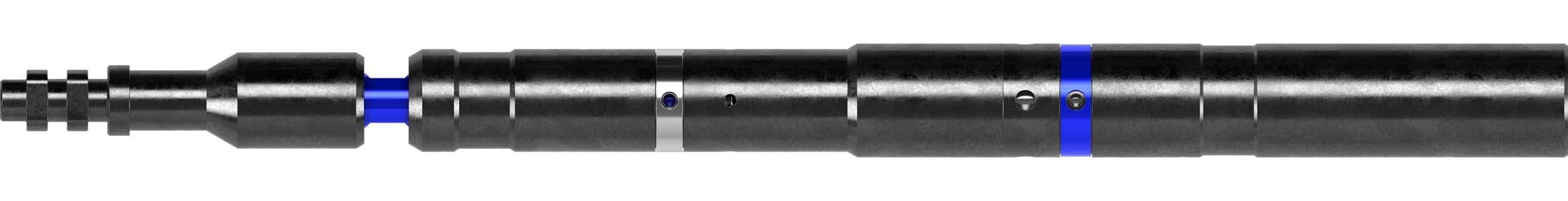

3D render of Peak Family DJD FRC pulling tool
Peak Family double jar down full radial contact (DJD FRC) pulling tool.

Efficient jarring mechanism

During operation, the tool enables repetitive downward jarring to latch onto the fish without prematurely shearing the jar‑down‑to‑release pin. If the fish cannot be recovered, the tool shears the upper pin in the DJD adaptor, allowing subsequent downward jarring to release the pulling tool safely.

Adaptability for challenging conditions

The tool’s innovative mechanism ensures functionality and adaptability even in demanding scenarios. Optional bell guide bottom subs and the heavy-duty variant enhance its capability to handle larger-ID tubing and challenging conditions.

Streamlined maintenance

Quick-exchange components, including shear pins, screws, and springs, simplify maintenance and reduce downtime. This design ensures that the tool remains operational and efficient, even during repetitive use.

By integrating these advanced features, the DJD FRC pulling tool delivers reliable performance, reduces NPT, and ensures smooth and efficient fishing operations in high‑cost well interventions.
