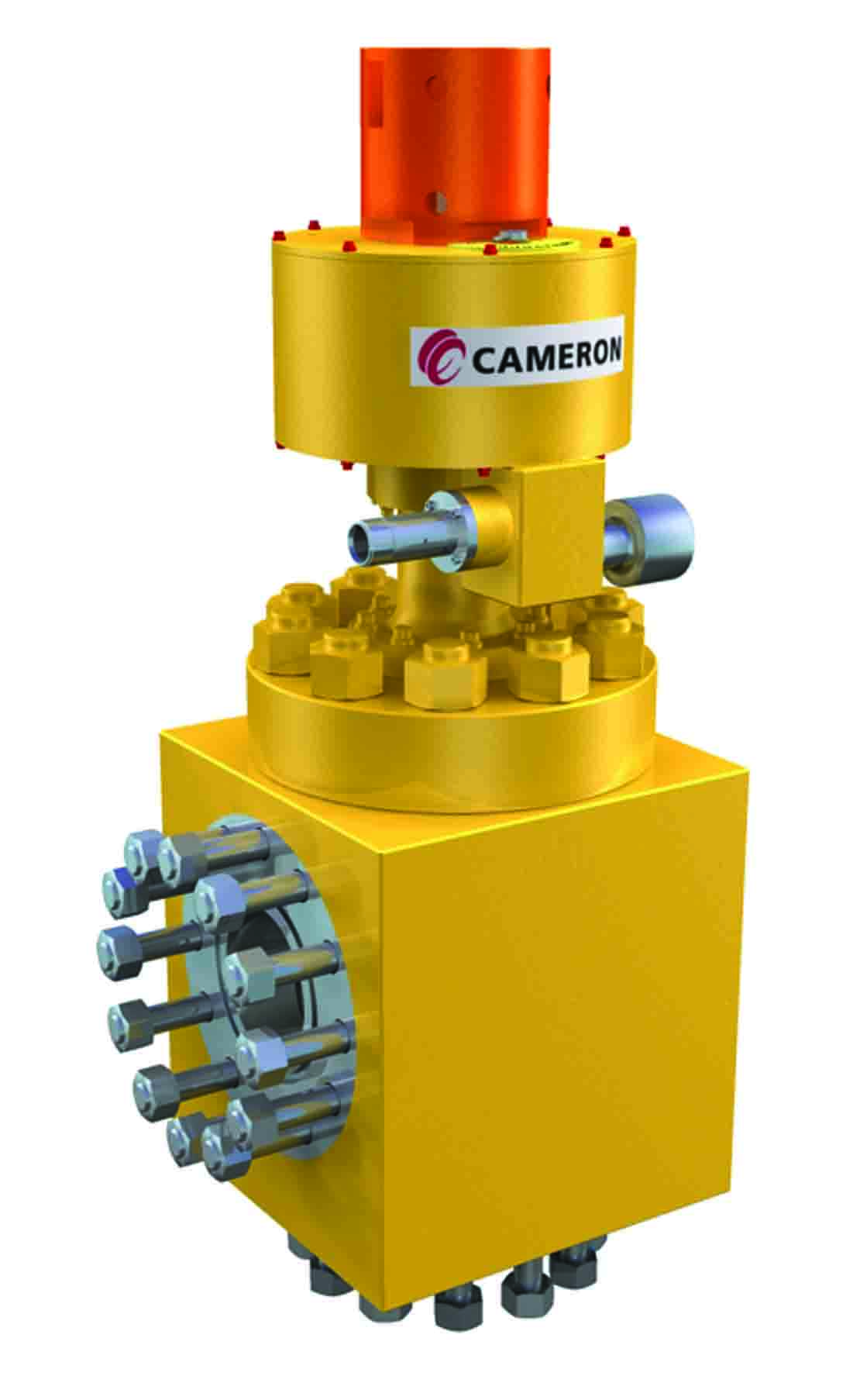

Nonretrievable Chokes
Proven, reliable choice
Cameron’s first nonretrievable subsea choke was installed in 1975, and with more than 800 of these rugged chokes installed to date, they continue to demonstrate that they are a proven, reliable choice.
Permanently mounted to a subsea structure such as a Christmas tree or manifold, our subsea choke body can also be incorporated into a retrievable flow control module or choke bridge, which can house flowmeters and instrumentation devices. To maintain or replace the choke or trim, the flow control module or choke bridge is retrieved. These Cameron chokes are usually fitted with a hydraulic stepping or stand-alone DC electric actuator, but can also be adjusted by an ROV or diver.
| Specifications | |
| Pressure ratings |
15,000 psi |
| Water depths |
9,800 ft |
| Temperatures range |
–50 to 350 degF [–46 to 177 degC] |
| Trim sizes |
2–8 in |
| Controllable Cv |
1–1,000 |
| Actuation |
Cameron SLCA hydraulic stepping linear choke actuator (3,000- or 5,000-psi supply), RD250 ROV gearbox, or electric actuator |
| Position feedback |
Linear variable differential transformer analog (4 to 20 mA) or digital CANBus |
| Service life |
20 years (excluding wearing trim elements) |
| Certification |
API Specs 6A and 17D, ISO 10423 and 13628-4, NACE MR0175, NORSOK |
| Model |
Description |
Nominal Size, in† |
Max. Working Pressure, psi |
Max. Cv‡ |
Flow Curve Type |
| CC30FNR |
Gas lift |
3 |
5,000 |
13.6 |
Plug and cage, equal percentage |
| Production |
3 |
5,000 |
86 |
Plug and cage, linear |
|
| Production |
3 |
5,000 |
64 |
Plug and cage, equal percentage |
|
| CC40FNR |
Production |
4 |
5,000 |
256 |
Plug and cage, linear |
| Production |
4 |
5,000 |
206 |
Plug and cage, equal percentage |
|
| CC40FNR 10K |
Production |
4 |
10,000 |
256 |
Plug and cage, linear |
| Production |
4 | 10,000 |
206 |
Plug and cage, equal percentage |
|
| CC40FNR HP |
Production |
4 | 15,000 |
130 |
External sleeve, equal percentage |
| CC40FNR |
Water injection |
4 |
5,000 |
76 |
3-in, three-stage, multistage |
| CC50FNR 10K |
Production |
5 |
10,000 |
428 |
Plug and cage, linear |
| CC60FNR |
Production |
6 |
5,000 |
544 |
Plug and cage, equal percentage |
| CC80FNR |
Production |
8 |
7,500 |
1,000 |
Plug and cage, linear |
† Nominal size refers to the seat nominal diameter, not the inlet or outlet end connection size.
‡ Reduced-capacity and custom trims available.
