XHP-BB

Hydrostatically set big-bore premium production packer

Download PDF
Contact an Expert
Related Documents
Rated to 10,000 psi [69 MPa]
Rated to 400 degF [204 degC]
Validated to ISO 14310 and API Spec 11D1 V0

Minimize rig time with fewer interventions

Designed for high-rate production and injection wells, the XHP-BB hydrostatically set big-bore premium production packer is qualified for low-temperature use in subsea injection wells, as well as for high-pressure, high-temperature (HPHT) environments.

The packer is available with premium metallurgy and elastomers to withstand harsh conditions and is designed for closed systems, such as cased hole wells before perforating and openhole completions isolated by a formation isolation valve.

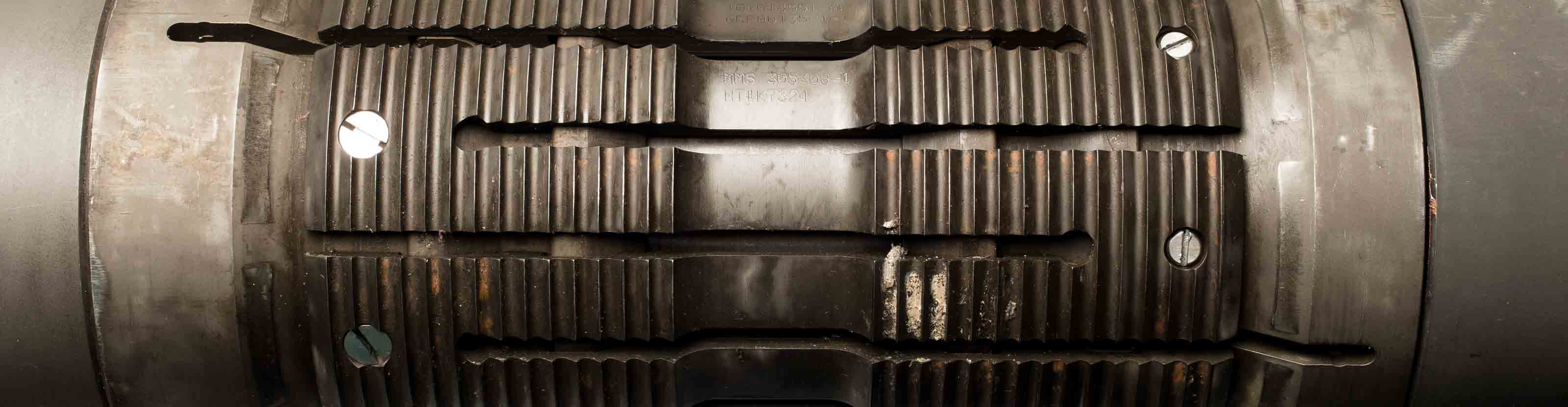

XHP-BB hydrostatically set big-bore premium production packer

Optimize single-trip completions

Because the packer is hydrostatically set, it is ideal for interventionless single-trip completions. Optionally, it can be fully set by placing a tubing plug below it and applying pressure. The hydrostatic setting mechanism includes a built-in contingency, and the leak-free hydrostatic chamber ensures packer activation at the proper depth.

The packer's cut-to-release feature also enables multiple through-tubing interventions without the risk of unsetting the packer.

XHP-BB hydrostatically set big-bore premium production packer
View All

Catalog Packers Catalog

Set, seal, and retrieve with confidence.

Tech Report Operator Maximizes Gas Production, Saves 6 Hours per Well with XHP-BB Big-Bore Premium Production Packer

V0-qualified, hydrostatically set big-bore production packer ideally suited for high-rate gas and faster, interventionless installation in offshore wells.

Brochure Packers

The heart of the completion.

Product Sheet XHP-BB Hydrostatically Set Big-Bore Premium Production Packer

XHP-BB hydrostatically set big-bore premium production packer is a retrievable packer designed for high-rate production and injection wells with high or low temperatures and for challenging environments that require single-trip completions, such as deepwater and subsea wells.
