GeoToolkit demo gallery
Experience interactive visualizations
The libraries behind energy visualization.
Discover the power of GeoToolkit energy visualization libraries, a powerful suite of high-performance components, designed for developers seeking to rapidly build or extend advanced geoscience visualization software.
Developers can use GeoToolkit libraries to quickly build high‑performance, domain‑specific geoscience applications. Whether for internal tools or commercial software, GeoToolkit delivers the visualization foundation you need.
Explore the demos to see what’s possible—and get inspired to create your own solutions.
GeoToolkit libraries demos
-

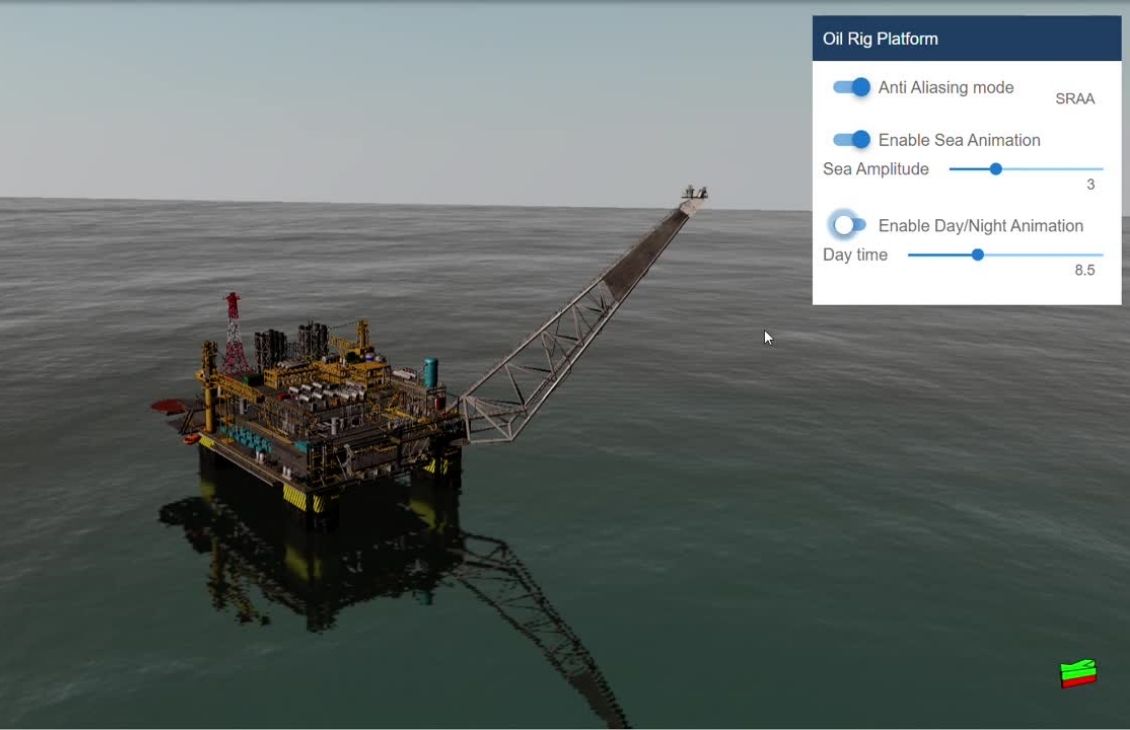

Advanced 3D Oil Rig Rendering in GeoToolkit.JS
Advanced 3D Oil Rig Rendering in GeoToolkit.JS
-
3D schematics demo
3D schematics demo
-

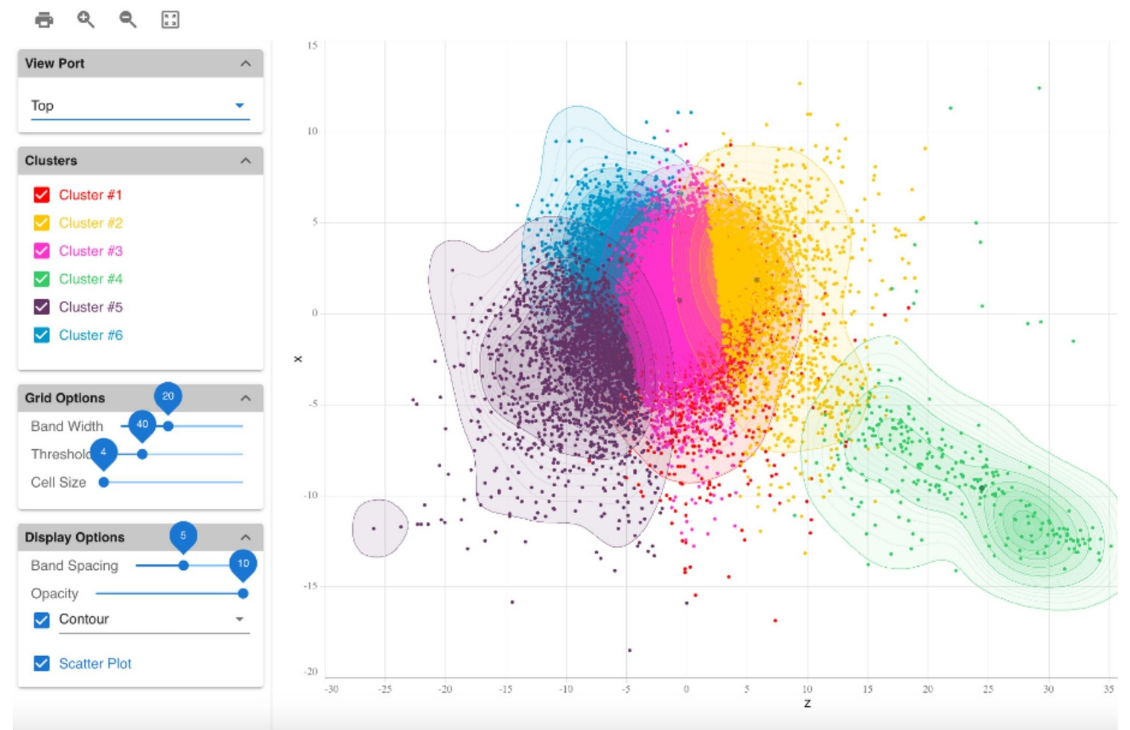

Density crossplot
Project onto each 2D or 3D space and rotate to see your data from any angle.
-

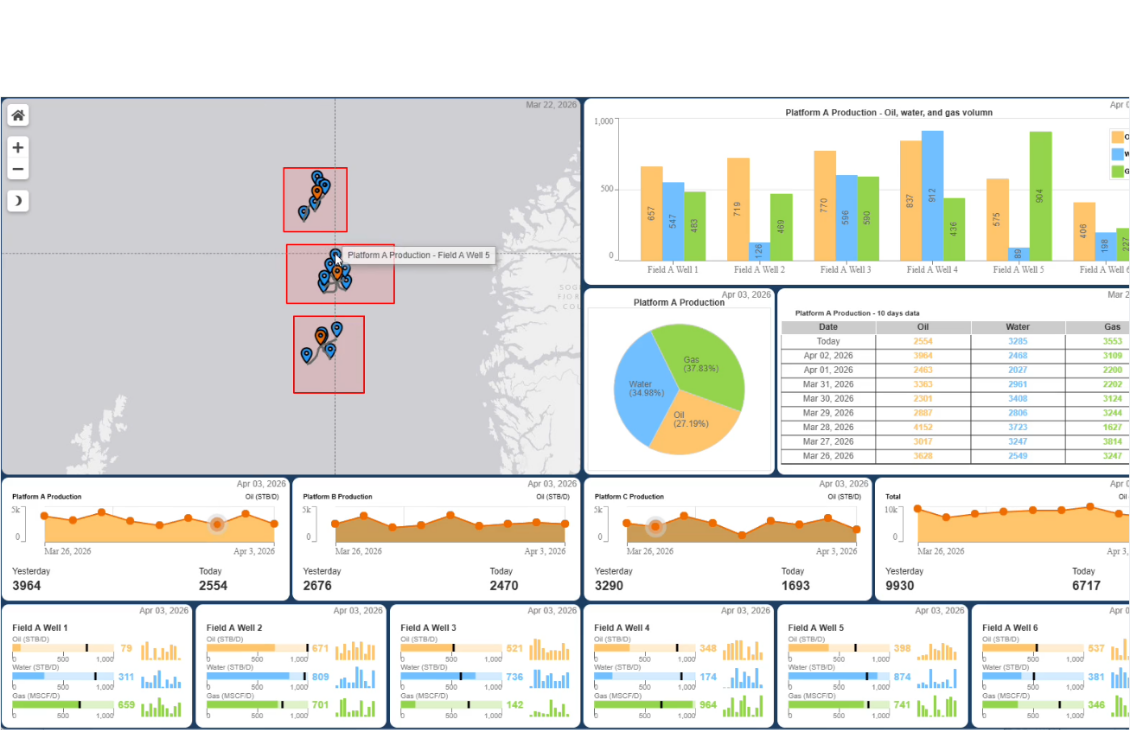

Production monitoring dashboard
Build production monitoring dashboards that run natively in the browser, with no plugins required.
-

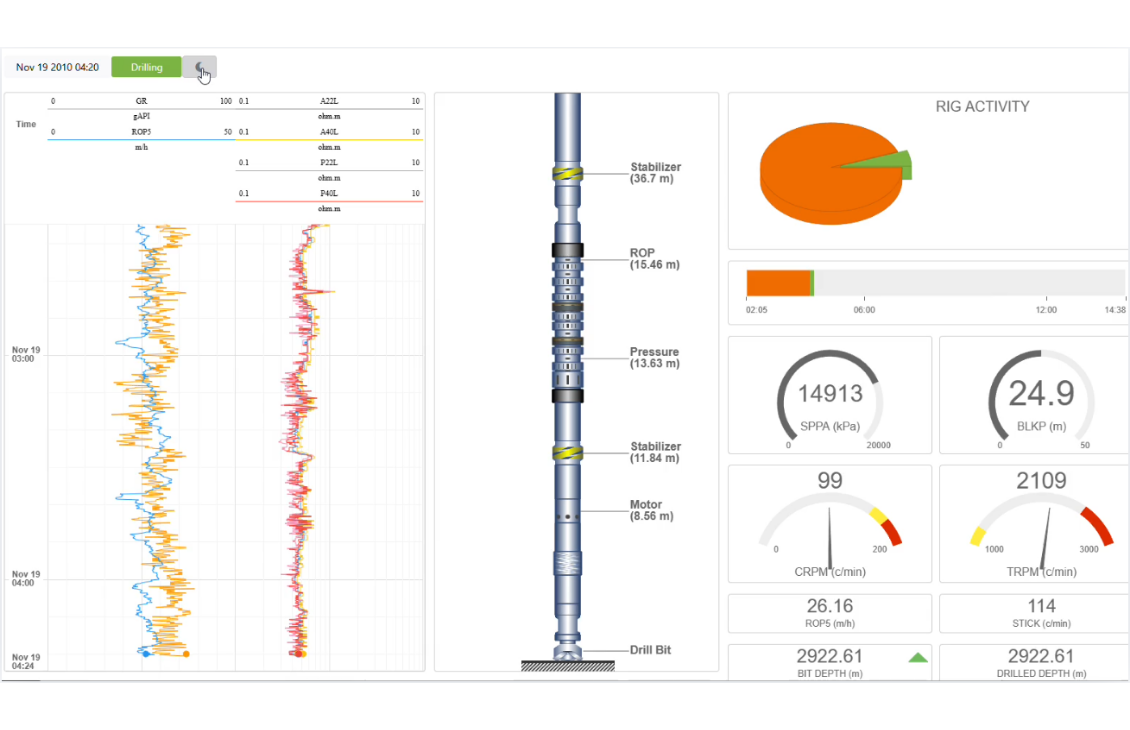

Real-time drilling dashboards
Powered by GeoToolkit — live gauges, well log tracks, and drilling widgets streaming in real time, all in your browser.
-

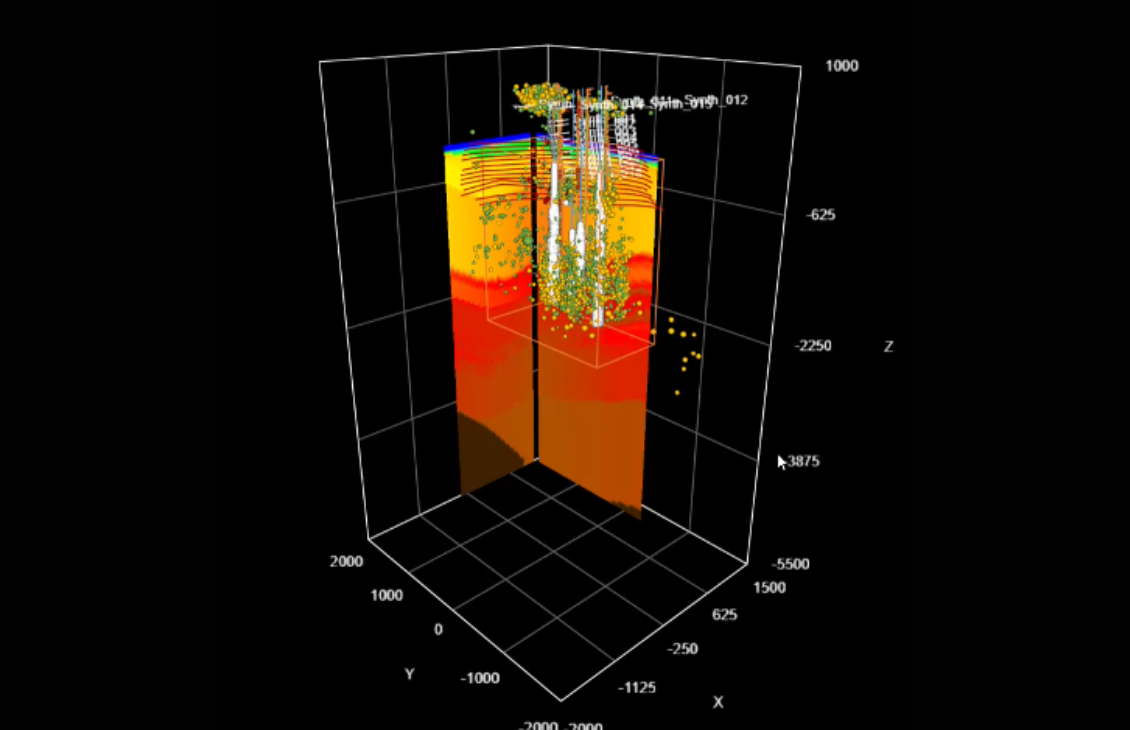

3D microseismic
See microseismic activity come alive with 3D components designed for intuitive visualization and interaction of domain data.
-

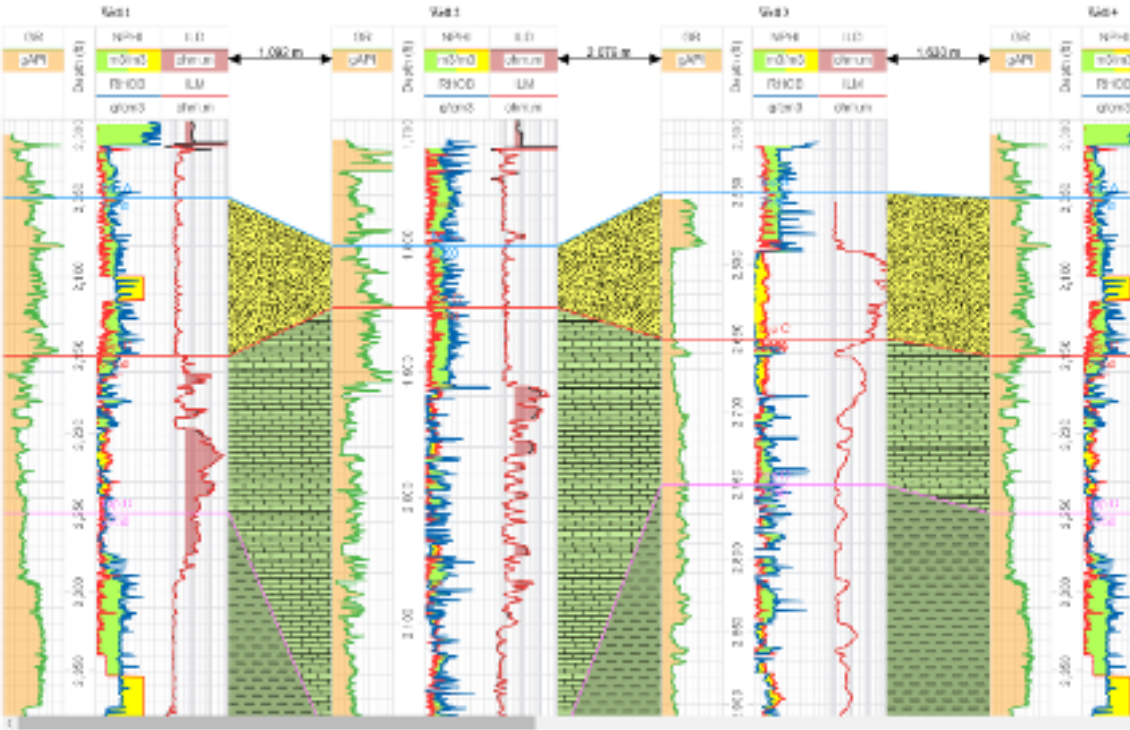

Multi-well correlation display
Multi‑well data correlation with flexible display templates and drag‑and‑drop interaction.
-

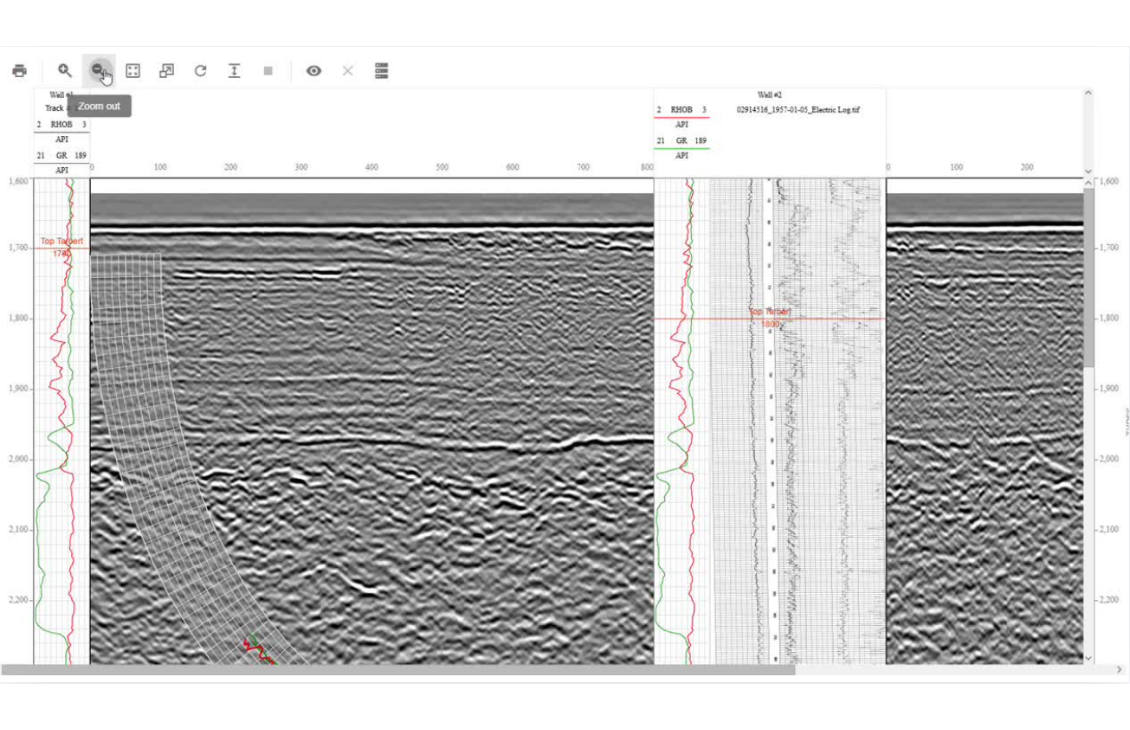

Cross-section display
Analyze logs and raster data with seamless overlays of deviated wells on seismic
-

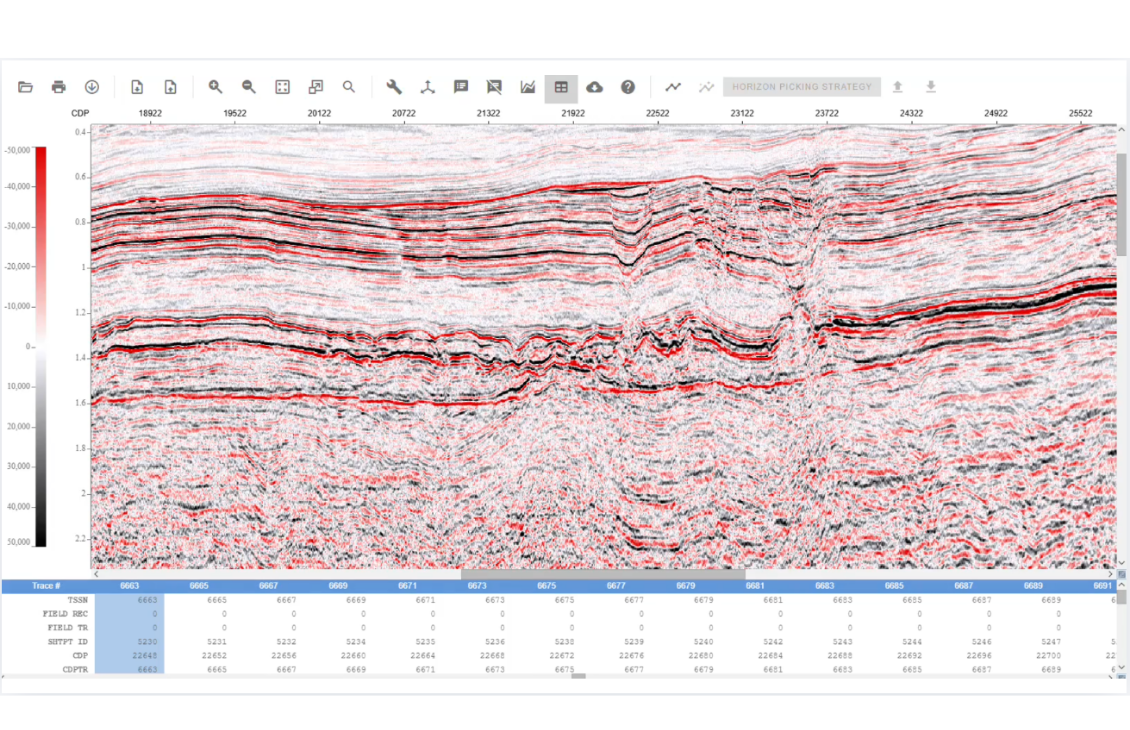

2D seismic display
2D seismic interpretation with overlays for annotations, picks, logs, and contours—expandable to 3D and 4D.
-

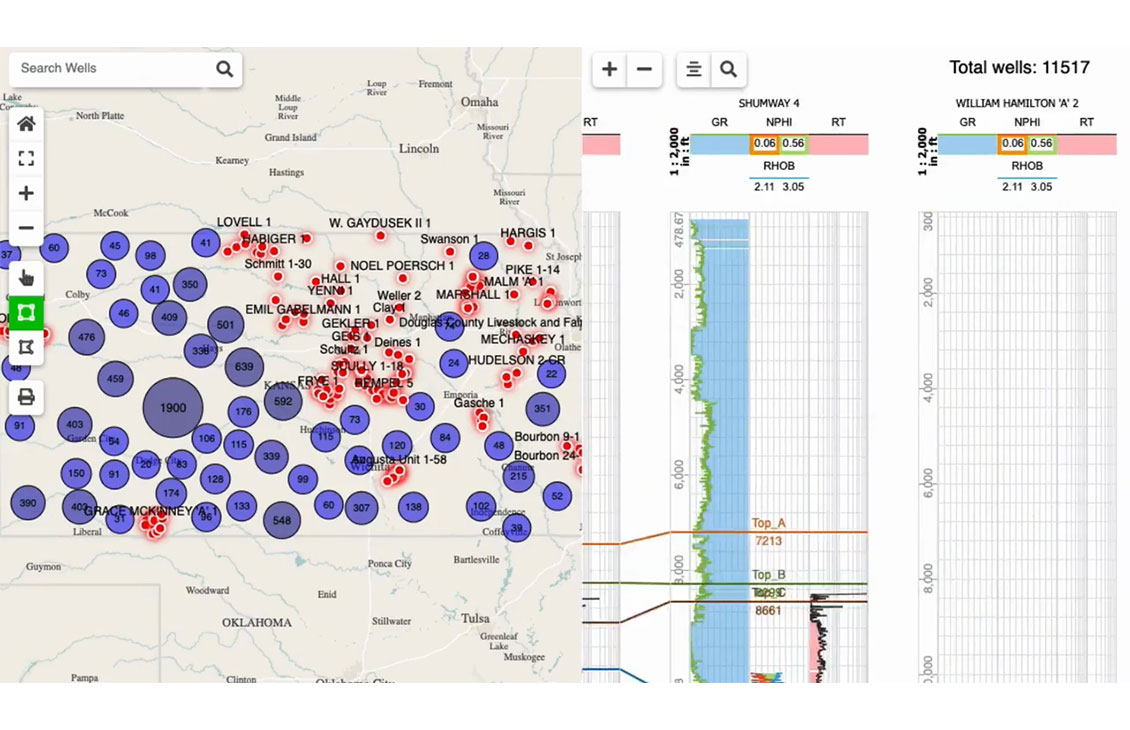

Well Log correlation at scale: 10,000+ wells in seconds
Watch GeoToolkit load over ten thousand wells in seconds. Just select wells on the map, and they instantly display in the well track for fast, seamless correlation.
-

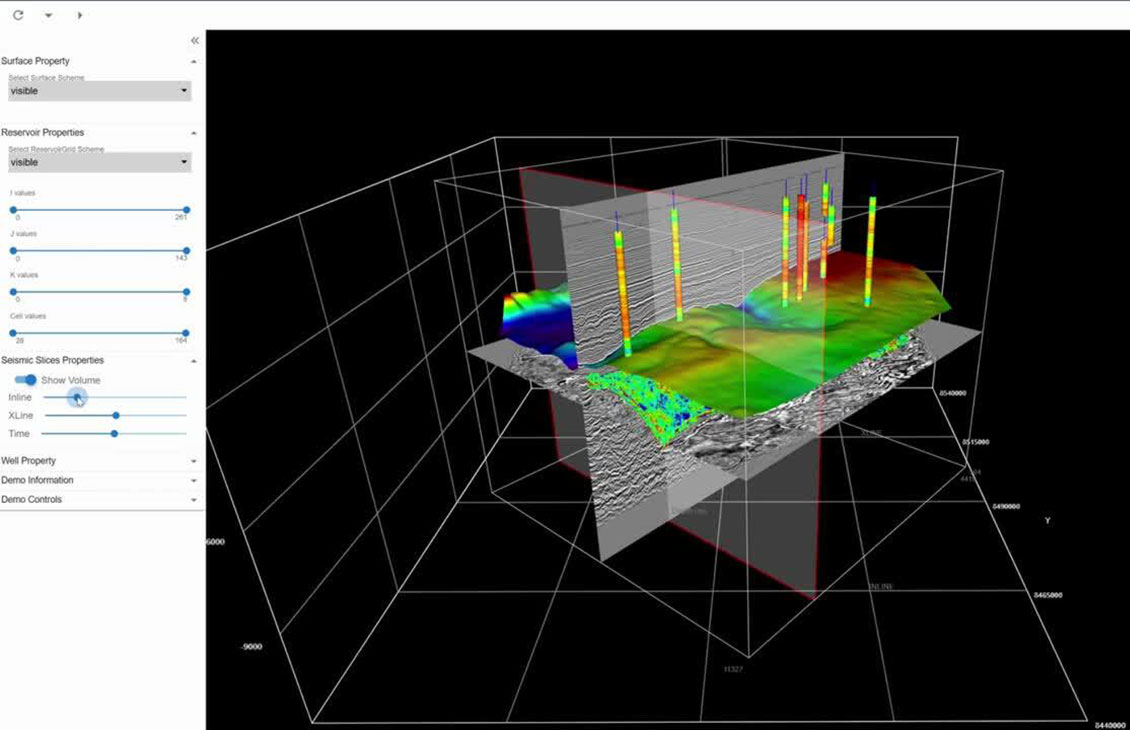

3D rendering for seismic and reservoir data
See your entire subsurface story in one place.Seismic, surfaces, grids—all rendered together in 3D.
The libraries behind energy visualization
Unlock the power of advanced domain tools and libraries. GeoToolkit delivers high-performance 2D/3D rendering, real-time data integration, customizable visual components and more—ready to accelerate your digital workflows.
