High-capacity magnet for wellbore debris cleanup

The MAGNOGARD magnet features powerful, easy-to-clean magnets embedded into deep collection valleys.

Collect debris in high-torque strings

Applications with the potential for significant amounts of ferrous debris are ideal for the MAGNOSTAR high-capacity magnet, which incorporates a high-strength rare-earth-magnet design ideal for large-volume cleaning in high-torque strings.

The fixed stabilizer sleeve on the box end of the magnet provides standoff when pulling out of the hole. Removal of recovered debris is easily done on location with a scraper tool before running the MAGNOSTAR magnet again.

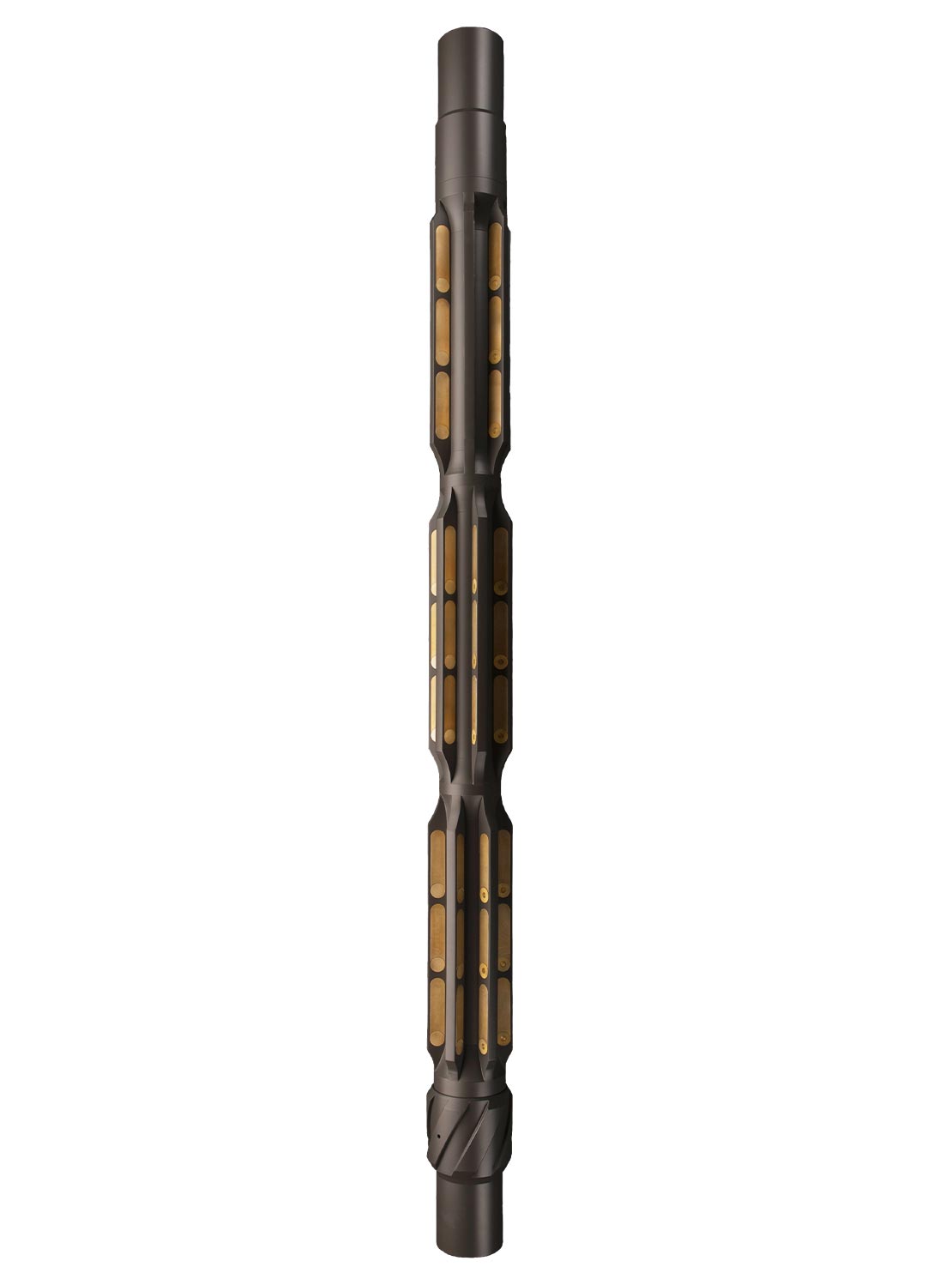

magnostar - combo
magnostar - combo
Retrieval capacity of 200 lbm
Rated to 350 degF [177 degC]
Availability for casing and liner sizes from 4 1/2 in to 13 3/8 in

Manage debris for a variety of applications

The MAGNOSTAR magnet is run downhole on the workstring as part of the cased hole drilling, milling, or polishing assembly. A dedicated flow path prevents restrictions when the magnet is packed with debris.

Displacements, postperforating, prefracturing, multizone completions, milling, burning, fishing, and smart completions are ideal applications for the MAGNOSTAR magnet, especially when there is the potential for a significant amount of ferrous debris.
