DSI

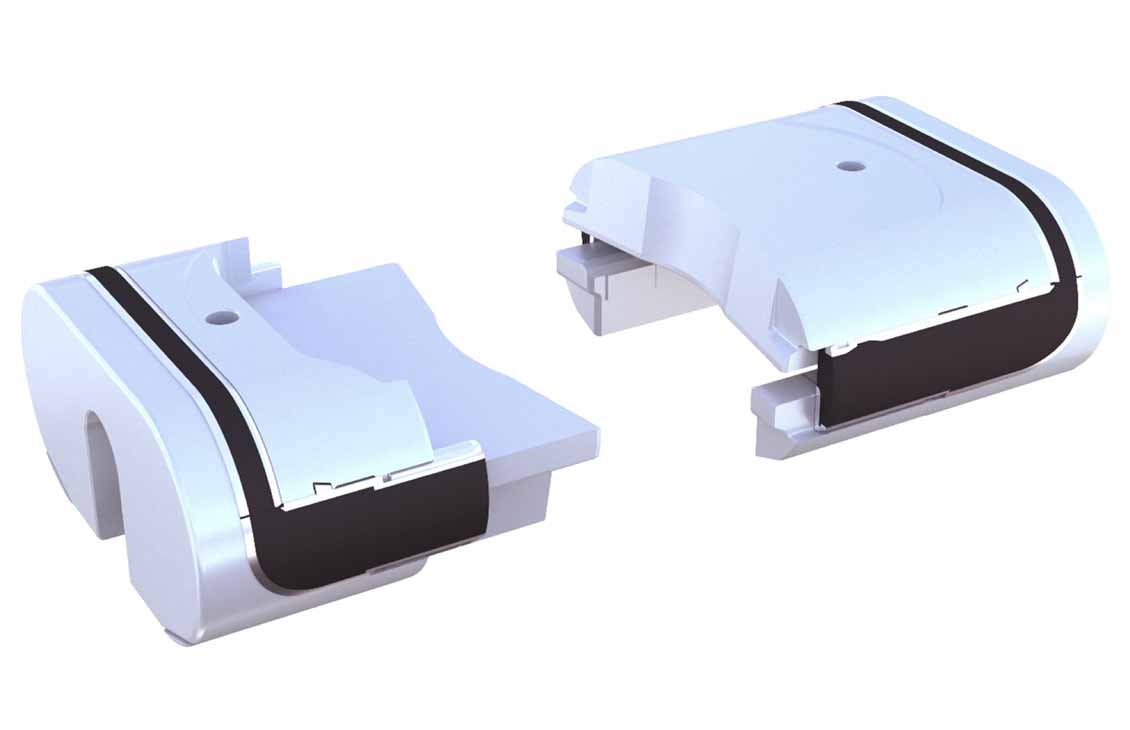

Dual-string interlocking shear rams
The Cameron product family DSI dual-string interlocking shear rams are similar in design to DS dual-string shear rams, except for the interlocking feature of the rams. Arms on the upper ram prevent any vertical separation between the lower and upper blades.
The interlocking feature provides the capability of shearing wireline and braided cable with zero tension in the line. DSI rams do not use a foldover shoulder, and thus have the capacity to shear larger diameter pipe and casing.
Shearing action
The DSI ram shearing action is the same as that for DS rams except that when the rams first engage, all separation between the blades is eliminated.
BOP Availability
| Type | Size, in | Rating, psi | Wireline Capable |
|---|---|---|---|
| BOP Availability U and UM BOPs | BOP Availability 7 1/16 | BOP Availability 3,000–10,000 | BOP Availability Yes |
| BOP Availability U and UM BOPs | BOP Availability 13 5/8† | BOP Availability 3,000–10,000 | BOP Availability Yes |
| BOP Availability U and UM BOPs | BOP Availability 11 | BOP Availability 3,000–5,000 | BOP Availability Yes |
| BOP Availability U BOPs | BOP Availability 16 3/4 | BOP Availability 5,000 | BOP Availability Yes |
| BOP Availability TL and EVO BOPs | BOP Availability 18 3/4 | BOP Availability 15,000 | BOP Availability Yes |
†High- and low-temperature capability.
Applications
Drilling and production operations that include wireline, braided cable, dual strings, or high-temperature well environments
Benefits
- Improves performance certainty with interlocking design
- Enhances operational flexibility by enabling shearing of wireline, braided cable, and dual strings
- Shears wireline and braided cable with zero tension in the line while maintaining seal
- Enhances HSE profile by eliminating nonshearables
- Lowers required shear pressure with more efficient cutting geometry
Features
- Interlocking arms on the upper ram prevent vertical separation
- Blades provide full wellbore coverage
- Lack of foldover enables kill weight mud to be pumped down the drillstring
- Compatible with U surface ram-type BOP
- Compatible with UM convertible-bonnet ram-type BOP
- Compatible with all 18 3/4-in, 15,000-psi Cameron TL offshore ram-type BOPs and 15,000-psi EVO compact, offshore ram-type BOPs
- NACE compatible based on physical testing and finite element analysis
