Product Sheet High-Pressure Fluid Swivels
For drilling riser telescopic joint or riser gas handling flow lines.

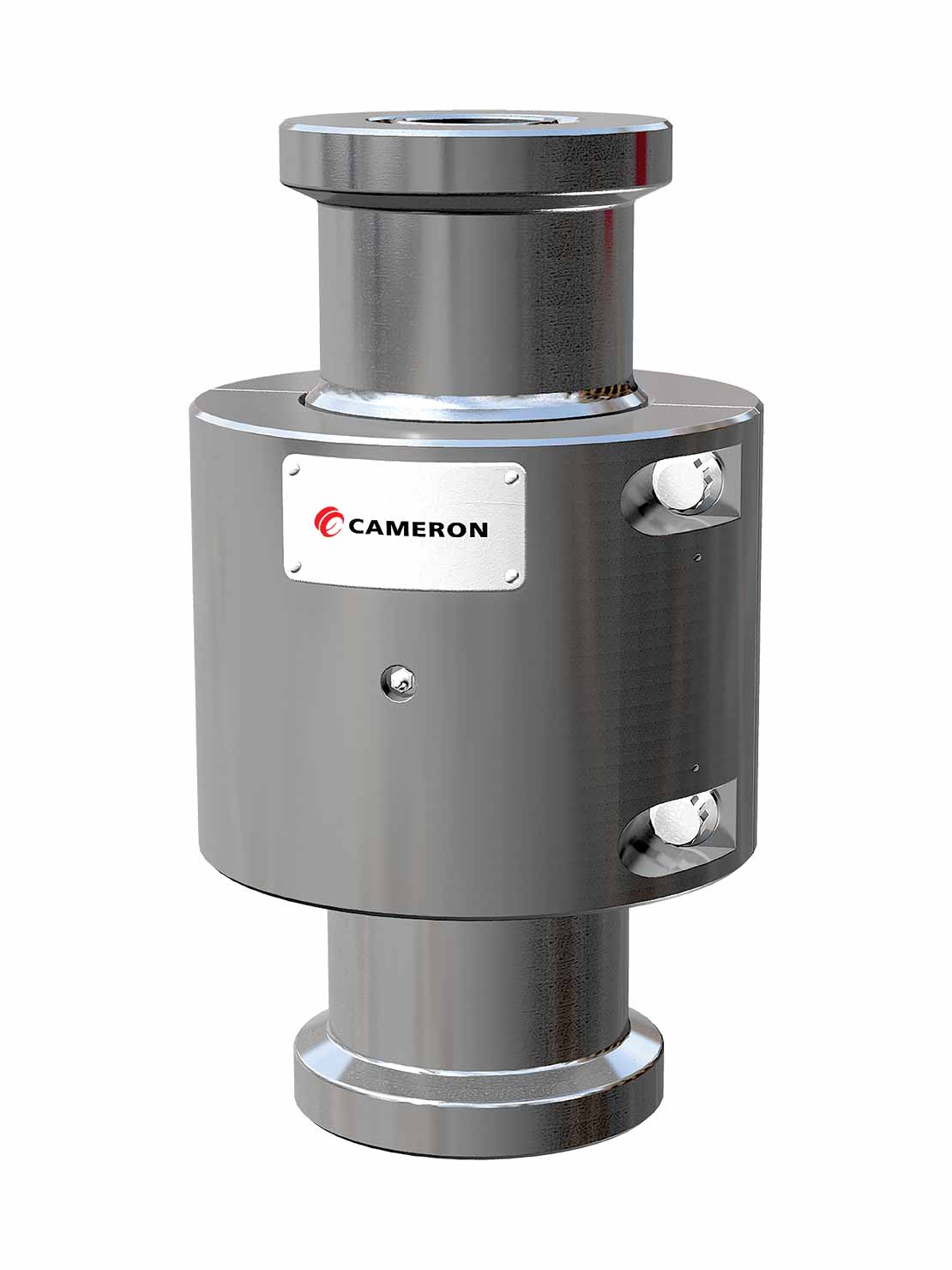

Fluid Swivels
Eliminate alignment and orientation issues when connecting auxiliary lines
Fluid swivels assist in the alignment and connection of flexible moon pool drape hoses to the goosenecks on a drilling riser telescopic joint or riser gas handling flow lines.
Our fluid swivels reduce the torsion imparted to the flexible hoses during rotation of the drilling vessel relative to the drilling riser. These high-pressure fluid swivels can be used with choke and kill lines, mud booster lines, hydraulic lines, and other auxiliary equipment during makeup of flexible hoses.
Features
- Rated for H2S service
- INCONEL 625–inlaid ring grooves and seal surfaces for corrosion resistance
- Redundant elastomeric seals that provide dual barrier between swivel bore and environment
- Low-friction, self-lubricating composite bearings for high load capacity with low breakout torque and smooth rotation
- Commonality of replaceable items across class and sizes
- In-field serviceability
- Elimination of alignment and orientation issues
| Specifications | |
|---|---|
| Available bore sizes |
1 13/16–9 in |
| Available pressure ratings |
5,000, 10,000, 15,000, and 20,000 psi (others on request) |
| Temperature rating |
U: 0 to 250 degF [–18 to 121 degC] |
| Material class rating |
EE (sour service) |
| Product specification level |
PSL 3 |
| Maximum applied tension |
10,000–50,000 lbf (class dependent) |
| Maximum applied bending |
5,000–25,000 lbf.ft (class dependent) |
| Connection options | Flanged, studded flange, or clamp hubs; custom options available |
| Codes and standards |
API Specs 6A, 16A, and 17D; NACE MR0175; ISO 10423, 13533, 13628-4, and 15156 |
