Nutron T3N floating ball valves
Forged steel construction for heavy-duty performance and reduced maintenance
Overview
Nutron™ T3N floating ball valves are used in the oil and gas industry for offshore and onshore production, unconventional, transmission and storage, topside processing, petrochemical and chemical, gas processing, and LNG applications. They can also be used in a range of other industries and are low emissions certified to ISO 15848-1.

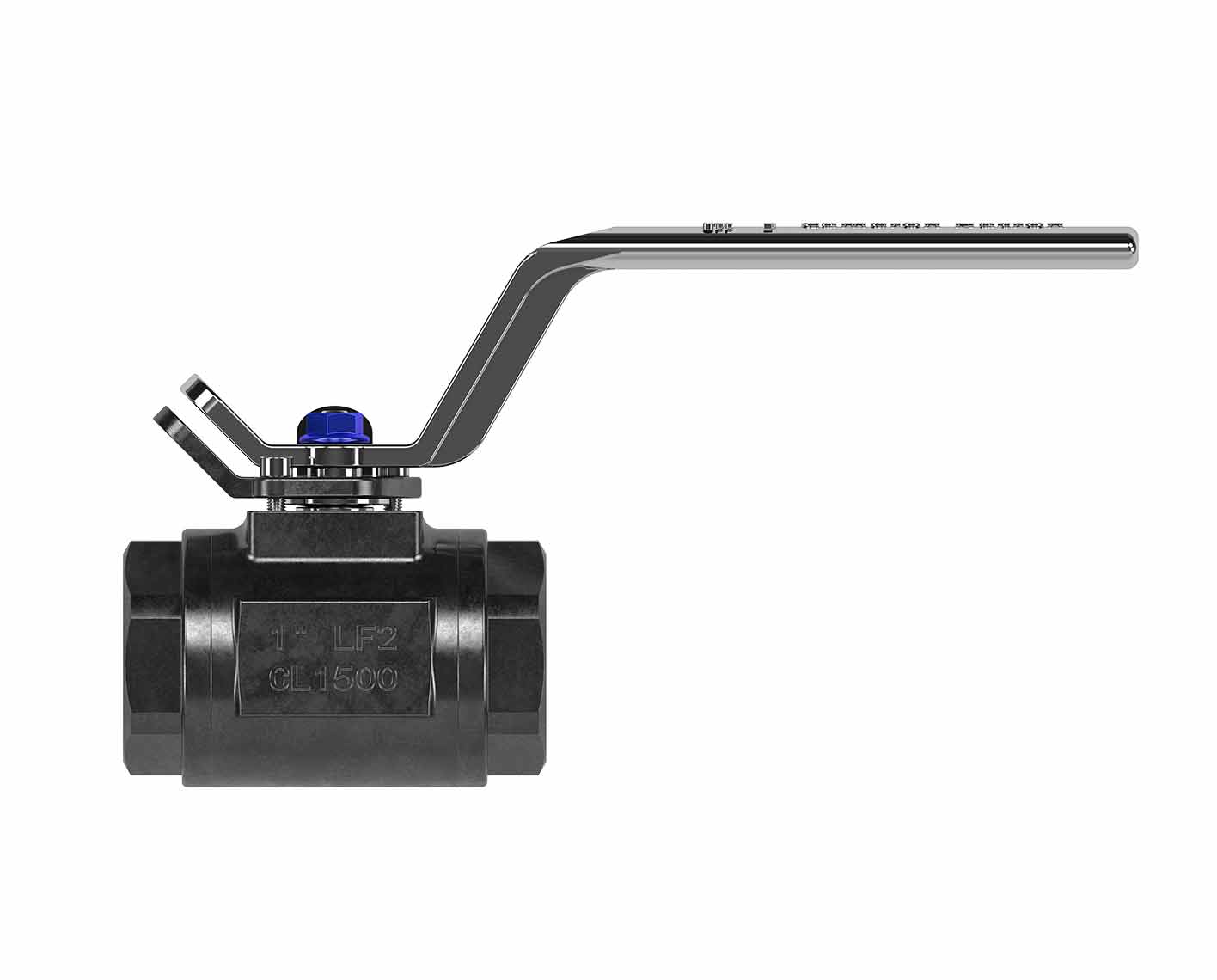

Nutron T3N valve with threaded body and SW × SW end.
Features
- Forged body and end closures
- 3-piece construction
- Inline weldable
- Full or reduced port
- ASME B16.34 design
- NACE MR0175–compliant
- Positively retained stem
- Antistatic design
- API Std 607 fire-test certified
- Low emissions certified to ISO 15848-1
Tech Specs
| Specifications |
|
| Full-port sizes |
1/2 to 2 in [12.7 to 51 mm] |
| Reduced-port sizes |
3/4 to 3 in [19 to 76 mm] |
| ASME Classes |
600 to 2500 [PN 100 to 420] |
| End connections |
Threaded, flanged, or socket weld |
All specifications are subject to change without notice.
