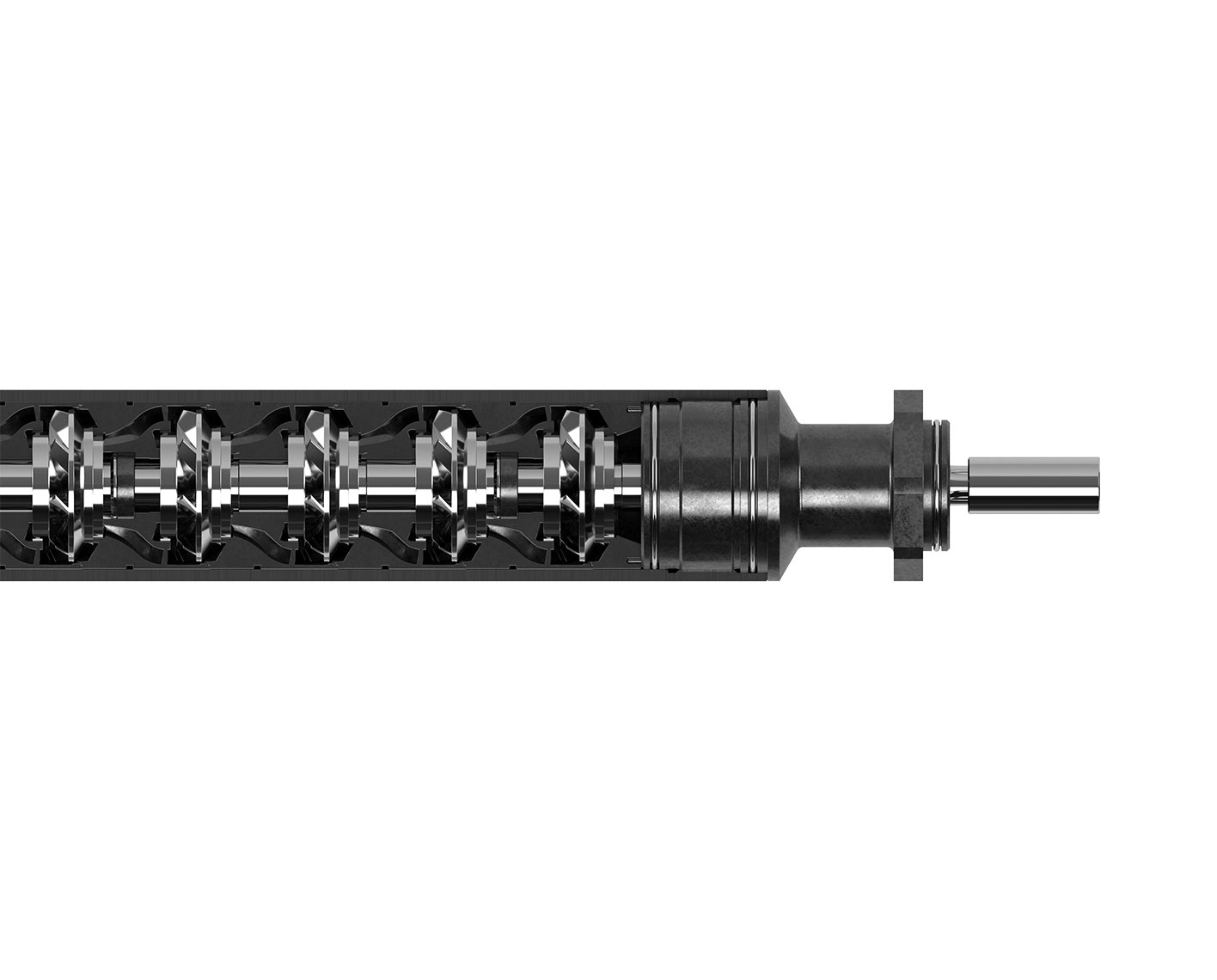

High Rise

Get more lift and fewer worries

High Rise™ ESP series pumps deliver more lift with fewer stages, optimized efficiency, and enhanced durability for extended production life. The robust pumps were designed handle the dynamic production rates and harsh downhole conditions common in unconventional wells to deliver more lift and fewer worries.

• Unconventional oil wells
• Conventional oil wells

• Achieves up to 33%* greater lift per unit length of pump with patented Oculus™ technology
• Handles flow rates 200–7,500 bbl/d [31.8–1,192.4 m³/d]
• Increase ESP pull strength by more than 40%**
• Improve shaft strength by 20%**
• Reduces CO₂ emissions by 1 ton per ESP install^†
• Uses on average 20% less heavy metals^†
• Expands the operating range to reduce ESP change outs
• Reduces rig time
• Mitigates the impact of thermal cycling, gas locks, and higher temperatures
• Reduces pump assembly complexity

• Enhanced hydraulic design of the pumps achieves continuously rising head, which allows for an expanded operating range on the lower side of the flowrate
• Housing thread and bolt patterns increase the pull strength by 40%^** to reduce the potential for parted units
• Improved mechanical retention of carbide bushings in the pump head and base mitigate the impact of thermal cycling and gas locking
• Double O-ring seal design increases pump pressure rating and keeps well fluid out of the threads
• 50% stronger head and base material
• Higher grade materials reduce the impact of corrosion
• Enhanced pump throat design reduces the impact of erosion from abrasives in the fluid while allowing for higher flow rates
