Jiskoot loop extractors

Ensure representative liquid sample extraction for accurate process measurement and analysis

Applications

Sampling and analysis fast-loop operations

Benefits

Acquisition of representative sample
Streamlined entry profile that prevents preferential bias caused by specific gravity variation in mixed fluids
Optional integrated return that eliminates the need for separate entry and exit points on the line

Features

Large-bore sample bypass
Fixed or withdrawable mounting designs
Hydraulic extractor available

How they improve performance

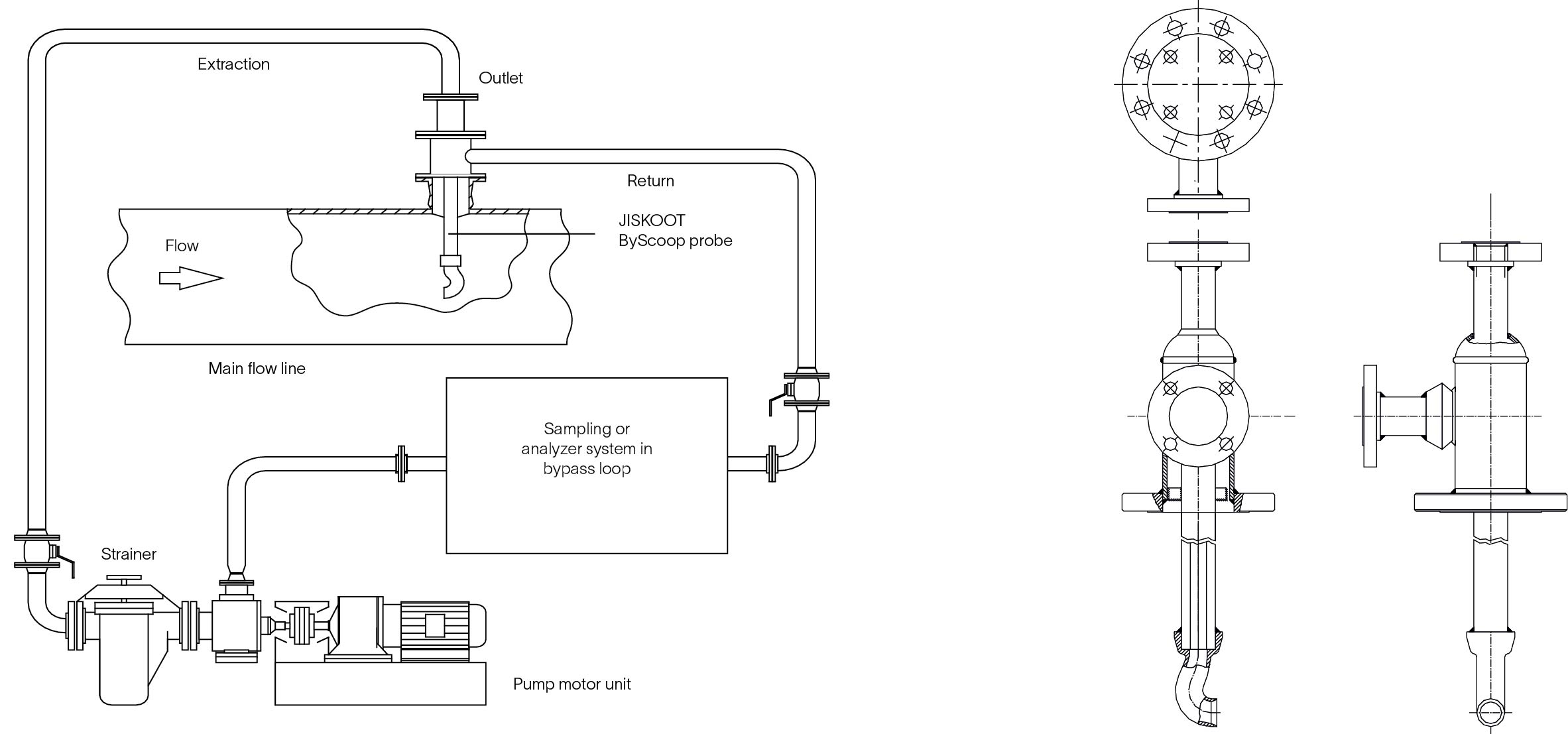

Jiskoot™ loop extractors are engineered to provide representative liquid sampling for cell samplers, water monitors, densitometers, and online analyzers. Designed to extract a slipstream from the well-mixed region of the pipeline, their unique knife-edged, swan-neck take-off minimizes sampling bias and ensures that the extracted sample accurately reflects process conditions.

An integrated return reduces installation complexity and hot tap requirements, while accelerated loop flow helps prevent component fallout and minimizes volume and time lag. Available in both fixed and withdrawable configurations, these loop extractors provide a robust, reliable solution for maintaining sample representativity and supporting accurate process measurement and analysis.

Technical Specifications
The following represents a standard design; alternative specifications including NACE MR0175 are available^†
The following equipment is designed in accordance with the requirements of ASME B31.3 and is CE marked (where applicable) to PED 97/23/EC
		Withdrawable Probe	Fixed Probe
Maximum operating pressure		1,450-psi [100-bar] gauge pressure^† at 104 degF [40 degC] (standard material of construction)	To suit flange and materials of construction
Support tube		316 stainless steel	ASTM A333 Grade 6 carbon steel
Carrier flange		Carbon steel	–
Mounting flange		–	ASTM A350 LF2 carbon steel
Seal housing		ASTM A350 LF2 carbon steel (316 available†)	–
Probe head		ASTM A351-CF8M stainless steel^‡	ASTM A351-CF8M stainless steel^‡
Seal		Nitrile-proof cotton and nylon (other options available)	–
Installation	Pipeline mounting flange	3-in NB 150-, 300-, or 600-lbm RF/RTJ	3-in NB 150-, 300-, 600-, 900-, or 1,500-lbm RF (minimum bore size of 2.17 in [55 mm])
	Outlet or exit connection	11/2-in NB 150-, 300-, or 600-lbm RF/RTJ standard^§	11/2-in NB 150, 300-, or 600-lbm RF/RTJ standard^§
	Optional return connection	11/2-in NB 150-, 300-, or 600-lbm RF/RTJ standard^§	–
	Pipeline tapping bore size	2.17-in [55-mm] minimum standard	2.17-in [55-mm] minimum standard
Line temperature		−4 to 100 degF [−20 to 100 degC]	−4 to 100 degF [−20 to 100 degC]
Maximum line pressure	Standard version	720 psi [49.6 bar]	720 psi [49.6 bar]
	High-pressure version	2,160 psi [149 bar]	2,160 psi [149 bar]
Pipeline sizes		8 to 48 in^§	8 to 48 in^§
Operating standards and CE compliance		ISO 3171, API 8.2, IP 6.2, PED 97/23/EC, Machinery Directive 98/37/EC	ISO 3171, API 8.2, IP 6.2, PED 97/23/EC, Machinery Directive 98/37/EC

^† Higher pressure versions available ^‡ Available in other materials ^§ Other sizes available on request
