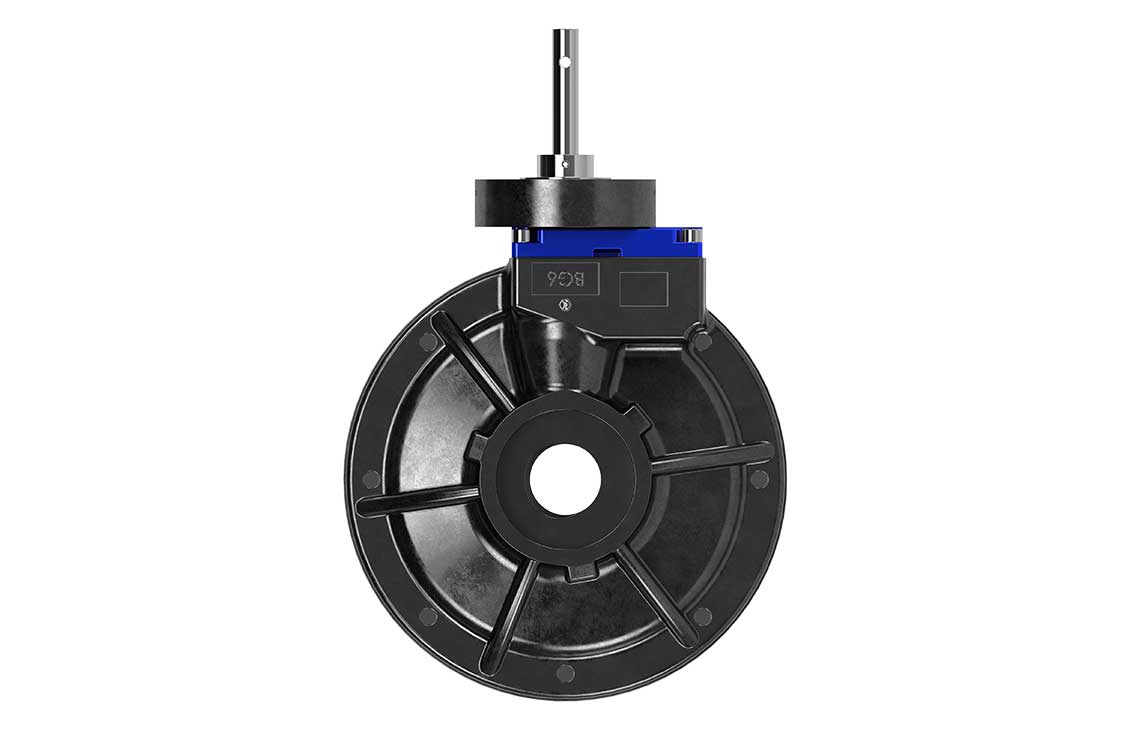

Dynatorque BG Multiturn Bevel Gears
Reliable torque and thrust support for multiturn valve operation
Make high-load valves easier to operate, delivering smoother and more controlled torque transmission.
Locking devices
For select Dynatorque valve accessories
Overview
Enhance safety of valve operations

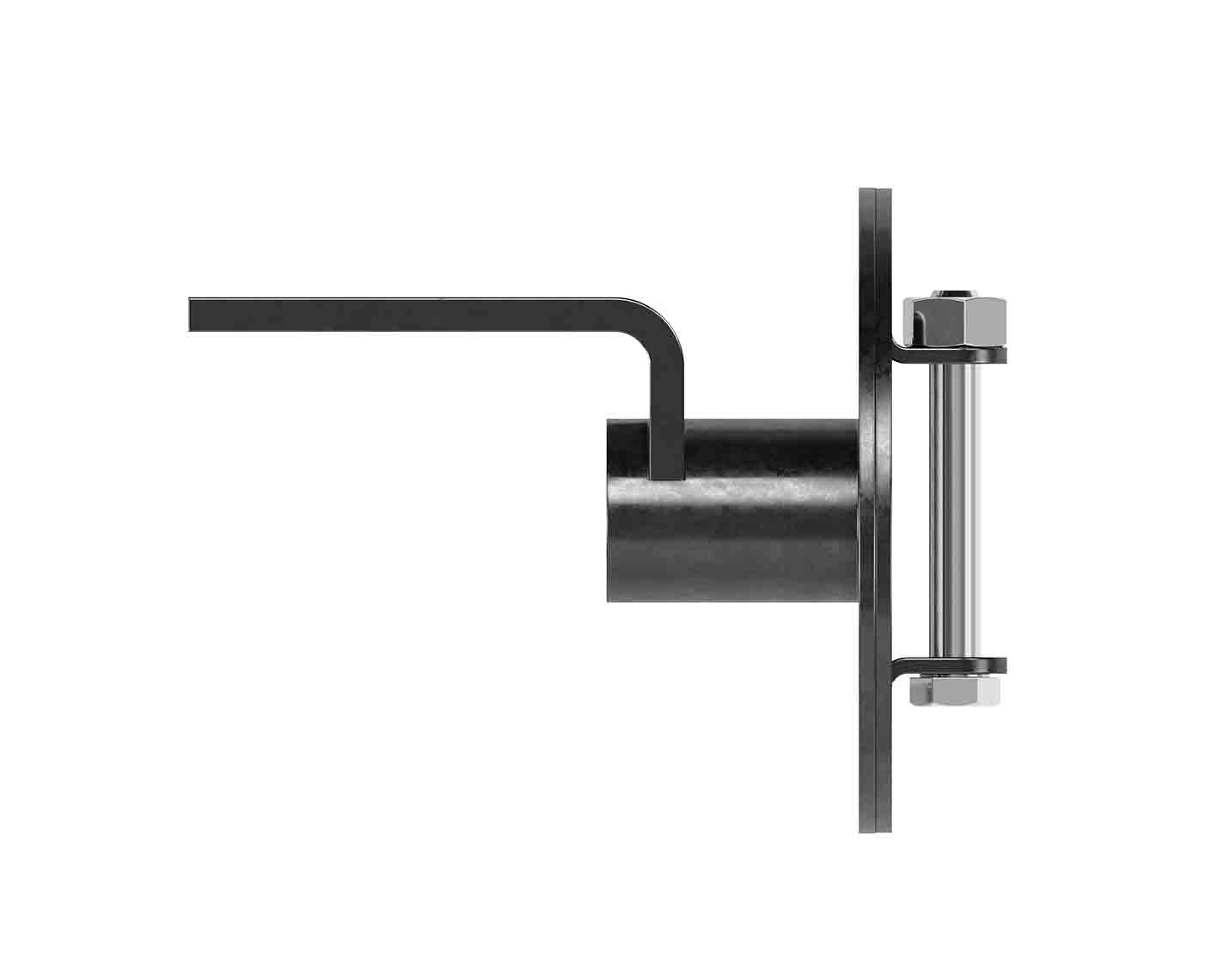

These locking devices provide a practical, field-mountable solution to help secure certain Dynatorque™ valve accessories against unintended handwheel movement. Consequently, they support safer valve operation in maintenance, isolation, and critical service applications.
Compatibility with multiple products simplifies selecting a suitable kit for standard gear operators and manual override configurations. Kits are available in carbon steel as standard, with stainless steel construction an option for applications that require enhanced corrosion resistance.
Applications
- Manual lockout for Dynatorque 90 quarter-turn worm gears
- Locking support for Dynatorque SRD non-declutchable manual overrides
- Locking kits for Dynatorque SD declutchable manual overrides
- Locking provisions for Dynatorque BG multiturn bevel gears
- Field retrofit without replacing the Dynatorque valve accessory
Benefits
- Improve control: Prevent unintended handwheel movement in critical valve applications
- Support maintenance safety: Reinforce lockout during service, shutdown, and isolation
- Simplify selection and inventory: Compatible with multiple Dynatorque accessories
- Provide material flexibility: Carbon steel for standard and stainless steel for corrosive service
Features
- Available for standard and retrofit configurations
- Padlocks available separately
Tech Specs
Dynatorque 90 Quarter-Turn Worm Gears
| Model | 6- Through 30-in Handwheels and HWRF36 (Carbon Steel) | 6- Through 30-in Handwheels and HWRF36 (Stainless Steel) | HWRR36 Handwheels, 3-in Hub (Carbon Steel) | HWRR36 Handwheels, 3-in Hub (Carbon Steel) |
| DT1, DT3, and DT3SRD | 36-020 | 36-032 | Not applicable |
Not applicable |
| DT7 and DT7SRD | 36-050 | 36-072 | Not applicable | Not applicable |
| DT8, DT12, and DT12SRD | 36-080 | 36-086 | 36-082 | 36-090 |
| DT21, DT21SRD, DT50, DT50SRD, DT90, and DT90SRD | 36-160 | 36-162 | 36-166 | 36-168 |
| DT36 and DT36SRD | 36-300 | 36-303 | 36-302 | 36-308 |
| DT60 | 36-600 | 36-603 | 36-602 | 36-606 |
| DT54, DT54SRD, DT140, and DT140SRD | 36-550 | 36-554 | 36-552 | 36-556 |
Dynatorque BG Multiturn Bevel Gears
| Model | 6- Through 30-in Handwheels and HWRF36 (Carbon Steel) | 6- Through 30-in Handwheels and HWRF36 (Stainless Steel) | HWRR36 Handwheels, 3-in Hub (Carbon Steel) | HWRR36 Handwheels, 3-in Hub (Carbon Steel) |
| BG3 | 36-160 | 36-162 | 36-166 | 36-168 |
| BG4 | 36-600 | 36-603 | 36-602 | 36-606 |
| BG42 | 36-080 | 36-086 | 36-082 | 36-090 |
| All 4:1 spurs | 36-160 | 36-162 | 36-166 | 36-168 |
| All 6:1 spurs | 36-550 | 36-554 | 36-552 | 36-556 |
