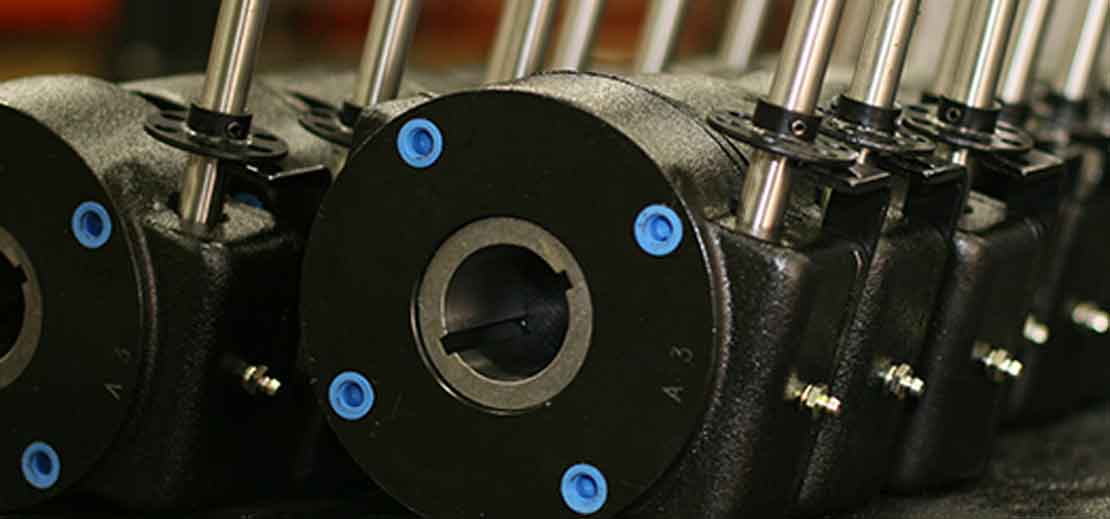

DT, SRD, and BG Locking Devices
Avoid inadvertent handwheel rotation
Features
Cameron field-mountable locking devices were designed for those critical service applications where avoiding inadvertent handwheel rotation is required. These devices are available for use on all our quarter-turn and multiturn operators when used with our handwheels. Padlocks are not included.
Materials
Locking devices are fabricated from carbon steel unless otherwise indicated. Cross bolts, washers, and lock nuts are also carbon steel. Stainless steel construction is also available.
Specifications
Quarter-Turn Gear Operators
| Model | 6- Through 30-in Handwheels and HWRF36 (Carbon Steel) | 6- Through 30-in Handwheels and HWRF36 (Stainless Steel) | HWRR36 Handwheels, 3-in Hub (Carbon Steel) | HWRR36 Handwheels, 3-in Hub (Carbon Steel) |
| DT1, DT2, DT3, and DT3 SRD | 36-020 | 36-032 | Not applicable |
Not applicable |
| DT5, DT7, and DT7 SRD | 36-050 | 36-072 | Not applicable | Not applicable |
| DT8, DT12, and DT12 SRD | 36-080 | 36-086 | 36-082 | 36-090 |
| DT16, DT21, DT21 SRD, DT50, DT50 SRD, DT90, and DT90SRD | 36-160 | 36-162 | 36-166 | 36-168 |
| DT36 and DT36 SRD | 36-300 | 36-303 | 36-302 | 36-308 |
| DT60 | 36-600 | 36-603 | 36-602 | 36-606 |
| DT54, DT54 SRD, DT140, and DT140 SRD | 36-550 | 36-554 | 36-552 | 36-556 |
Bevel-Gear Operators
| Model | 6- Through 30-in Handwheels and HWRF36 (Carbon Steel) | 6- Through 30-in Handwheels and HWRF36 (Stainless Steel) | HWRR36 Handwheels, 3-in Hub (Carbon Steel) | HWRR36 Handwheels, 3-in Hub (Carbon Steel) |
| BG3 | 36-160 | 36-162 | 36-166 | 36-168 |
| BG4 | 36-600 | 36-603 | 36-602 | 36-606 |
| BG42 | 36-080 | 36-086 | 36-082 | 36-090 |
| All 4:1 spurs | 36-160 | 36-162 | 36-166 | 36-168 |
| All 6:1 spurs | 36-550 | 36-554 | 36-552 | 36-556 |
