Cameron Frac Trees and Zipper Manifolds
Digitally elevate and automate frac performance, capacity, uptime, and safety
Elevate your frac performance with reliable equipment integrating digitalization and automation.
High-pressure valves that maximize fracturing efficiency

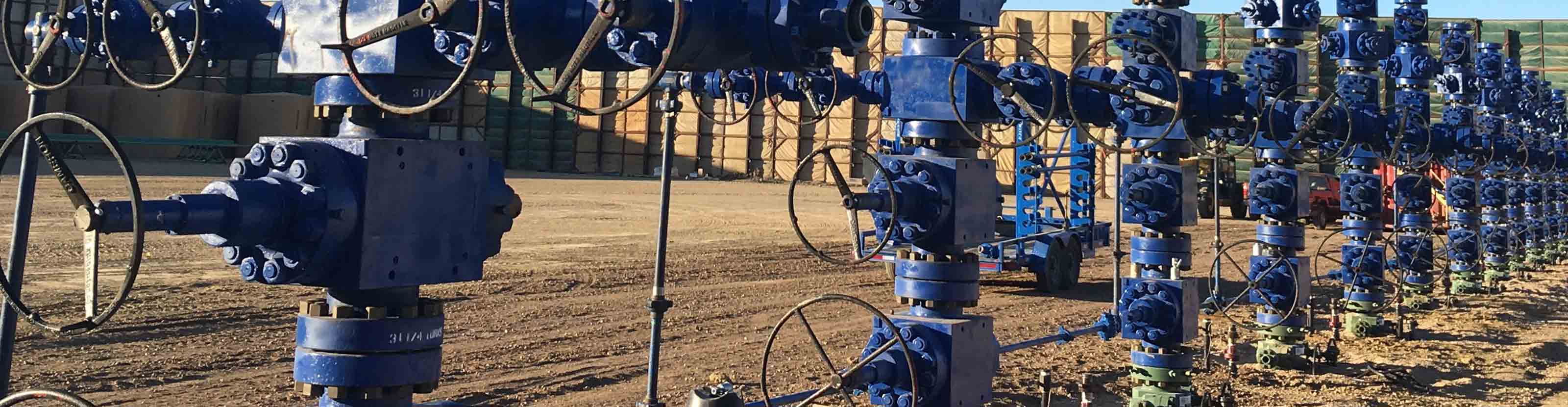

Cameron frac valves have earned a reputation for quality and reliability. Gate valves in frac trees and manifolds frequently flow and control high-pressure, high-volume, abrasive fracturing fluids for days—and even weeks. Given the erosive, corrosive, and sometimes sour nature of typical fracturing and flowback fluids, these valves are trimmed for maximum corrosion and erosion protection and feature
Because of these features and the industry’s most stringent maintenance program, which can include cleaning, disassembly, inspection, reassembly, and testing before valves returned from the field are assigned to the next project, Cameron frac valves provide three times more uptime compared with other suppliers, minimizing NPT and related costs.
Designed as a manual valve for high-pressure applications, the FLS-R-Frac large-bore HP fracturing API 6A slab-style gate valve is a heavy-duty, reliable gate valve for hydraulic fracturing. It reduces exposure to potential erosion and contamination associated with the midrange position because it quickly cycles from fully closed to fully open.

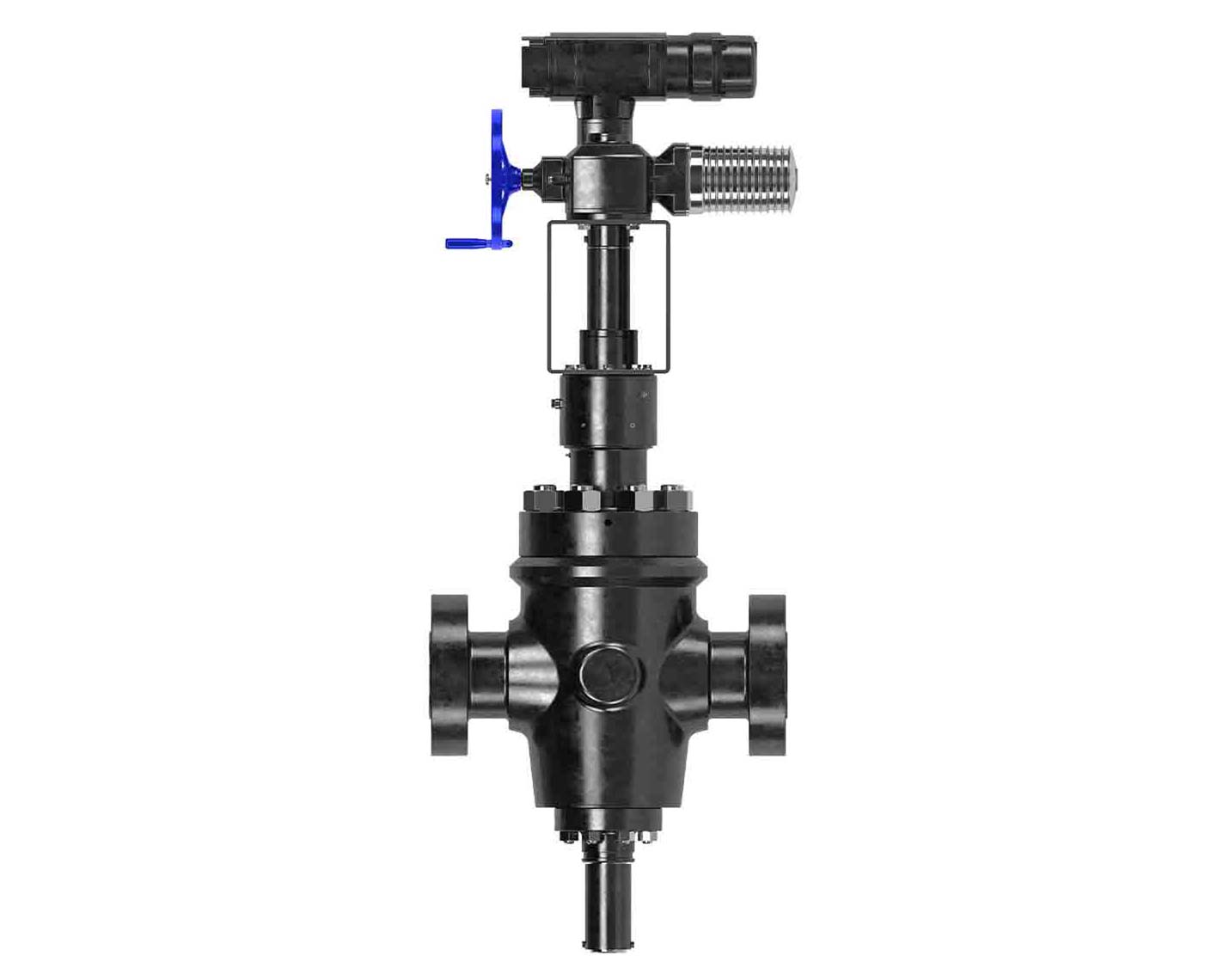

The FLS-DA2-Frac API 6A double-acting actuated gate valve offers all the same metal sealing features, with the addition of a double-acting hydraulic actuator for fast, positive, remote actuation. It remains in position should hydraulic power failure occur.
The bidirectional FLS-Frac API 6A slab-style gate valve offers flow direction versatility and increased service life.
The fullbore, through-conduit FLS extreme service API 6A slab-style gate valve is the preferred frac valve for 10,000- and 15,000-psi working pressures with 1 13/16-in nominal bore size.
|Nominal Bore Size, in||10,000-psi Working Pressure||15,000-psi Working Pressure|
|1 13/16||FLS valve||FLS valve|
|2 1/16||FLS-Frac and FLS-DA2-Frac valves||FLS-Frac and FLS-DA2-Frac valves|
|2 9/16||FLS-Frac valve||FLS-Frac valve|
|3 1/16||FLS-Frac valve||FLS-Frac valve|
|4 1/16||FLS-Frac, FLS-R-Frac, and FLS-DA2-Frac valves||FLS-R-Frac and FLS-DA2-Frac valves|
|5 1/8||FLS-Frac and FLS-DA2-Frac valves||FLS-R-Frac and FLS-DA2-Frac valves|
|7 1/16||FLS-Frac and FLS-DA2-Frac valves||FLS-R-Frac and FLS-DA2-Frac valves|
