MA12 Series

Pneumatic diaphragm actuators

schematic line drawings of valves and pipelines on a blue background

The line of Saf-T-Gard actuators includes the MA12 Series pneumatic diaphragm actuator, which incorporates features from our field-proven products, combined with our industry-leading, innovative technology. Particular attention has been given to safety, ease of maintenance, and cost of manufacturing. Our pneumatic diaphragm actuators can be used with all manufacturers' gate valves in nominal sizes from 2 to 4 in.

The simple design and operating principle make this diaphragm actuator inherently trouble-free, avoiding most galling, misalignment, distortion, and O-ring failures. Our diaphragm actuators are interchangeable with other models in the product line, reducing the number of spare parts typically required for maintenance.

Advantages

  • Stronger actuator mounting arrangement
  • Corrosion-resistant materials
  • Superior diaphragm design
  • Flexible actuator orientation
  • Rapid closure
  • Heavy-duty compression spring
  • Simplified seal replacement
  • Actuator interchangeability
  • Fixed drift adjustment
  • Cameron seal technology

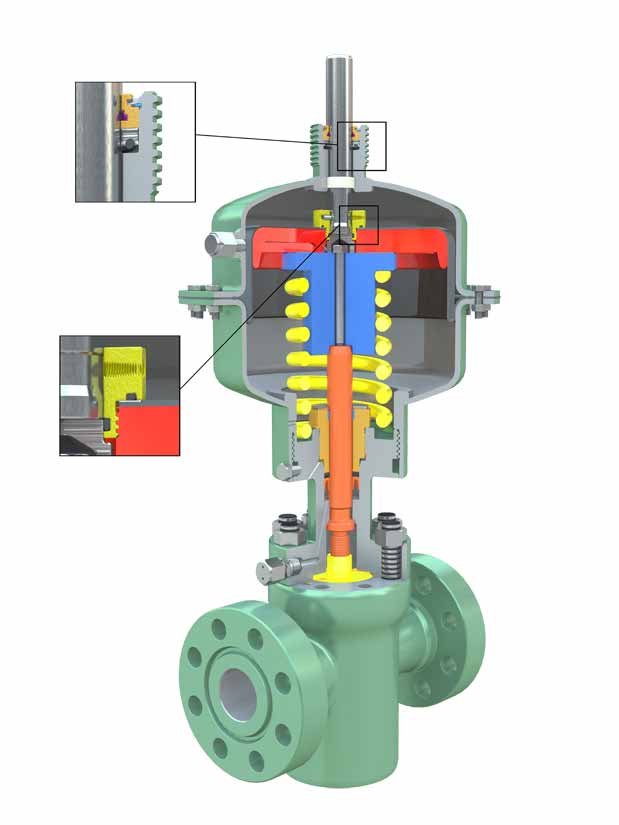

Saf-T-Gard Pneumatic Diaphragm Actuator: MA12 Series

Specifications

  • Model: MA12
  • Series: 1200
  • Specific application sizing: 1 13/16 through 4 1/16 in
  • API Specs 6A and 6D
  • AA trim standard
  • PSL 1, 2, 3
  • PR-1 and PR-2: Appendix F 2.5
  • Standard Class: 1, 2
  • Maximum operating pressure: 170 psi
  • Relief device setting: 170 psi [12 bar] at 130 degF [54 degC]
  • Test pressure: 255 psi [18 bar]
  • Spring preload at full closed position: 750 lbf
  • Product weight: 120 lbm [53 kg]
  • Operating Temperature: 0 to 180 degF [–18 to 66 degC]
Model Size, in
Operating Pressure
1200-2 2 1/16 (0.020 × WP) + 8 psi
1200-2 2 9/16 (0.024 × WP) + 8 psi
1200-3 3 1/16 (0.034 × WP) + 8 psi
1200-4 4 1/16 (0.053 × 3,000) + 5 psi
