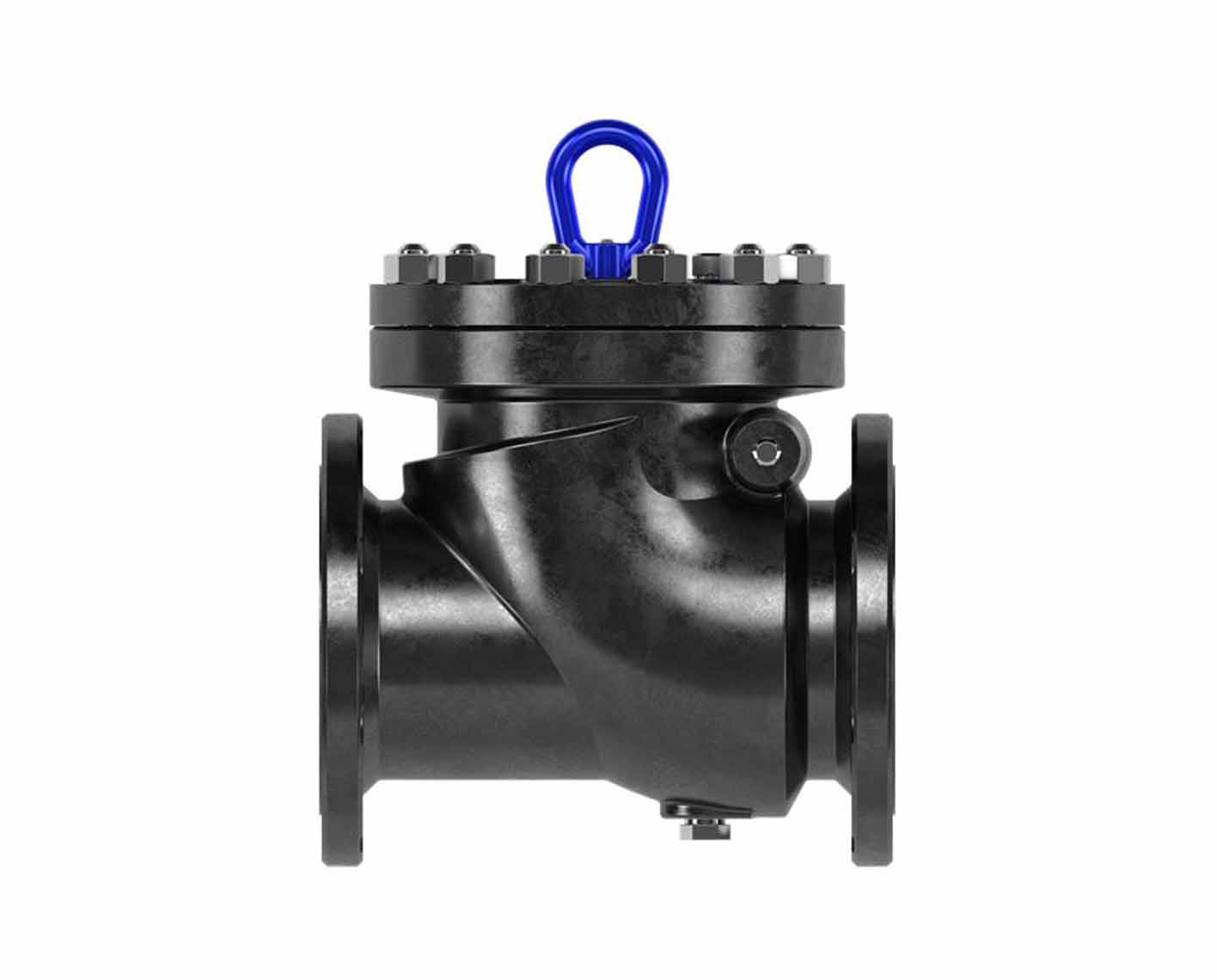

Wheatley series 500 check valves

The Wheatley™ series 500 check valve is a fire-tested flanged-end swing check valve with full-open, through-conduit design for low pressure drop and less turbulence. It has been a staple of the oil and gas industry for years.

• Downstream of pumps and compressors to prevent reverse flow
• Gas compressor stations
• Gas storage
• Gas processing stations
• Land exploration and development drilling
• Pump stations and wellhead inspection facilities
• Hydrogen service

Wheatley series 500 check valves protect your pumps by preventing backflow. The top-entry design enables inline repairs, saving time, while the fullbore through conduit reduces pressure drop and turbulence, facilitating passage of pigs and spheres. Wear and tear is transferred to an inexpensive replaceable part, extending valve life.

• Full bore
• Seals that provide bubble-tight shutoff
• Suitable for vertical flow upward or horizontal installation
• API Spec 6D monogram (Models 510 and 511 only)
• 316 stainless steel standard trim, suitable for a broad range of service conditions
• Integral and removable seat options
• Conformance with NACE MR0175 and ISO 15156
• Cast flanges for greater valve body integrity and fewer leak points
• Fire tested to API Spec 6FD requirements (except for 1-in [25-mm] valve)
