Petrel seismic sampling

Name: Petrel Geophysics Seismic Sampling
Brand: SLB

Resample seismic volumes and geobodies as properties into 3D grids.

Overview

In regions with sparse well data, seismic attributes are a key component in distributing properties in a 3D structural grid away from the wells. Petrel™ seismic sampling enables bringing seismic attribute data directly, or in the form of extracted geobodies, into the 3D structural grid.

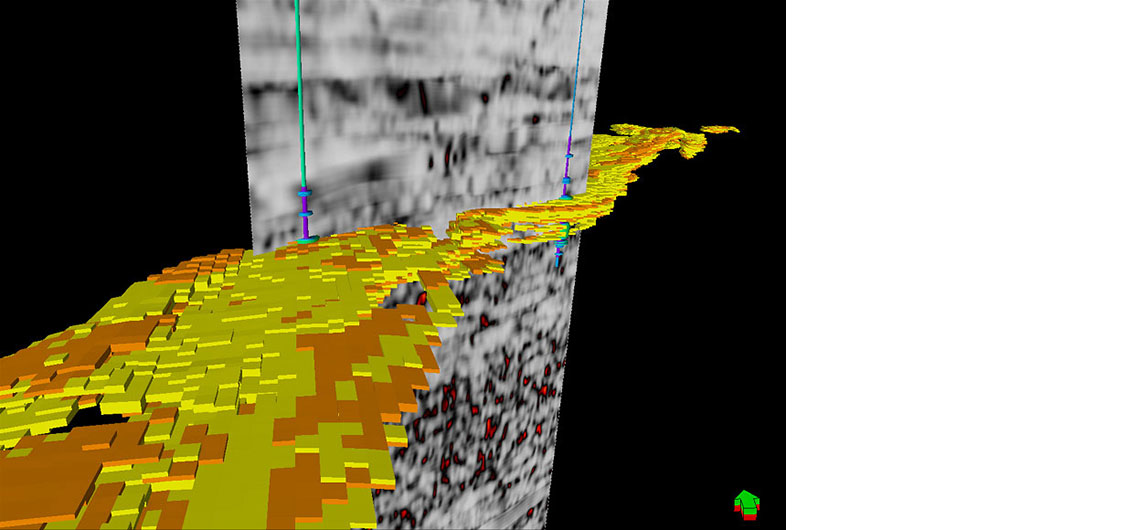

A channel running from south to north, and passing through wells, after being extracted as a geobody and sampled to the 3D reservoir grid.

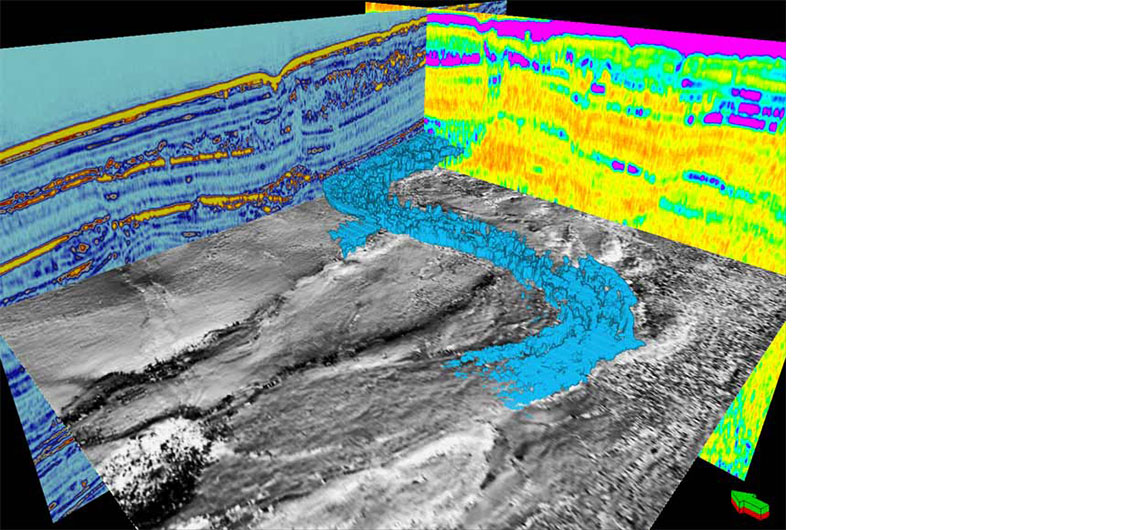

With the geobody extraction process you can isolate acoustic bodies identified with the help of seismic attributes.

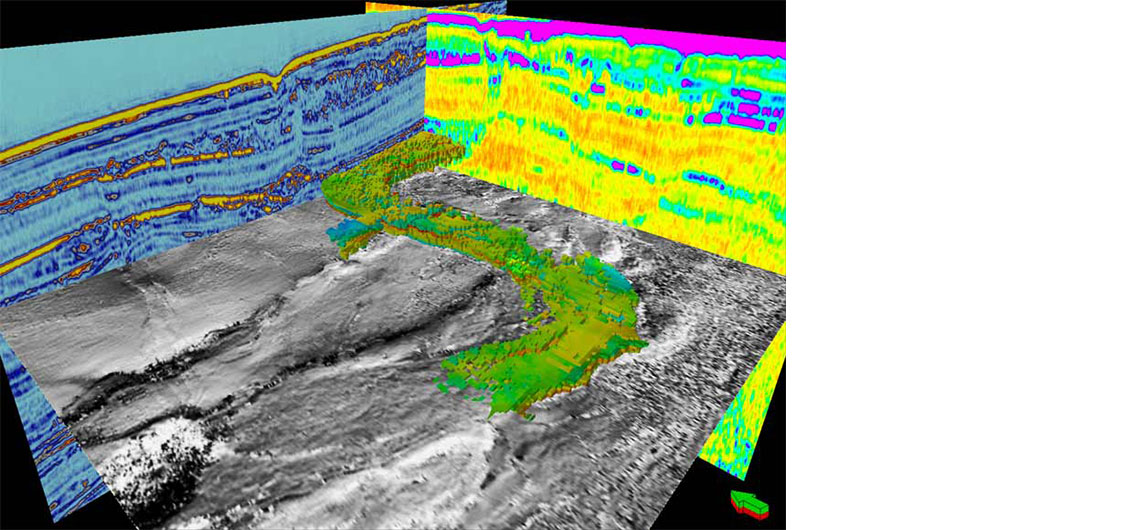

A geobody can be directly sampled to a 3D reservoir grid and property populated for further volumetrics and simulation workflows.

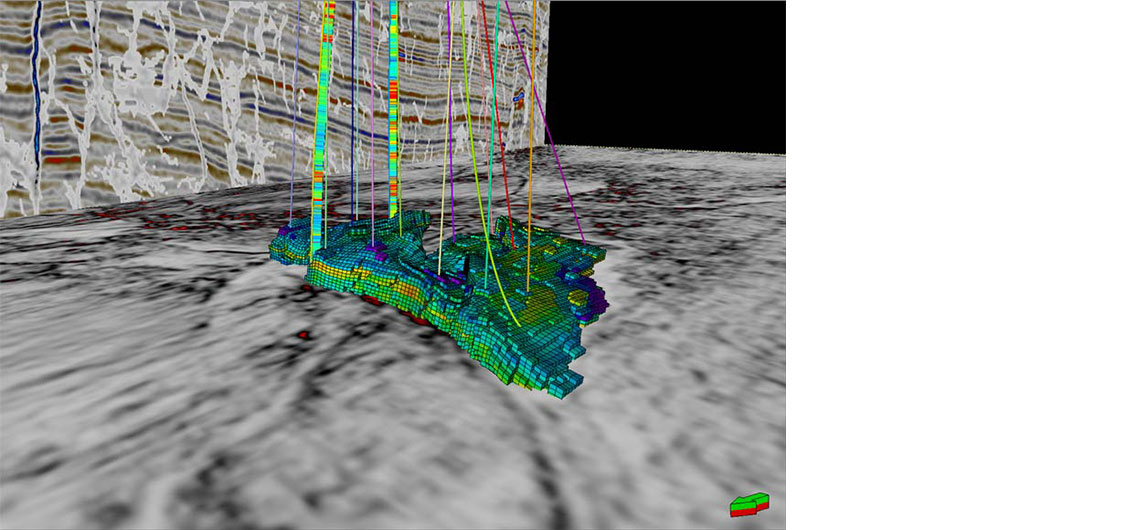

Porosity values from wells distributed in the grid cells that correspond to a sampled geobody.

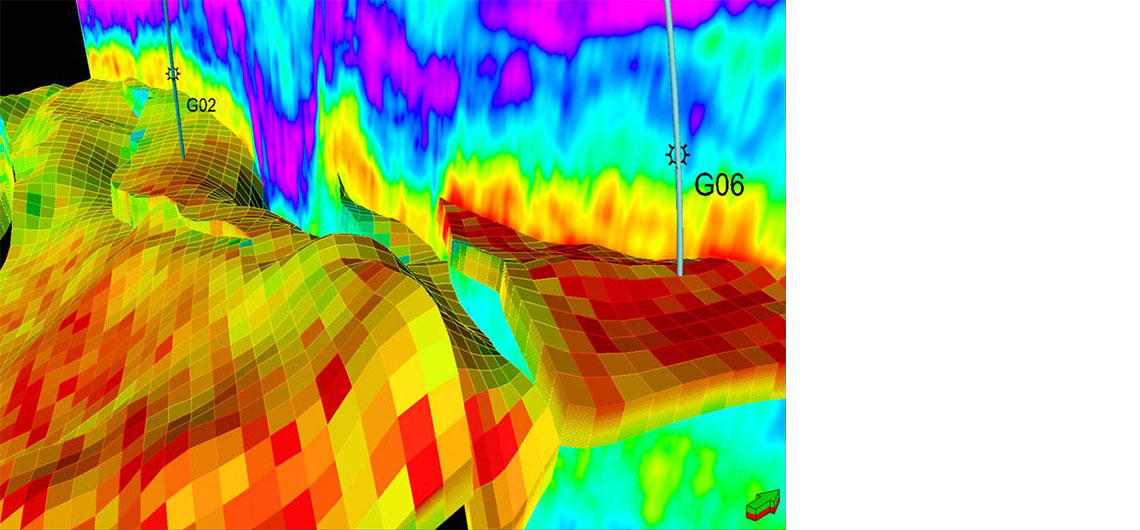

Any seismic attribute volume, such as acoustic impedance as shown above, can be sampled to a 3D grid to support geological modeling.

Applications

Resample seismic volumes and geobodies as properties into 3D grids.

Benefits

With a geobody extraction process you can isolate acoustic bodies identified with the help of seismic attributes.

A geobody can be directly sampled to a 3D reservoir grid and property populated for further volumetrics and simulation workflows.

Any seismic attribute volume can be sampled to a 3D grid to support geological modeling.

Features

Sample seismic attribute volumes into an existing 3D grid.
Use a range of averaging methods and zone filters to sample seismic attribute data into an existing 3D grid.
Sample geobody objects, extracted from seismic attribute volumes, using the Petrel Seismic Volume Rendering and Extraction module into an existing 3D grid.
Control how to map voxels of the geobody object, called geoblobs, into the cells of an existing 3D grid.
