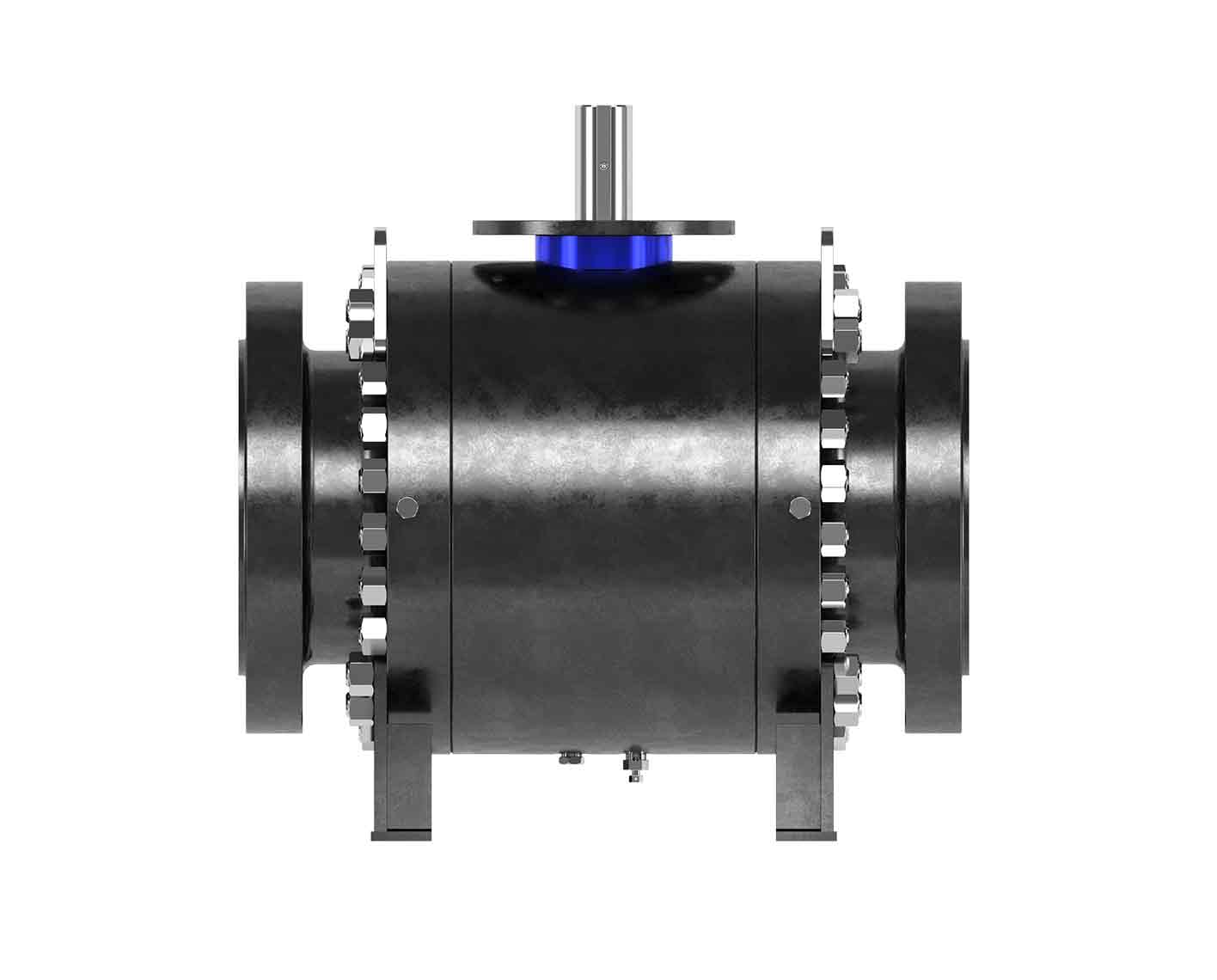

Grove B5

Grove™ B5 trunnion-mounted, side-entry ball valves are constructed of forged components bolted together in a side-entry design. The standard designs are ideal for transmission and conventional production operations. They also allow for specialty configurations required in applications such as subsea installations and LNG plants.

• Onshore operations—separation, wastewater disposal, tank battery, recovery, SAGD, and oil sands applications
• Pipeline operations—transmission, emergency shutdown, pigging, and pump and compressor station applications
• Liquid tank storage—tank storage isolation, custody transfer, metering skids, and loading and unloading applications
• Offshore operations—hydrocarbon production, separation, processing and compression, and storage, metering, and exporting
• Subsea operations—fluid control and isolation for manifolds, flowlines, and riser
• Hydrogen, CCUS, renewable fuels, and ammonia service

• Superior stem sealing performance compliant with low-emissions environmental standards
• Bolted construction that permits disassembly for field repairs
• Low maintenance and cost of ownership
• Extended service life and sealing reliability

• Antistatic device
• Bearing blocks that absorb the pressure load on the ball
• Body relief valve for overpressure due to thermal expansion of liquids
• Built-in sealant injection system for emergency seat seal
• Double-barrier stem seals
• Double-sealing barrier in both directions
• Integral stop in the adapter plate for a permanent reference to open and closed positions
• Large-diameter, short, coupled trunnions that reduce unit bearing loads and operating torque
• Metal-backed, self-lubricating PTFE sleeve bearing and thrust washers that reduce torque and extend service life
• Nickel plating for trim parts
• Primary metal-to-metal seal and secondary protected synthetic O-ring seal
• Stem that is separated from the ball, delivering an antiblowout design
• Trunnion-mounted ball for ease of operation at high pressure
