Geothermal Services

Enhancing project efficiency, effectiveness, and profitability

The formula for success in geothermal project is an informed, interdisciplinary approach that brings together innovative science and engineering, practical experience, and hands-on project management.

The acquisition of GeothermEx in 2010 places Schlumberger in a unique position to serve the geothermal industry. Our work in hundreds of geothermal fields in more than 50 countries means that no company is better equipped for geothermal success than Schlumberger, which has been working in the subsurface since 1922.

We cover the full spectrum of geothermal operations—from exploration to drilling and testing to project management, resource monitoring, and operational support.
colorful geothermal
Accelerate exploration
by integrating geology, geophysics, geochemistry and geomechanics analyses
Improve well targeting
with robust conceptual models
Reduce uncertainty
by folding in exploration and drilling data to geothermal modeling and reservoir simulation
Optimize drilling and operations
with comprehensive solutions from wellsite selection through design, drilling, testing, and monitoring

Enhanced Geothermal Systems (EGS)

Reservoirs with subcommercial permeability can be made economically viable with hydraulic stimulation techniques. Schlumberger’s extensive experience with tight shale projects has resulted in expertise and technologies that are directly applicable to EGS developments.

Our unique experience in the domain is leveraged to improve the effectiveness of fracture network enhancement and heat exchange in EGS reservoirs.

Our approach to EGS

  • Wellbore image logging, processing, and interpretation
  • Geomechanics and stress field analysis
  • Core testing for mechanical and petrophysical properties
  • Design and implementation of multizone EGS well completions
  • Stimulation planning, implementation, and monitoring

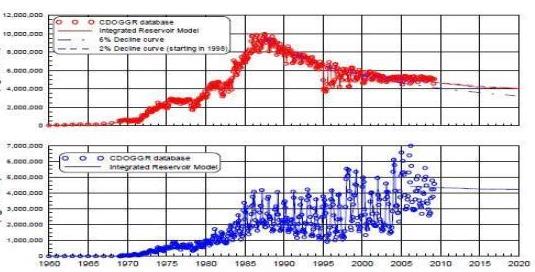

Reservoir-wellbore-pipeline simulation in Geysers Field, California
We developed an integrated model for the Northern California Power Agency that combines reservoir simulation with mathematical modeling of the wellbores, pipelines, and power plants, making it easier to quantify the impact of operational augmentations.
READ TECH PAPER

Independent, accurate analysis

Every geothermal project has uncertainties, particularly at the early stages of development. Even during later stages, the most significant variable in any geothermal project is the resource itself. Assessing resource risks and opportunities is crucial to long-term success.

When government agencies and financial institutions need independent third-party assessments of the capacity, sustainability, and value of geothermal resources, many come to us for

  • national and regional evaluations of geothermal power potential
  • technical support for policies and financial incentives to enable more geothermal power
  • identification and mitigation of geothermal resource risks
  • in-depth resource analyses and numerical simulations of geothermal reservoir performance
  • financial modeling and project valuations.

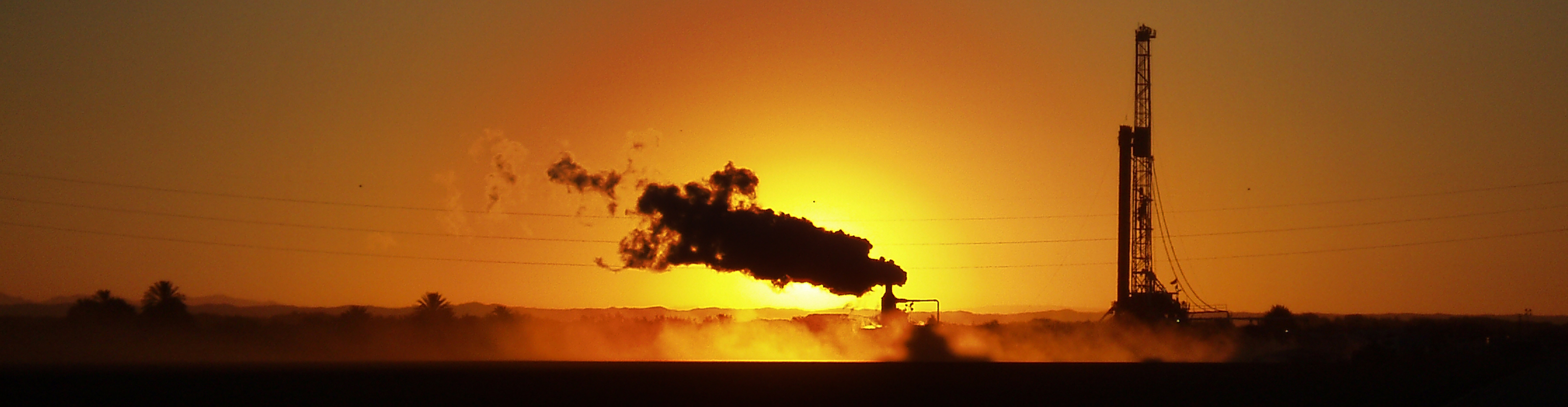

snow rig, plume, geothermal

Key technology in extreme conditions

Geothermal Need Our Solution Advantages
Technical support over project life cycle
GeothermEx, a Schlumberger company

More than 45 years of experience in the geothermal domain

Integrated Drilling Services
Integrated drilling and completions technologies, project management, well design, remote real-time support, and the entire scope of well construction; available comprehensive lump-sum turnkey (LSTK) business model that reduces drilling time and limits total well cost
Geophysical surveys
Integrated electromagnetics surveys
Comprehensive data acquisition, processing, software, and simultaneous inversion
Drill bit performance
Xplorer Kaldera high-temperature seals on Xplorer premium roller cone drill bit

33% improvement in run length at higher temperatures; up to 37% increase in on-bottom time

StingBlade conical diamond element bit
Improved footage, ROP, and BHA stability
Drilling fluid
DRILPLEX mixed metal oxide water-based drilling fluid system
Unequaled solids suspension with easy screening, even at high flow rates
Light polymer fluids, such as the KLA-SHIELD enhanced-polymer water-based drilling fluid system
Wellbore stability and preservation of fracture permeability
Aerated drilling fluid systems
Reduced formation damage and wellbore skin damage in production interval

Directional control
Extreme electromagnetic MWD tool High-temperature availability; LCM tolerance; high flow capacity; superior results in underbalanced drilling
PowerPak steerable motors Greater torque and differential pressure; high-temperature elastomers; compatibility for aerated drilling; adjustable bend housing
HF5000 and HF6000 stabilizers Suitable for harsh geothermal environment and highly resistant to wear abrasion
Long-term cement integrity ThermaSTONE thermally responsive cement system Thermally responsible cement capable of 2% expansion (similar to steel casing), reducing cement sheath stress and risk of failure in set cement
Formation evaluation and fracture characterization
FMI fullbore formation microimager
Rated to 350 degF [177 degC]
MicroScope HD resistivity- and high-definition imaging-while-drilling service Logging and imaging in less-stable and higher-temperature wellbores

Electric submersible pumps (ESPs)
REDA Maximus ESP system Rated to 330 degF [165 degC]; 1,500 hp; max. flow rate of 2,800 gpm [175 L/s]
REDA Hotline Xtend extended-capability high-temperature ESP Rated to 482 degF [250 degC]; 250 hp; max. flow rate of 700 gpm [45 L/s]
Distributed temperature sensing (DTS)
WellWatcher BriteBlue HT high-temperature multimode DTS fiber

Rated to 572 degF [300 degC]

Downhole pressure monitoring
WellWatcher TruOptic high-temperature fiber-optic pressure gauge

Rated to 482 degF [250 degC]

Geothermal reservoir simulation
Petrel Reservoir Engineering plug-in Unparalleled experience in modeling a wide variety of thermodynamic conditions and development strategies (more than 100 separate fields)
ECLIPSE Thermal plug-in
Dynamic wellbore and pipeline simulation OLGA dynamic multiphase flow simulator Modeling thermal transients and nonsteady-state flow in production and injection systems during operations (including startup and shutdown)
