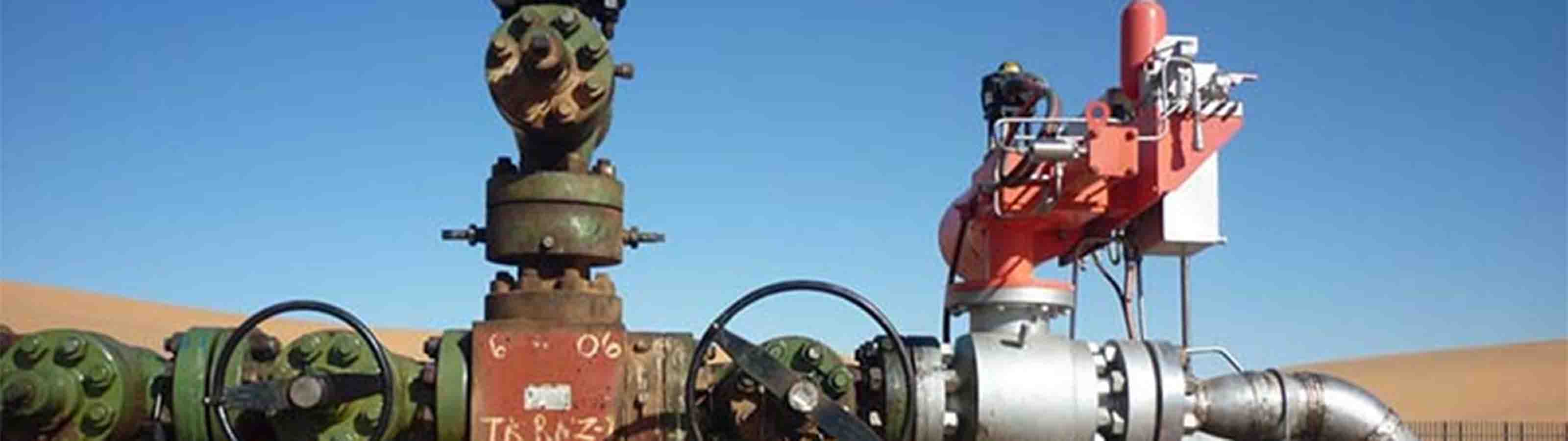

Hydraulic LEDEEN Actuators

Quarter-turn and linear designs

Quarter-turn

Quarter-turn hydraulic actuators are used for on/off or modulating control of any ball, plug, or butterfly valve utilizing hydraulic actuator supply.

Linear

Linear hydraulic actuators are used for on/off or modulating control of any gate valve or rising stem ball valve utilizing a hydraulic actuator supply.

Features

All models available as double acting or spring return
Open and close travel stops, ± 3 degrees minimum
Local position indication
Suitable for SIL3 environments

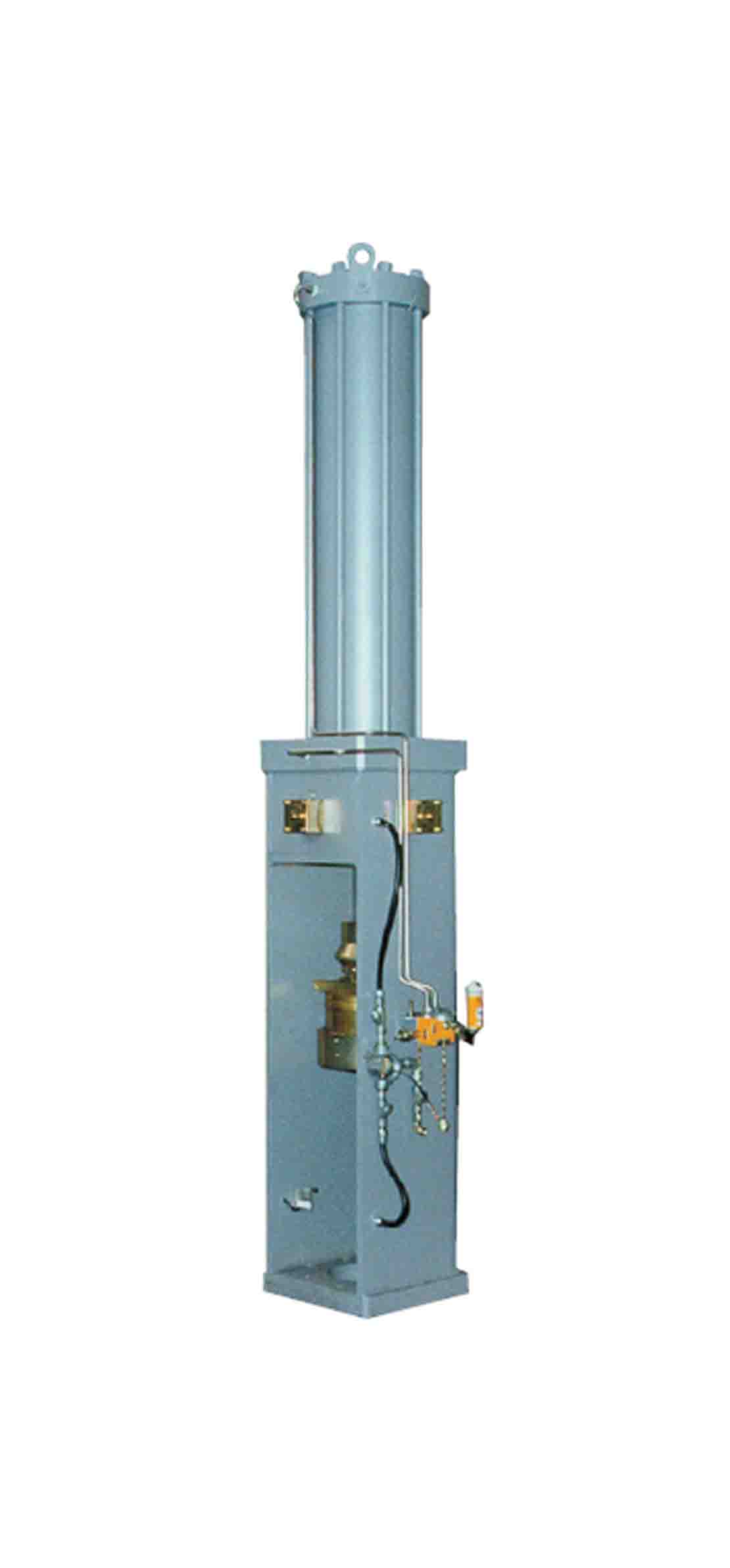

Linear hydraulic LEDEEN actuator.

Core	Series	Torque or Thrust Outputs	Pressure Range (Gauge)	Temperature Range, degF [degC]
Quarter-turn	GS Series; SY Series	5,700,000 lbf.in [644,000 N.m]	145 to 3,000 psi [10 to 207 bar]	–22 to 212 degF [–30 to 100 degC]
Linear	LH Series	4,400,000 lbf [19,500,000 N]	145 to 3,000 psi [10 to 207 bar]	–22 to 212 degF [–30 to 100 degC]

DYNATORQUE SD

Declutchable manual override

Used with pneumatic, hydraulic, and backdrivable electric actuators.

View All

Brochure SY Series LEDEEN Actuators

Pneumatic and hydraulic actuators.

Brochure GS Series LEDEEN Actuators

Pneumatic and hydraulic actuators.

Brochure LEDEEN Actuators and Control Solutions

Innovative solutions for pneumatic, hydraulic, gas-over-oil, direct gas, and subsea applications.

Catalog Quarter-Turn Hydraulic LEDEEN GS Actuator

Installation, operation, and maintenance manual.

Catalog Quarter-Turn Hydraulic LEDEEN SY Actuator
