Gas-Over-Oil LEDEEN Actuators

Consistent engineering design and efficient modularity

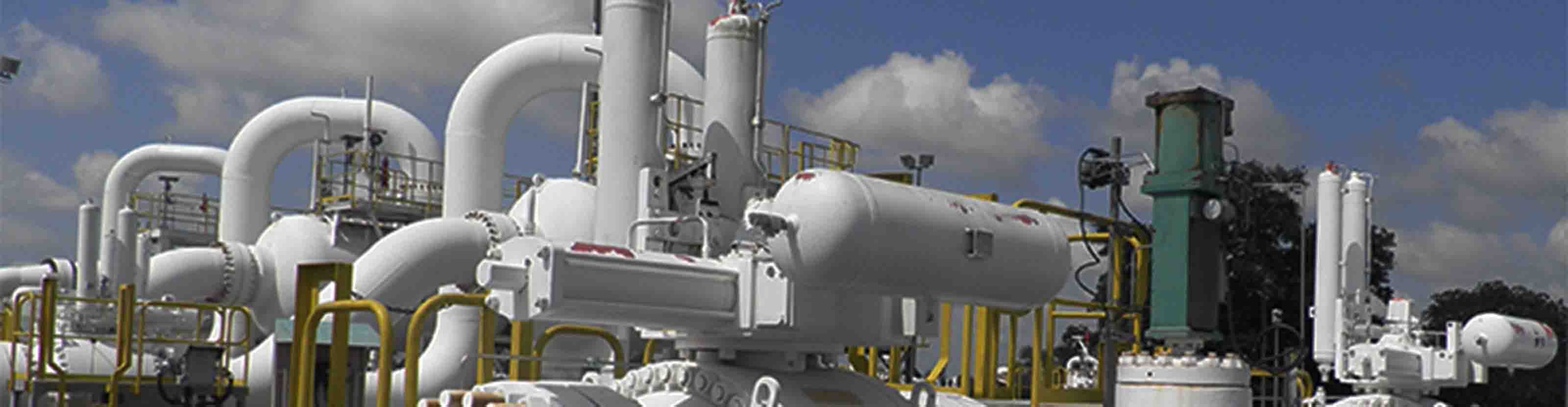

LEDEEN equipment outside at a treatment facility.

Quarter-turn

Quarter-turn gas-over-oil actuators are used for on/off control of any natural gas transmission ball or plug valve utilizing a high-pressure natural gas or nitrogen actuator supply.

Linear

Linear gas-over-oil actuators are used for on/off control of any natural gas transmission gate valve utilizing a high-pressure natural gas or nitrogen actuator supply.

Features

  • All models available as double acting
  • Open and close travel stops, ±3° minimum
  • ASME/PED gas-over-oil pressure vessels with dipstick, filter, and adjustable speed controls
  • Suitable for SIL3 environments

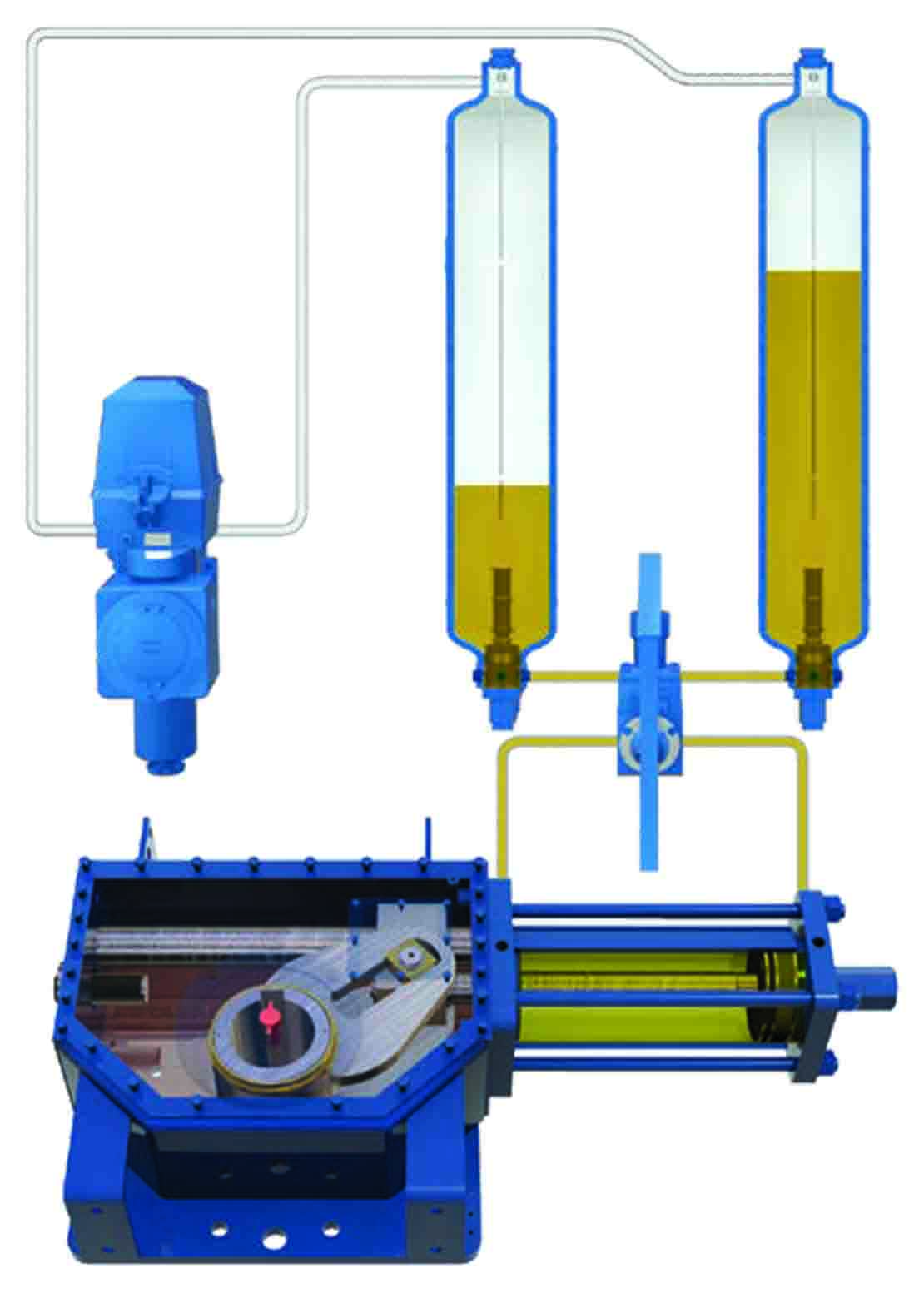

Schematic of typical gas-over-oil configuration.

Specifications

Core Series Torque or Thrust Outputs, lbf.in [N.m]
Pressure Range (Gauge), psi [bar]
Temperature Range, degF [degC]
Quarter-turn GS Series;
SY Series
5,700,000 [644,000] 145 to 1,500 [10 to 104] –22 to 212 [–30 to 100]
Linear LH Series;
GH Series
4,400,000 [497,000] 145 to 1,500 [10 to 104] –22 to 212 [–30 to 100]
