Metering and Automation Systems

Measurement of injected fluids and multiphase well production

Measuring injection and production rates accurately, reliably, and remotely

Flowmetering is one of the most important measurements in the oil and gas industry, quantifying well and process performance with mass flow rates or volumetric flow rates.

You need this data in real time, wherever you are, without long trips to remote locations. Injection and production rates help inform decisions in well production optimization, reservoir management, hydrocarbon transfers, chemical injection, gas lift injection, annular pressure control, lease and tax payments, and more. That means high reliability and accuracy in the metering equipment are paramount, no matter the application.

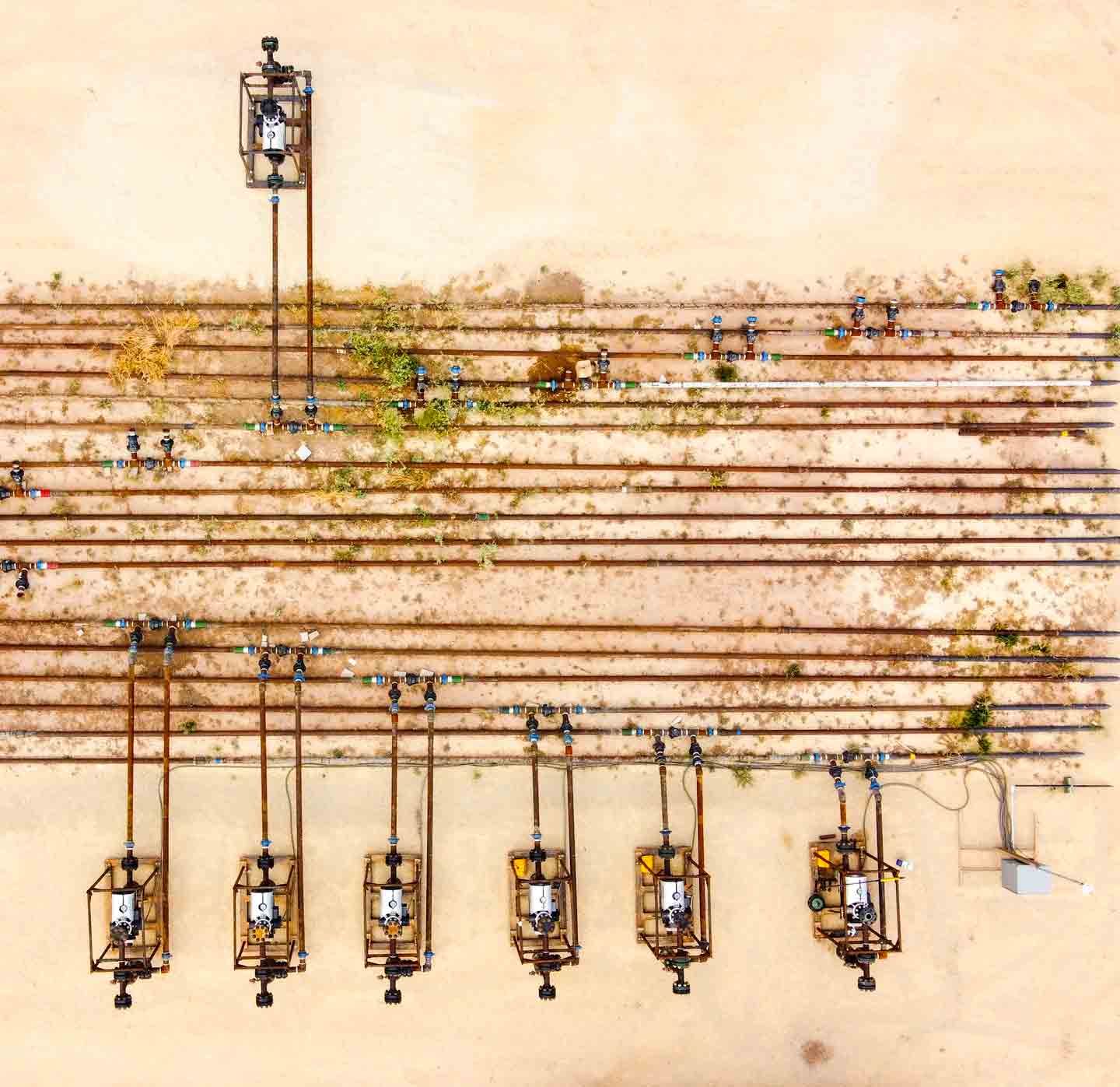

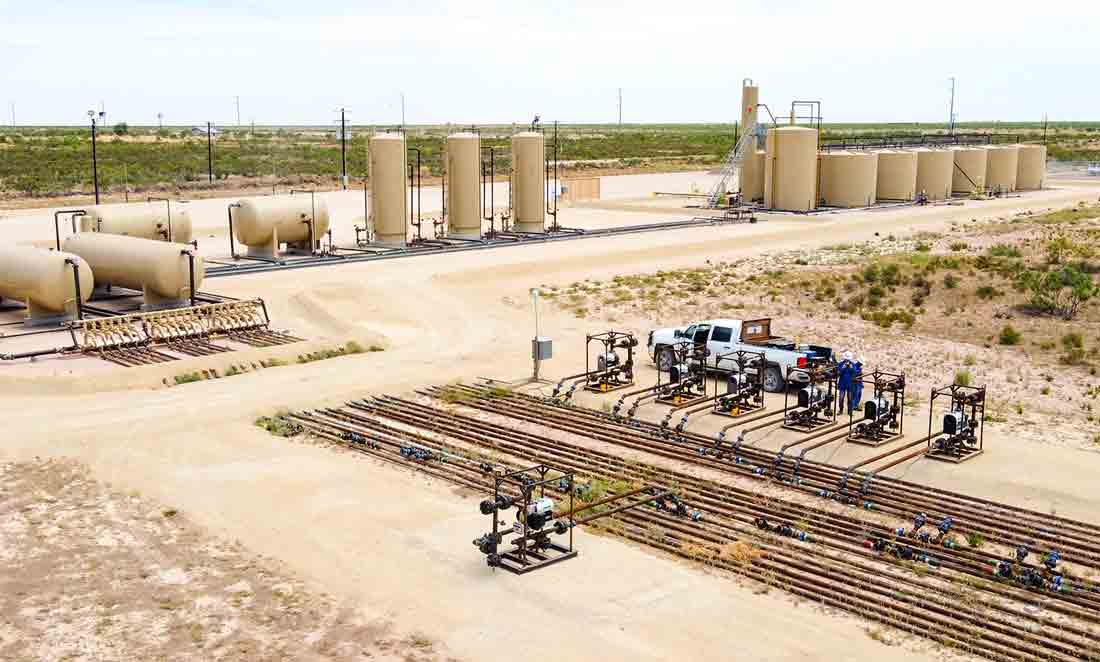

Vx Spectra installation at a Summit site

Vx Spectra surface multiphase flowmeters quantify flow on an oil and gas location. Vx multiphase well testing technology is available topside and subsea.

Ultrasonic Flowmeters

Measure the velocity of liquid inside a pipe using sound waves. Inexpensive clamp-on models are less accurate than inline models.

Differential Pressure Flowmeters

Calculate flow rate using Bernoulli’s equation for the pressure drop across a restriction in the flow path.

Multiphase Flowmeters

Measure multiphase flow using a gamma detector in the venturi section for continual measurement without separation.

Coriolis Flowmeters

Measure inertia of fluid through oscillating tubes to calculate mass flow rate. Very high accuracy but at a high cost, and limited to smaller pipe sizes.

Thermal Flowmeters

Measure injected heat dissipation in a gas flow stream. Most accurate in minimally complex gas compositions.

Vortex Flowmeters

Measure fluid velocity using the vortex shedding principle. Can be used in gas, liquid, and steam flows.

Challenges in multiphase metering and automation

Because metering data are used in so many oil and gas applications, inaccurate or incomplete measurement of multiphase flow hinders reservoir performance prediction, production optimization modeling, chemical treatment scheduling, process and pipeline planning, and enhanced oil recovery (EOR) activities.

Being able to measure performance of individual processes is important, but you also need to have the ability and intelligence within the technology to maintain your targeted flow rates. This ensures stable injection and production rates, which reduces operating costs while maximizing well performance.

Metering and Automation Systems Offerings

Modum Flow

Flowmetering system

Calculate production flow in real time to enable data-informed decisions about well testing frequency.

Modum Gas

Gas metering control system

Manage gas injection rates, maintaining ideal flow rates, reducing gas lift costs, and optimizing production

Modum Chem

Chemical injection metering control system

Reduce chemical costs and environmental impact by maintaining optimal injection rates for flow assurance.

AquaWatcher Surface

Water salinity sensor
