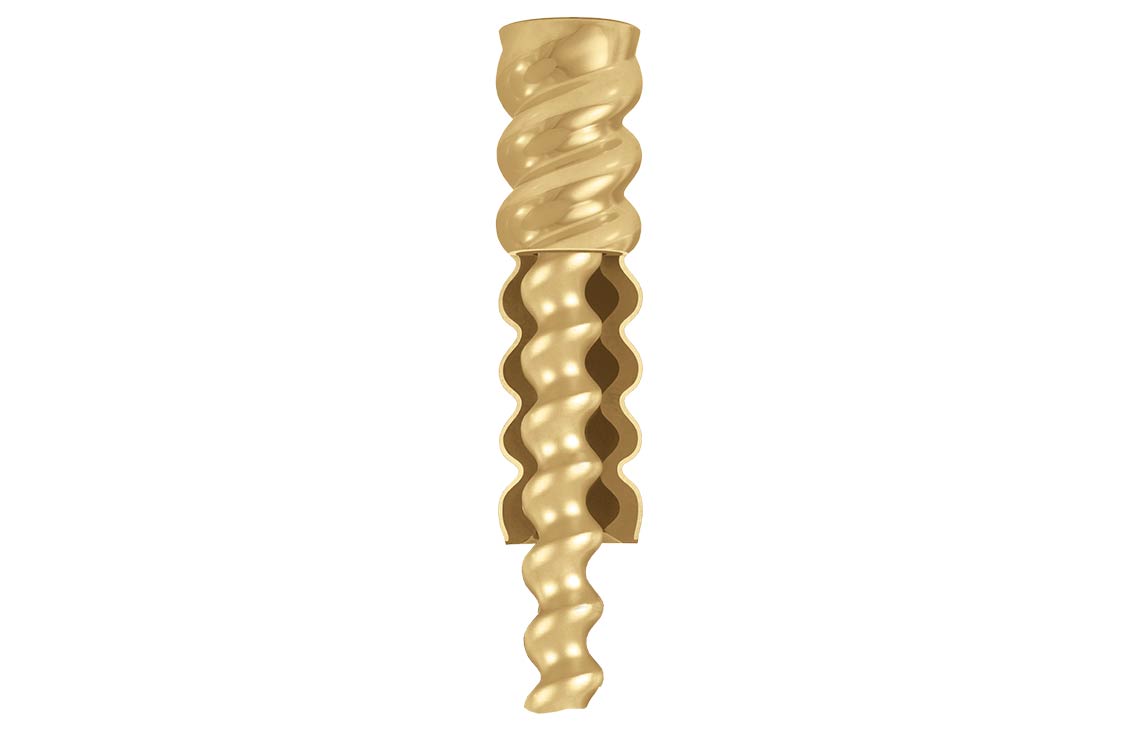

Progressing Cavity Pump (PCP) Systems
Deliver a consistent head capacity
Select from a range of PCP models, elastomers, and rotor options for heavy, medium, and light oil wells and thermal applications.

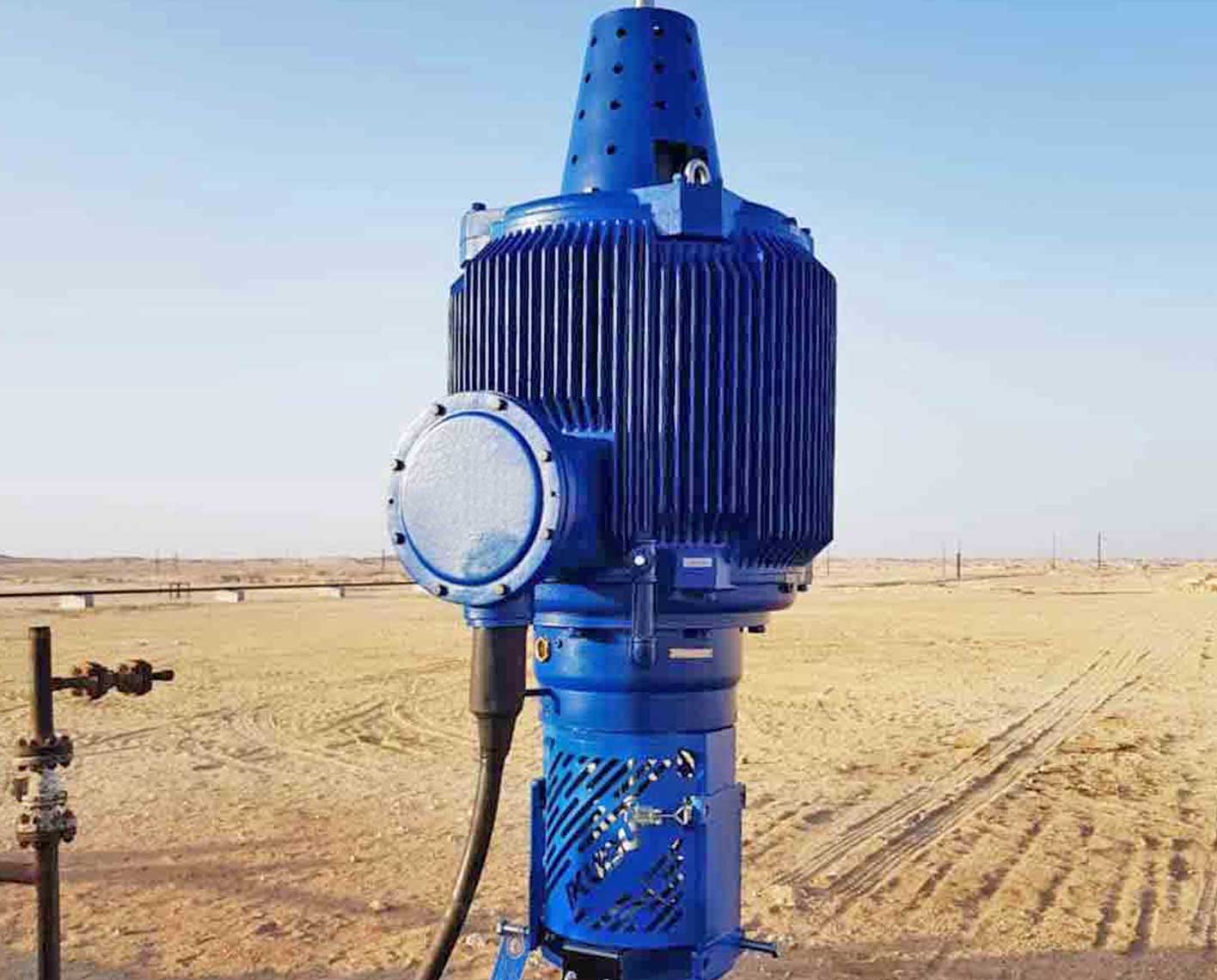

Permanent magnet motor surface drive system
Maximize safety and energy efficiency of progressing cavity pumps (PCPs)
Overview
Deliver reliable horsepower in PCP operations
KUDU hydraulic or electric driveheads are specifically designed for progressing cavity pump (PCP) installations in heavy to light oil, gas dewatering, and thermal operations. These driveheads are either a vertical shaft, bearing box type, or a right-angle drive gearbox type. Ranging up to 200 horsepower, the KUDU driveheads are proven performers available in four models and meet critical safety and environmental standards.
Applications
Combine four components for maximum performance
The system comprises a direct-drive PMM that provides the driving force for a PCP; a control system that enables starting, stopping, and full forward and backward management of the motor; a clamp to transmit the power from the motor shaft to the polished rod, sucker rod, and rotor of the PCP; and a braking resistor cabinet that dissipates the kinetic backspin energy as heat.
The system is operated by either basic control panel or multifunction KUDU Pump Manager well optimization unit. The control panel can be outfitted to display the input current from an independent ampere meter and the speed by revolution meter.
Benefits
Eliminate power spikes to protect PCP components
The system delivers power factor up to 0.94 to eliminate power spikes on startup. It further helps improve operations safety with backspin braking protections, which enable safer stops and starts in midbackspin to restart production more rapidly.
The system also extends the service life of sucker rods and polished rods by enabling soft starts and soft stops that reduce mechanical shock.
Features
Temperature range:
–40 to 55 degC [–40 to 131 degF]
