HVAC System

Designed for continuous operation

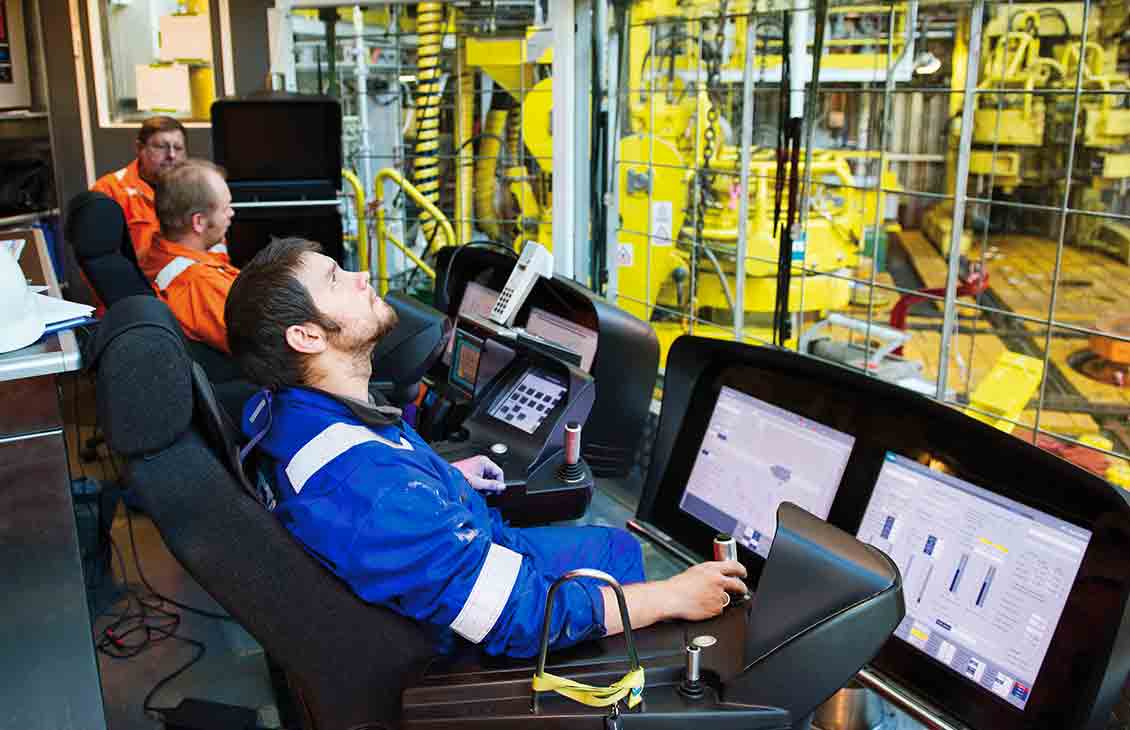

Power systems control station.

Cameron HVAC systems are designed for continuous operation, with 100% redundancy in the supply fans.

The HVAC system comprises

  • supply fan skid with two redundant fans
  • condenser unit for outdoor mounting in hazardous areas
  • internal fan coils
  • space for free-issued items.

The HVAC system is a pressurization system, which classifies the drilling control room (DCR) as a pressurized room according to IEC 60079-13.

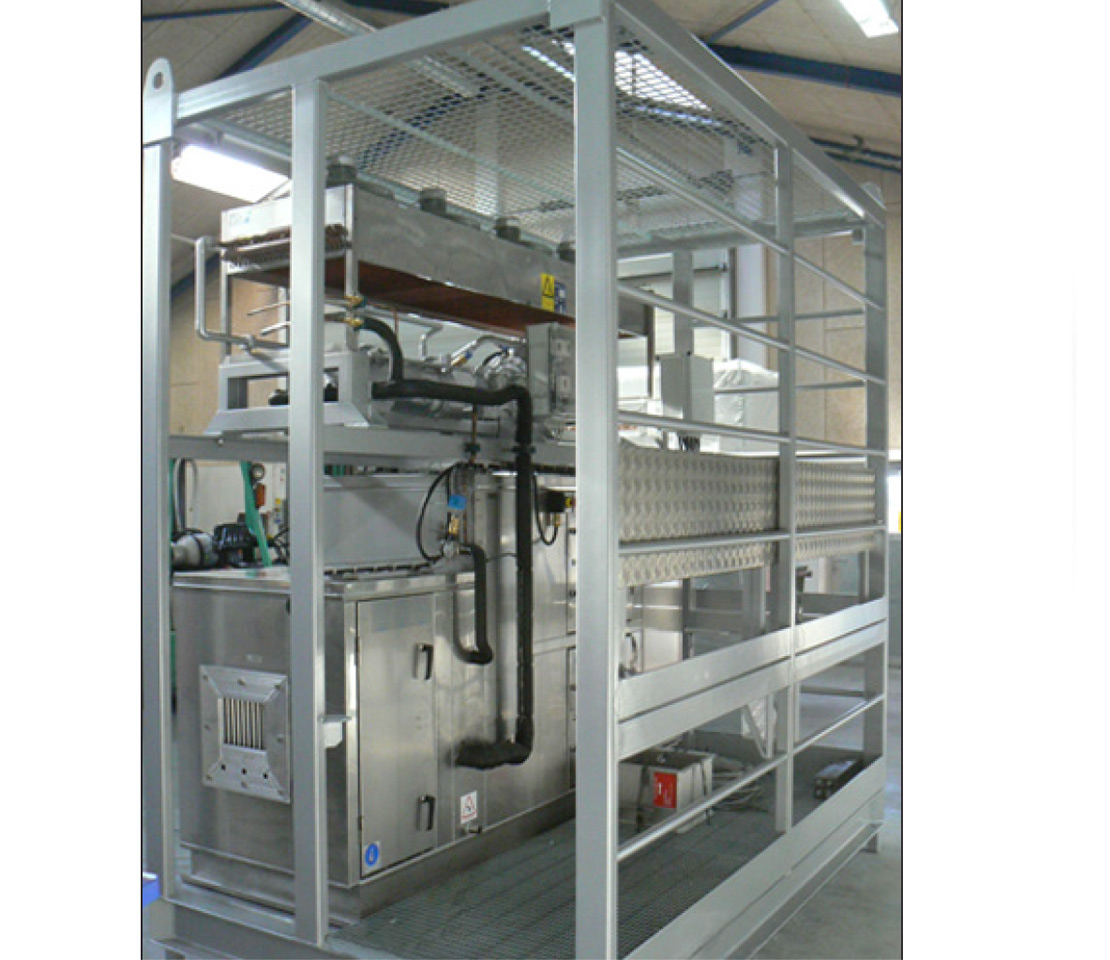

Cameron HVAC system


  • Custom designed to fit any DCR
  • Fully automated control and alarm system
  • Interfaceable with rig control, fire, or gas system
  • Forced ventilation system (safe area by ventilation)
  • Only one fan running at a time, keeping the other fan on standby
  • Automatic switchover in case of failure
  • Fire dampers on all penetrations of the DCR
