MP Series

Pneumatic piston actuators

Two men operating a valve.

Cameron MP Series pneumatic piston actuators are designed to be used with most manufacturers’'gate valves. Recommended when instrument air is available, the MP actuator offers a reliable and cost-effective option when a robust actuator is required.

  • Fail-safe design
  • Rising stem design
  • Cameron sealing technology
  • Actuator interchangeability
  • Fixed drift adjustment
  • Corrosion-resistant materials
  • Optional devices and accessories

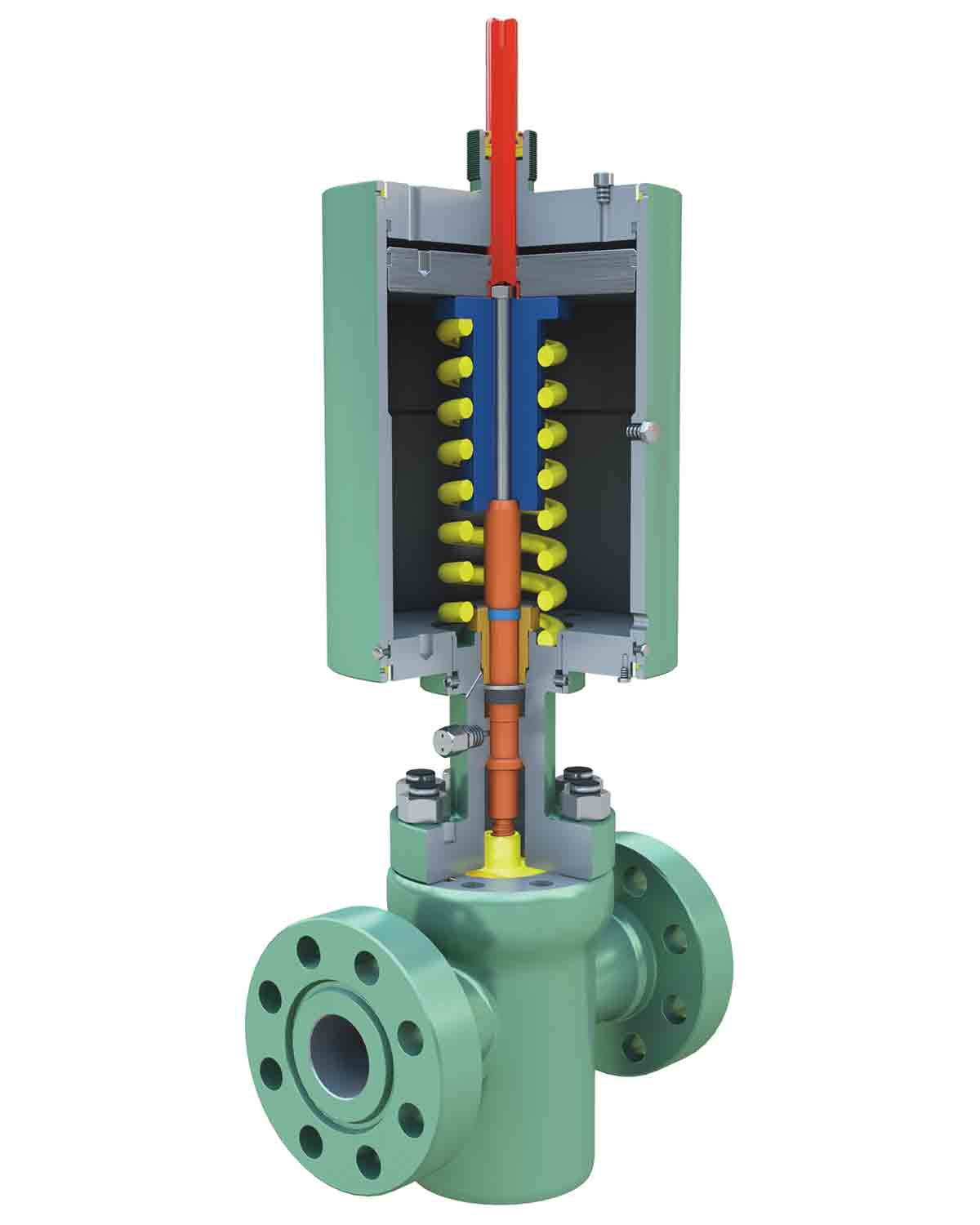

Saf-T-Gard Pneumatic Piston Actuator - MP Series

Actuator specifications

  • API Spec 6A actuators for use with 1 13/16- through 6 3/8-in nominal gate valves
  • API Spec 6A Appendix F, PR-2 qualified
  • Temperature rating: –20 to 250 degF [–29 to 121 degC]; other temperatures available
  • 13- through 17-in standard diaphragm sizes for these valve groups
  • 270-psi [18.6-bar] maximum operating pressure
  • 450-psi [31-bar] test pressure
  • Standard 1/2-in-NPT inlet port
  • Wide range of options and accessories available

Bonnet specifications

  • Standard stem and bonnet material
  • PSL 1, 2, 3, and 4 available
  • Standard bonnet backseat test port provided
  • Standard packing leak indicator port provided
