Studio features | SLB

Studio features

Learn more about the latest features of Studio

Studio new features
Studio new features
Latest features and announcements
Return to Studio E&P knowledge software

Improved collaboration with increased data footprint

Triangular mesh, non-editable triangular mesh, and corridor cross-section objects are now fully supported by the Studio software allowing the data to be transferred between the database and project in the Petrel software project improving collaboration workflows within teams. CRS and unit conversion are handled as standard by the transfer between repository and the Petrel software project.

Data managers can find the new records stored under the “shape” category in the Studio Manager data table, where existing tools allow the data to be managed as usual.

Studio2020 increased data footprint
Brief video on Studio 2020's increased data footprint
Studio2020: Increased flexibility finding data
A brief video on Studio 2020's increased flexibility finding data

Increased flexibility in finding data

The relative object extent is a new filter for “Find” the indexed based search tool available in the Petrel E&P subsurface software and Studio Manager application. The Studio Find filter enables the user to focus their search based on aerial extent of the min/max coordinates of the object.

The ability to filter data by a specific relative extent allows a user to find data in different ways. During indexing the object relative extent is calculated, the values are relative but can be roughly compared with the diagonal length of the bounding box in kilometers. One workflow that benefits from the new filter is when used in combination with a spatial condition which returns any data which lies within or intersects the area; It is now possible to remove the regional objects which always intersect with the spatial area and clutter the search results. Another workflow using the filter enables users to find objects with a similar size or extent.

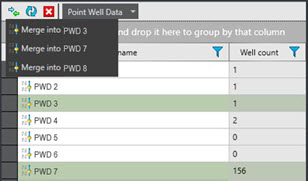

Smart logic to consolidate and merge data

The global data app within Studio Manager now supports the merging of point well data. Data managers can consolidate point well data without needing to launch the Petrel E&P subsurface software and manually combine the data.

Multiple point well datasets can be merged into a single target dataset in a single operation. The merge uses smart logic for user-defined attributes to prevent proliferation of duplicates, whereby the target set of user-defined attributes are always kept and will be updated from matching attributes in the source datasets.

The new functionality saves data managers considerable time when consolidating this data. The previous workflow required the data to be transferred into the Petrel software, merged manually, deleted in the repository, and transferred from the Petrel software back to the Studio E&P knowledge software.

Smart logic to consolidate and merge data

Studio 2023.8 Features

Petrel 2023.8 and Studio 2023.8 release announcement



Summary of Studio™ E&P knowledge software updates:

  • To improve the user experience when working with projects with a high number of wells, the tree in the Refine well selection dialog box in Petrel is collapsed by default.
  • User can now select multiple database and repository refresh tasks by using the Select all check box in the table header in the Database Refresh app.

Summary of Petrel updates:

Petrel 2023.8 is mainly a quality and stability improvement release where we have focused on ensuring the platform is robust and easy to use. In this release, new functionalities have also been added based on popular feature requests. Please read the release notes to find the full list of improvements and fixes delivered.
