ReacXion Nano

Compact fully dissolvable frac plugs

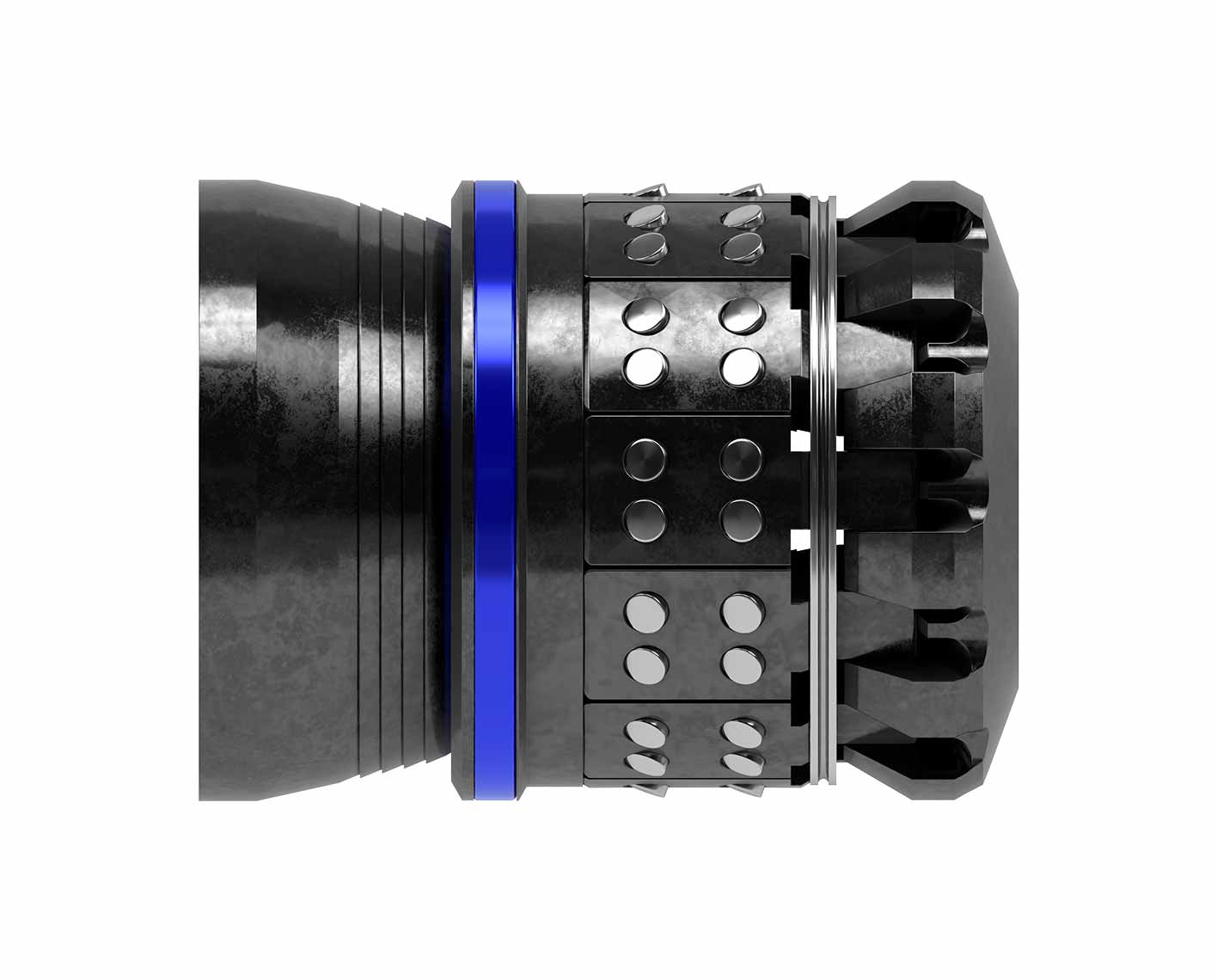

ReacXion Nano compact fully dissolvable frac plug.
minus

Our shortest frac plugs for faster dissolution and improved economics

ReacXion Nano™ compact fully dissolvable frac plugs easily dissolve in the presence of common wellbore fluids after fracturing is complete, considerably simplifying cleanout operations (by eliminating milling) and reducing time to production. The time savings result in reduced diesel consumption and hence, lower CO2e emissions. These shorter plugs, necessitating tighter casing weight ranges, result in improved economics and faster dissolution.

  • Plug-and-perf multistage fracturing operations in freshwater or brine
  • Difficult milling conditions, such as extended-reach laterals, highly deviated wells, and underpressured reservoirs
  • Isolation for refracturing operations

How ReacXion Nano frac plugs improve plug-and-perf completions

ReacXion Nano compact fully dissolvable frac plugs require only minimal field assembly or can be delivered preassembled with Unity™ single-use wireline adapter kit and frac plug setting tools to eliminate the potential for human error and operational delays. An antipreset design eliminates the risk of presetting while pumping into the well, while an optional pumpdown ring improves fluid efficiencies, providing additional time and cost savings.

Shorter plugs that provide consistent, repeatable setting and isolation plus fullbore production without milling

Load-transfer technology integrated into the frac plug design uses the casing as a supporting member, transferring the load from the ball to the ball seat, through the slips, and onto the casing. Pressure exerted on the ball during stimulation continues to reinforce the integrity of the plug’s seal, forming a tighter seal as pressure is increased.

ReacXion Nano frac plugs are smaller by volume than other dissolvable frac plugs, accelerating dissolution. Their field-proven materials ensure that they dissolve fully and predictably in freshwater or common oilfield brines, depending on the version selected. Improved material selection also enables fast, controlled dissolution of the elastomer.

What makes ReacXion Nano frac plugs right for me?

  • Add flexibility with one tool that works from fracturing to fullbore production without the expense of milling.
  • Tune dissolution performance with the optimal material for freshwater or brine.
  • Benefit from efficient preassembly enabled by the Unity setting tool.

A proprietary field-proven coating protects the frac plug and prevents early dissolution, enabling plug placement in the well several hours before isolation is required. To complete isolation, a dissolvable ball is pumped down to the integral ball seat before fracturing begins. Optionally, the plug can be configured for deployment with the ball in place.
