GeoSphere 360 3D reservoir mapping-while-drilling service

Better reservoir understanding with volumetric and 3D insights

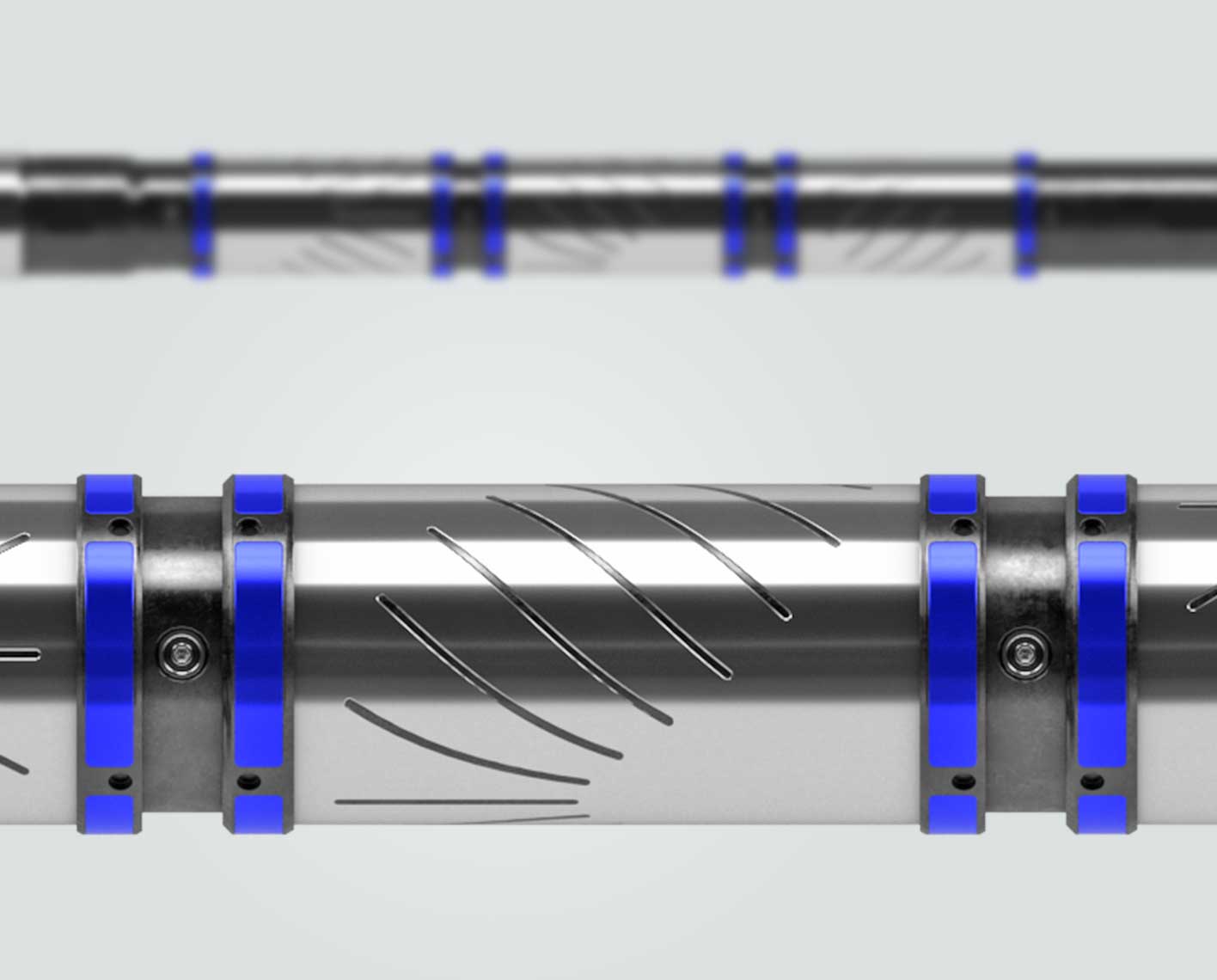

Product Render of GeoSphere 360

GeoSphere 360 3D reservoir mapping-while-drilling service goes beyond reservoir mapping in 2D layers. It provides fluid volumes, bodies, and faults—at reservoir scale. This technology delivers new understanding of uncertainty to a true 3D level. GeoSphere 360 service illuminates the reservoir environment to enable booking more reserves and producing more hydrocarbon per well. You can enhance your completion and production facility design by placing fewer, better wells with greater certainty and, in turn, meet your production targets with less CO2 emissions. The result is improved returns from complex reservoirs with lower impact.

Reservoir-specific GeoSphere 360 service extrapolates shapes that are impossible to see at the wellbore scale for better reservoir understanding in heterogenous or complex reservoirs—and not just 3D structural delineation but also 4D fluid-movement evaluation. By increasing confidence and certainty, operators can drill fewer and more accurate wells using informed, real-time reservoir steering and mapping, which reduces both overall drilling time and reduces carbon footprint.

GeoSphere 360 | Video
3D reservoir mapping-while-drilling service
Photo of the torso of geologist expert Mauro Viandante with dark digital background

Go Beyond 2D Mapping—Go 360

Contact Mauro Viandante, geosteering and reservoir domain champion, to learn how you can drill with real-time insights on fluid volumes, bodies, faults, and lithology—at the reservoir scale.

Contact our expert

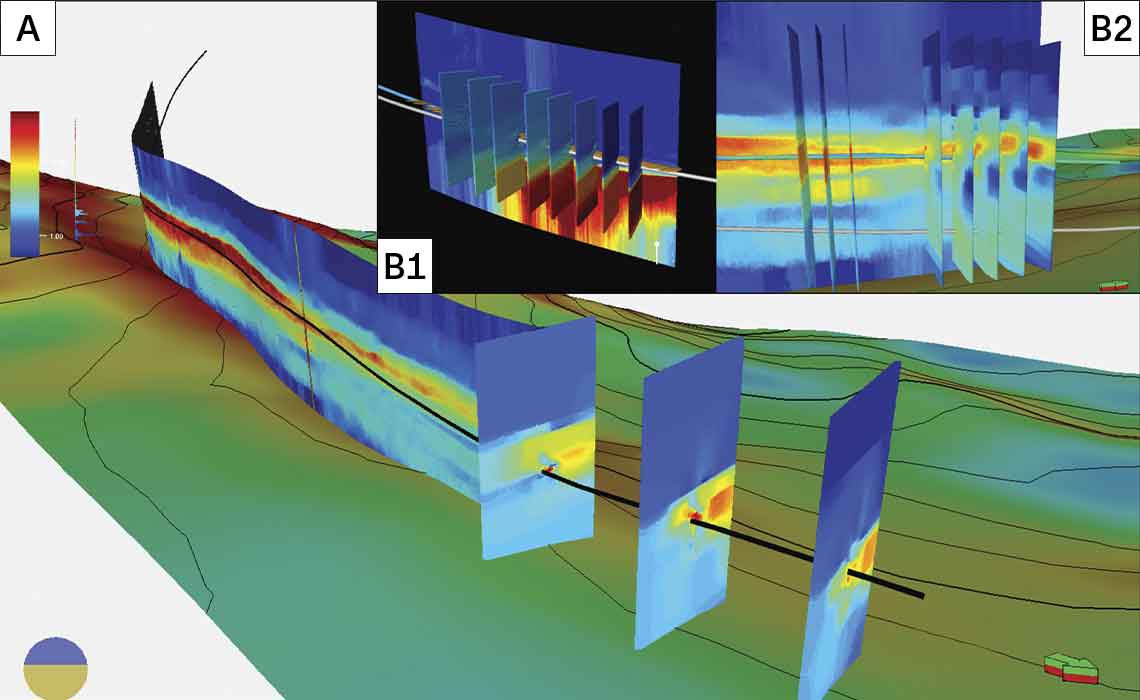

3D graphic of a reservoir showing a lateral resistivity variation indicating the sweet spot
The larger image shows integrating a 1D longitudinal resistivity inversion and a 2D transverse resistivity inversion map in the 3D steering workflow. This enables locating the sweet spot and adjusting trajectory, while inset B1 shows the 2D real-time transverse resistivity inversions enabling mapping reservoir tops in the well landing section. Inset B2 is the advanced lateral inversions that provide complete 3D structural understanding of the reservoir while drilling.

GeoSphere 360 service acquires 360° tensor data and sends it uphole in real time via mud pulse telemetry and wired drillpipe. Cloud computing is used to invert the large datasets with a 2D azimuthal pixel-based algorithm. GeoSphere 360 service produces 3D-resistivity volumes that are filtered to understand the geometrical relationship of the resistive geobodies around the wellbore, calibrating the seismic data and feeding into reservoir modeling workflows.
