High-capacity collet connector

Dark texture background

The HC high-capacity collet connector is similar to the popular Model 70 connector but is designed to provide greater clamping force to withstand higher separating forces. Similar to the Model 70, it locks to mating hub via pivoted locking segments, or fingers, which form a funnel to guide the connector into position. It has a large actuating piston area that creates greater preload at a given hydraulic pressure than the Model 70, as well as higher locking and unlocking forces.

The HC connector has a short swallow (shorter than any major wellhead connector on the market), tapered hub profile, and positive unlocking system that allow disconnection at angles up to 30°.

Specifications
Specifications Preload
  Up to 5,875,000 lbm
Specifications Height
  44 in [1,117 mm]
Specifications Max. subsea wellhead OD
  31.39 in [797 mm]
Specifications Max. connector OD
  62 in [1,574 mm]
Specifications Seal
  Metal-to-metal sealing AX gasket (standard)
Specifications Option
  Secondary unlock

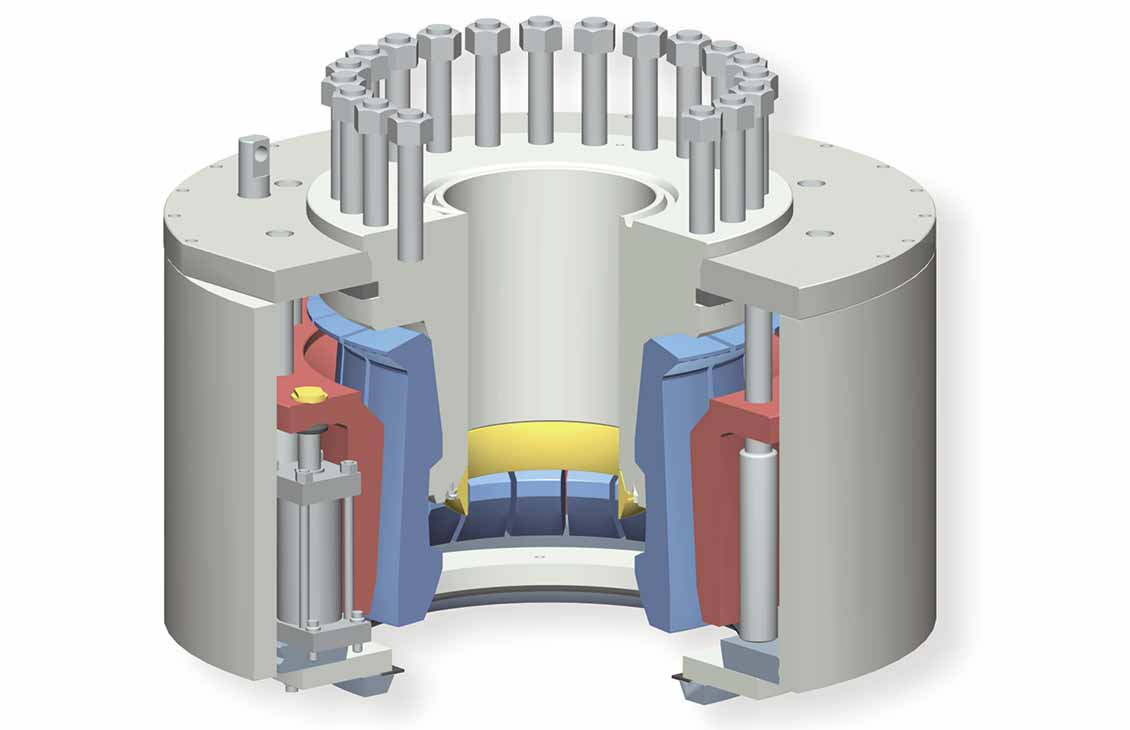

HC Collet Connector 3D Model
