Fast-moving rig

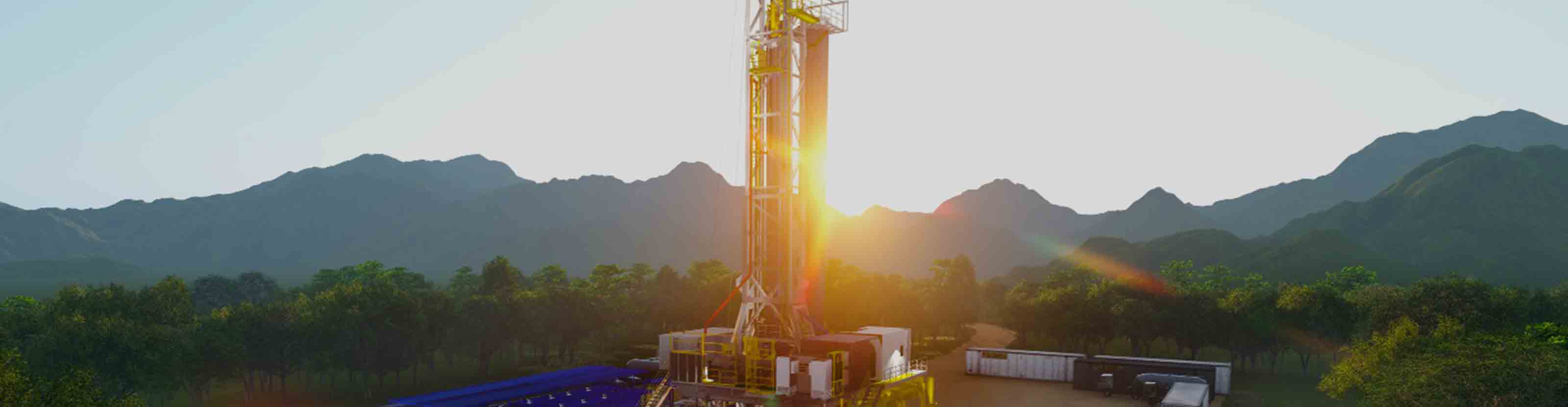

Maverick fast-moving rig in the field

Meet the demands of high-volume, quick-turnaround drilling operations

The Maverick fast-moving rig combines easy and fast rig-up and rig-down with a high level of structural strength. Able to handle the harsh challenges of high-volume horizontal drilling and move quickly, the Maverick rig has a proven track record of enhancing drilling efficiency in some of the world's most demanding pad drilling applications. The mast and substructure is available in multiple sizes for a wide range of drilling applications.

The mast and substructure can be readily transported with the top drive in the mast, reducing rig-up time and equipment handling damage. Other features include

  • craneless mast and substructure rig-up
  • advanced hydraulics for mechanized rig-up and enhanced crew safety
  • mast-raising cylinders for raising the substructure and mast
  • built-in drill floor fluid containment
  • transportation of top drive in the middle section and the traveling block in the mast crown section
  • seamless integration with the Lift & Slide walking system to provide "rig walking" capability
  • ability to rotate using just a Lift & Slide system.

The Maverick rig mast and substructure can be outfitted with Cameron drilling equipment packages and M-I SWACO solids control, cuttings management, and fluids processing equipment.

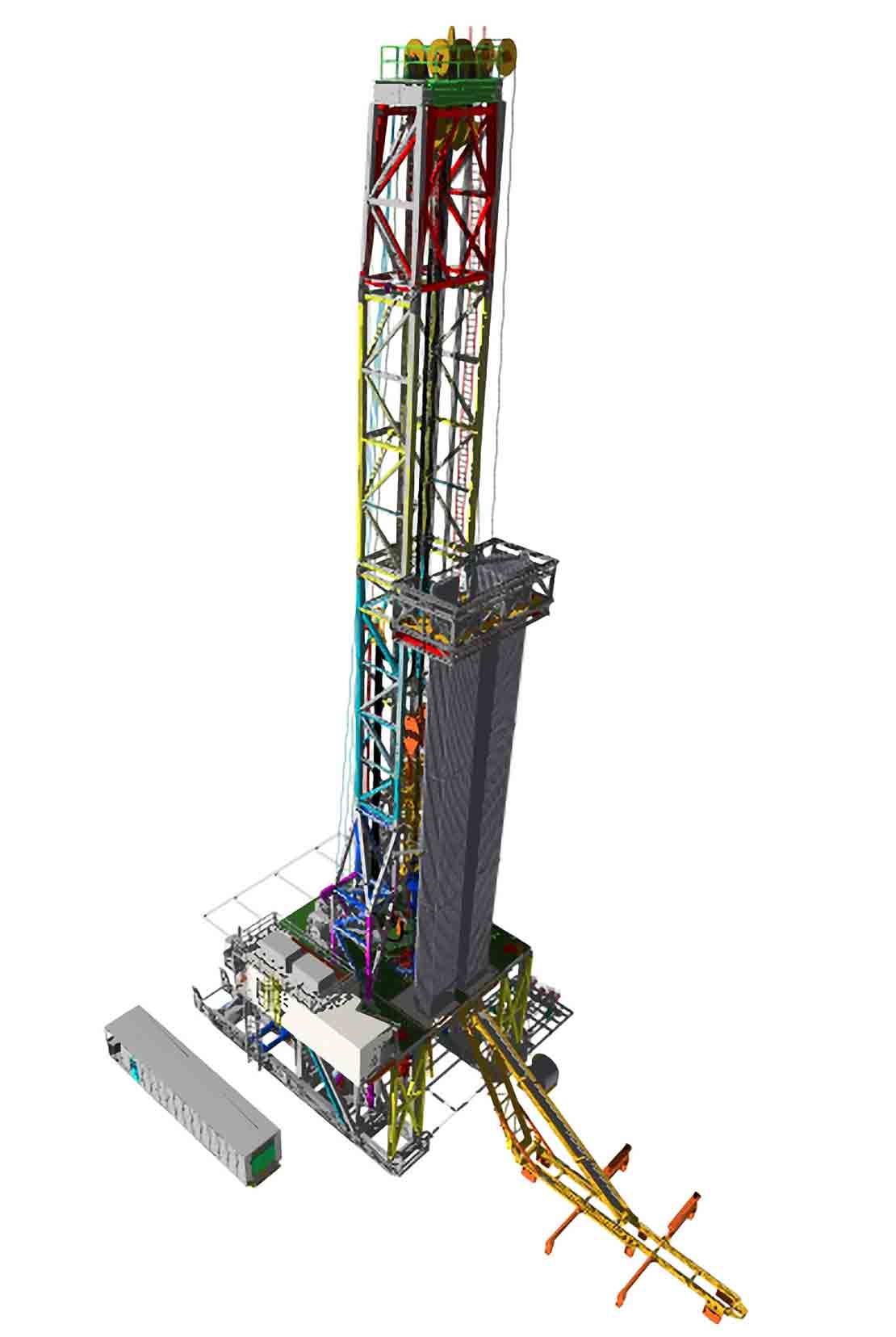

Maverick fast-moving rig isolated on white


Model 550K 750K 1000K
Mast height, ft 136 142 142
Substructure floor height, ft 22 28 28
Max. static rated hook load, lbf 550,000 750,000 1,000,000
Max. static rotary load, lbf 550,000 750,000 1,000,000
Max. static setback load, lbf 450,000 600,000 700,000
