Permian Basin: Western Texas and Eastern New Mexico

Stratigraphy plays a large role in the Permian Basin’s prolific oil and gas production. Multiple hydrocarbon-rich units are strewn throughout the stratigraphic column, enabling multiple stacked producing zones. Within the Permian’s 115,000 mi2 are the Delaware, Midland, and Central Basins, each with their own, often unique, stratigraphic formations. Within those are various depositional environments. Most of the Upper Permian hydrocarbon reservoirs are in San Andres and Grayburg Formations. The clastics of the Brushy Canyon reservoir of the Delaware Basin also contain hydrocarbon reserves. The sedimentary section of the Permian comprises Paleozoic carbonates that accumulated on the shelf of the basin while siliciclastic and some carbonates accumulated on the slope.

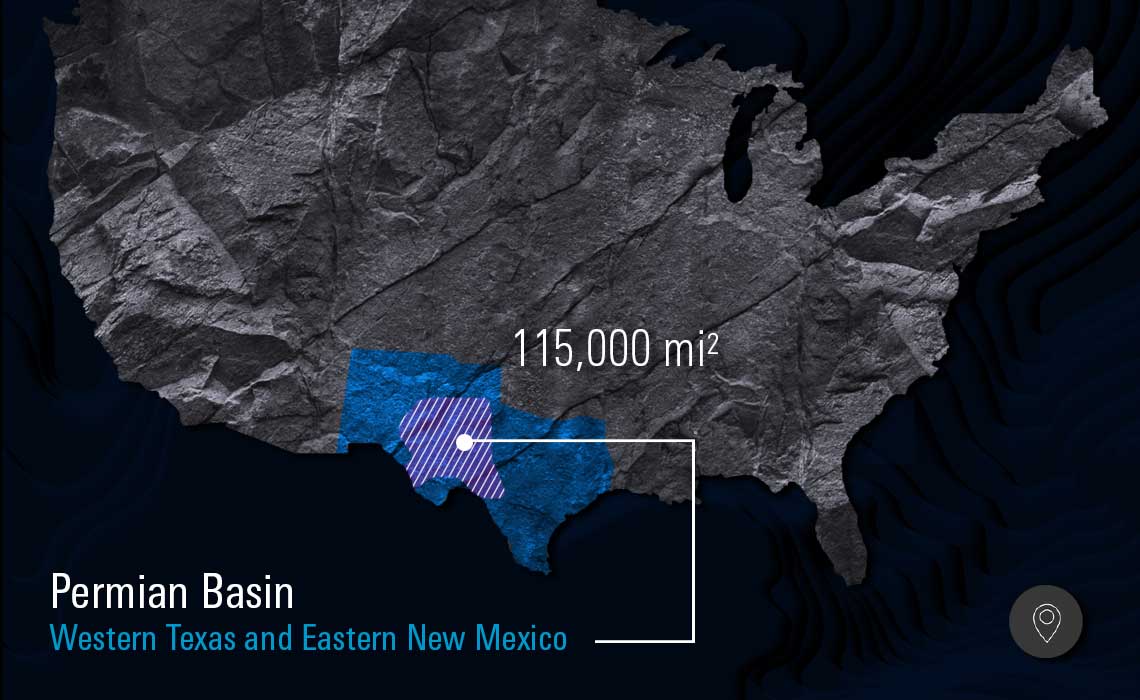

Illustration of a North America map highlighting the Permian basin
  • Data from Synapse service matches downhole, surface data, and formation tops in depth.
    Performance Insights and Optimization Service Data Enables Significant Improvement in Permian Basin

    Synapse service data increases ROP 30% and more than doubles footage. View link button arrow

  • Triple-ridged diamond element increases drillbit ROP by more than 20% in SCOOP play
    Triple-Ridged Diamond Element Increases Drillbit ROP by More Than 20%

    AxeBlade bit with Axe TR elements improves cutting efficiency in SCOOP play, Oklahoma. View link button arrow

  • Ridged diamond elements improve ROP by 18% in Wolfcamp formation.
    Ridged Diamond Elements Improve ROP by 18% in Wolfcamp Formation

    AxeBlade bit with Axe Ultra elements saves two days of drilling time. View link button arrow

  • Axe SR scribe-ridged diamond elements helped a Permian Basin operator achieve a record for footage drilled in one day.
    Permian Basin Operator Achieves 24-h Drilling Record

    Axe SR scribe-ridged diamond elements drill 6,183 ft in one day. View link button arrow

Eagle Ford Shale: Southern Texas

This cretaceous hydrocarbon-producing formation trends across Texas, roughly 50 mi wide and 400 mi long with a thickness that ranges from 50 to 400 ft in the Texas subsurface, below Austin Chalk and above Buda Limestone—4,000- to 12,000-ft depths.

Formations drilled in the surface section usually have a low abrasion and impact risk enabling operators to spud several wells with the same bit and reduce operational costs. However, one of the biggest challenges is the Wilcox Formation present in the drillout section. Its abrasive and interbedded layers force operators using conventional bits to reduce rpm and WOB. Additionally, curve sections often kick off right above the shale and are drilled with dogleg severities (DLS) ranging from 8° to 12°.

Illustration of a North America map highlighting the Eagle Ford basin
  • AxeBlade Bit Increases ROP 29% and Improves Directional Control in Eagle Ford Shale Interval - Ridged diamond element bit improves drilling rates while enhancing steerability with reduced reactive torque - Case Study
    AxeBlade Bit Increases ROP 29% and Improves Directional Control in Eagle Ford Shale Interval

    Ridged diamond element bit improves drilling rates while enhancing steerability with reduced reactive torque. View link button arrow

Marcellus Shale: Appalachian Basin

Stretching from New York down through Ohio, Pennsylvania, and into West Virginia, the Marcellus Shale comprises several layers of interbedded formations that lie between the surface and the production zone from 5,000- to 6,000-ft TVD. A typical surface interval down to 500 ft consists of a mixture of coal, siltstones, and shale with an unconfined compressive strength (UCS) up to 10,000 psi. Below this section is an intermediate interval down to nearly 2,000 ft, consisting of interbedded layers of sandstone, siltstone, and shale. The drillout section comprises soft shale with stringers of hard siltstone and, in some cases, sandstone stringers with up to 20,000-psi UCS. The production zone is reached by drilling an 8° to 12° DLS and a lateral section that is nearly all shale with occasional faults and limestone stringers.

Illustration of a North America map highlighting the Marcellus basin
  • Operator Cuts Deeper to Improve ROP in Medium-Strength Interbedded Layers, Marcellus Shale
    Operator Cuts Deeper to Improve ROP in Medium-Strength Interbedded Layers, Marcellus Shale

    StrataBlade concave diamond element bit improves ROP by 15% compared with the average offset performance of previous bits. View link button arrow

  • Ascent Uses at-bit data, improves drilling efficiency and performance while reducing bit damage.
    Ascent Uses At-Bit Data, Improves Drilling Efficiency and Performance While Reducing Bit Damage

    Synapse service analysis of while-drilling data improves drilling parameters. View link button arrow

  • Chart showing the NeoSteer CLx ABSS successfully drilled the tangent, curve, and lateral sections at a high ROP, leaving a high-quality borehole even in the tangent section.
    NeoSteer CLx ABSS Drills Three Sections in One Run Without Compromising ROP, Southwest Marcellus Shale

    System drills tangent, curve, and lateral sections while staying 91% in tight 4-ft target window. View link button arrow

  • Chart showing that the NeoSteer CL system drilled over 8,000-ft MD in a single day, with over 700 ft/h instantaneous ROP.
    NeoSteer CL System Drills Curve and Lateral Sections in a Single Run Over 2 Days, Maintaining 100% in Zone

    Curve and lateral at-bit steerable system reaches over 700-ft/h instantaneous ROP without compromising trajectory control or hole quality. View link button arrow

  • The HyperBlade bit achieved higher instantaneous ROP with the same WOB and rpm
    Repsol Uses HyperBlade Bit and PowerDrive Orbit RSS to Set ROP Record in Appalachian Basin

    Schlumberger integrated technologies improve drilling performance in Pennsylvania well. View link button arrow

Utica Shale

Located approximately 3,000 to 5,000 ft deeper than the Marcellus Shale, the Utica Shale play is a Middle Ordovician formation that stretches predominantly through Ohio and parts of Pennsylvania and West Virginia. Underneath the Onondaga Limestone lie extremely interbedded layers of dolomite, siltstone, and sandstone with the occasional presence of high compressive strength chert stringers, which pose a unique challenge when drilling intermediate sections. Transitioning from the vertical to the intermediate to the lateral section is 500 ft of ratty shale. The rest of the curve and lateral section, which contains low compressive-strength shale with occasional limestone stringers, is part of the Trenton Limestone and where compressive-strength increases. These heavily interbedded formations mean high potential for impact-related damages to drill bits, unless designed with this shale play in mind.Back to top.

Illustration of a North America map highlighting the Utica basin
  • Synapse performance insights and optimization service on a blade
    Synapse
    Performance insights and optimization service

    Enhance drilling operational safety and effectiveness using postrun, at-bit dynamics data. View link button arrow

Image of Chad Conry, Well Construction Product Engineering Manager

Ask Chad About Improving Drilling Performance in Your Basin

Contact Chad download button

DJ Basin: South Dakota, Colorado, Nebraska, and Wyoming

Among the drilling targets in the Niobrara and Codell Formations, the Niobrara Formation itself has three separate benches comprising separated shales of mainly chalk and marl. They are characterized as having laminar inhomogeneity, which changes depending on the bench. In addition to laminations, faults are encountered in both the Niobrara and Codell, and are numerous and severe in their throw, becoming more severe in the southwestern side of the basin. The Niobrara sits at about a 7,000-ft TVD and is capped by the Sharon Springs Member, which also serves as a source rock. Below the Niobrara C is the Fort Hays Formation limestone at 7,100-ft TVD, which is a hard cap of 20,000 psi and separates the Codell sandstone beneath. The Codell is a largely homogenous sandstone of 5,000- to 10,000-psi UCS. Due to the faulted nature of the DJ Basin, throws from the Codell can be problematic as they can result in unexpected Fort Hays contact, posing difficulties for drilling assemblies. Likewise, a large fault in the Niobrara A can result in Sharon Springs contact that risks hole stability.

Illustration of a North America map highlighting the DJ basin
  • Chart showing wells drilled using the NeoSteer CL ABSS showed a significant improvement over the wells in the previous pad.
    SRC Energy Drills 12 Wells With 1.17 Average Runs per Well, DJ Basin

    Curve and lateral at-bit steerable system improves ROP 20% and drills 4 fastest wells in program history. View link button arrow

  • Chart showing that the pad plan view shows that the NeoSteer CL ABSS performed more smoothly than the standard RSS-BHA configuration.
    At-Bit Steerable System Cuts DLS in Lateral by 50%

    Closed loop steering automation feature enables straighter laterals, less friction, and more time in zone. View link button arrow

  • The HyperBlade bit significantly increased ROP while setting a rig record for the field.
    HyperBlade Bit Raises Performance Standard in DJ Basin, Colorado

    Bit with 3D cutting element technology achieves field performance record. View link button arrow

  • Innovative Drillbit Design Increases Average On-Bottom ROP by 39% and Saves PDC Energy 7.5 Rig Hours - Three-blade StingBlade bit with utility gauge pads improves ROP, steerability, and toolface control in Niobrara Shale vertical and curve drilling application - Case Study
    Innovative Drillbit Design Increases Average On-Bottom ROP by 39% and Saves PDC Energy 7.5 Rig Hours

    Three-blade StingBlade bit with utility gauge pads improves ROP, steerability, and toolface control in Niobrara Shale vertical and curve drilling application. View link button arrow

Haynesville Shale: Louisiana, Arkansas, and Texas

The Haynesville Shale Formation is an unconventional gas play crossing vast acreages in East Texas and Northwest Louisiana. The formation lies beneath the Bossier Shale and atop the Smackover Formations with TVD depths ranging from 10,500 to 12,500 ft, depending on the drilling field location. Reaching the Haynesville Shale is a challenge because of the Hosston, Travis Peak, and Cotton Valley Formations. These interbedded and abrasive formations can cause premature failure.

Drilling curve and lateral sections through the Haynesville requires water-based muds with weights that may vary, though often exceeding 15 lbm/galUS, potentially creating a plastic shale effect that destabilizes wellbores in the Haynesville Shale.

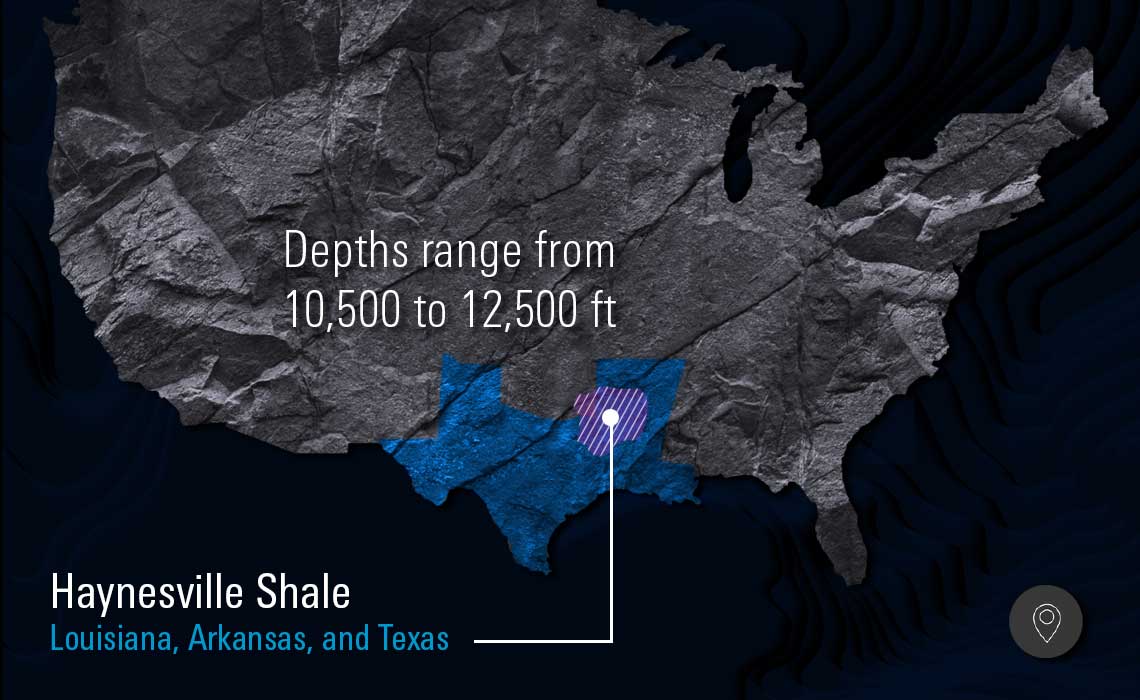

Illustration of a North America map highlighting the Haynesville Basin
  • A graph showing Synapse service designed a bit to outperform third-party bits in the same formation.
    Bit Performance and Optimization Saves Rockcliff 40 h With Record-Setting Bit Design, Catapulting ROP 69%

    Synapse service uses in-bit data to hone Haynesville Shale—specific bit View link button arrow

  • Operator improves ROP in high-impact, abrasive interbedded layers, Haynesville Basin.
    Operator Improves ROP in High-Impact, Abrasive Interbedded Layers, Haynesville Basin

    StrataBlade bit improves average pad ROP by 28% compared to the offset performance of conventional bit. View link button arrow

Williston Basin and Bakken Shale: Montana and North Dakota

Williston Basin laterals are predominantly drilled in two target formations: The Middle Bakken Member and the Three Forks Group. The Middle Bakken is located at 9,500- to 10,500-ft TVD and sandwiched between the Upper and Lower Bakken Shales that serve as the source rock for the Middle Bakken Member. The dolostone of the Middle Bakken is mostly homogenous with 15,000-psi UCS. Middle Bakken thickness varies across the Williston Basin, which is centered around the western half of North Dakota. Composition also varies, driven largely by the porosity of the rock comprising clay, quartile, and calcite content.

The Three Forks Formation sits below the Middle Bakken from 10,000- to 11,000-ft TVD. Fed by the Lower Bakken Shale, Three Forks is a mix of dolomite layered with mostly sand and clay, and there are laminations as thin as 1 in. Accessing these formations begins with upper sections of the vertical section through soft and sticky shales and sands comprised of the Pierre Shale and Mowry Formations, followed by the Dakota Formation, which is a mix of sands, shales, and salts. Below the Dakota is highly variable in compressive strength from below 5,000 to more than 30,000 psi, typically encountered in the transition into the Piper Limestone and in the very difficult Minnelusa Group. These punishing transitions finally subside below the Kibbey Formation limestone cap, where salt and anhydrite content increase. The final section is drilled through hard limestone known as the Mission Canyon and Lodgepole Formations, notoriously difficult to drill because of their consistent 20,000 UCS.

Illustration of a North America map highlighting the Williston basin
  • At-Bit performance data used to increase ROP and improve dynamic stability, Williston Basin.
    At-Bit Performance Data Used to Increase ROP and Improve Dynamic Stability, Williston Basin

    Synapse service while-drilling data enhances AxeBlade bit durability and performance. View link button arrow

  • Scribe-ridged element enables bit to increase ROP and durability.
    Scribe-Ridged Element Enables Bit to Increase ROP and Durability

    Customized AxeBlade bit required lower WOB to increase cutting efficiency by up to 34%. View link button arrow

  • Scribe-Ridged Elements Increase Bit ROP on Average by More Than 10%
    Scribe-Ridged Elements Increase Bit ROP on Average by More Than 10%

    Williston Basin operator outperforms baseline run in hard limestones, anhydrites, and sand. View link button arrow

Anadarko-Woodford: West-Central Oklahoma

The Anadarko-Woodford Shale play was first drilled in 2005. This play offers about 1,300 bbl/d, as well as 47 Mcf natural gas. And it is expected that the Anadarko-Woodford play has approximately 22.2 Tcf of recoverable gas. There are nearly 900 wells across the play, and the rig count has remained consistent over the last few years. Consisting of a soft shale base, the formation is unique, containing significant chert and chert-like silica deposits. It challenges drillers with pyrite throughout the play. This combination is extremely destructive to drillbit technologies. Drillbit cutters are subject to impact, wear, and heat that reduces bit effectiveness and lead to higher well construction costs. The formation requires bits and cutting elements with improved durability to maintain ROP and footage.

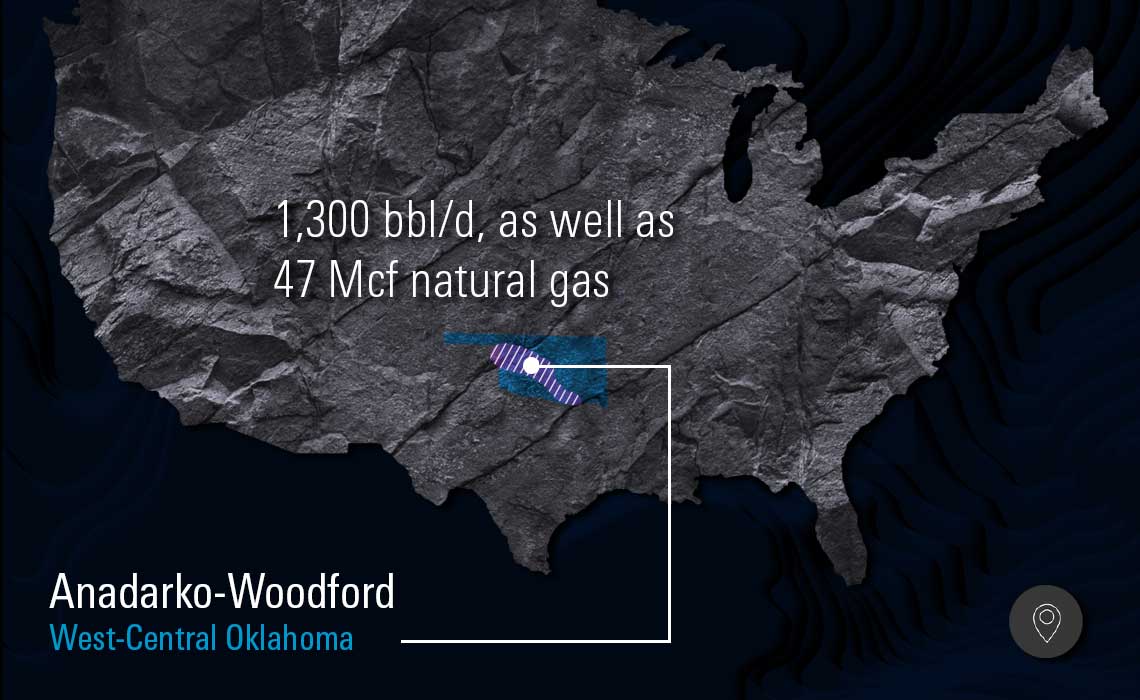

Illustration of a North America map highlighting the Anadarko basin

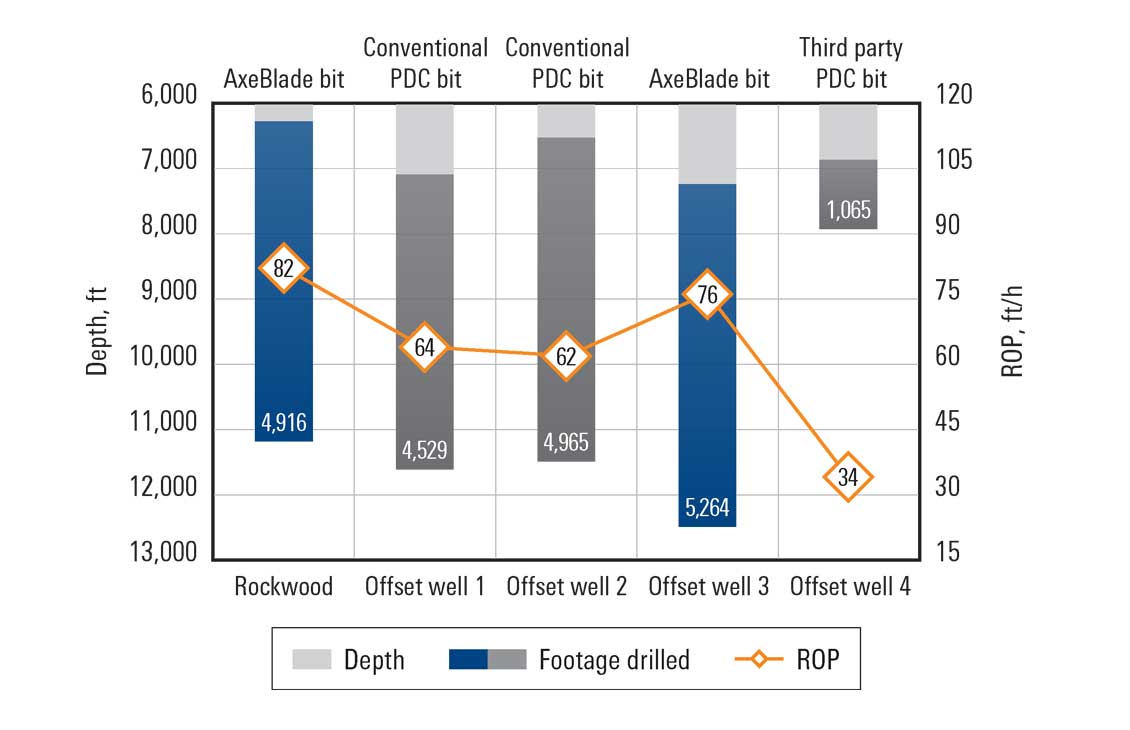

  • Chart shows using the AxeBlade bit, BP drilled 4,916 ft at an ROP of 82 ft/h.
    AxeBlade Ridged Diamond Element Bit Doubles Footage, Increases ROP 41% in Woodford Shale

    BP uses bit with engineered cutting elements to drill curve and lateral sections. View link button arrow

  • Specialty Bit Helps BP Exceed ROP Expectations by up to 100 Percent, Oklahoma - Customized bit design helps operator overcome high DLS while hitting target blocks in single run - Case Study
    Specialty Bit Helps BP Exceed ROP Expectations by up to 100%, Oklahoma

    Customized bit design helps operator overcome high DLS while hitting target blocks in single run. View link button arrow

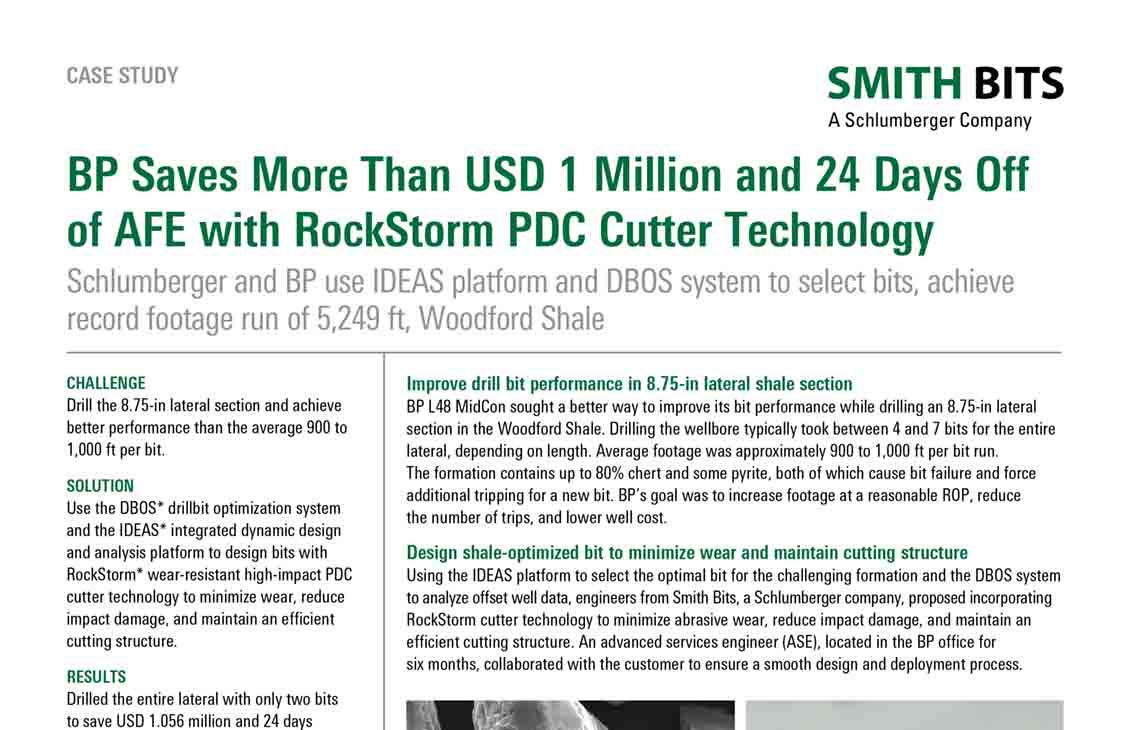

  • BP Saves More Than USD 1 Million and 24 Days OFF of AFE with RockStorm PDC Cutter Technology - Schlumberger and BP use IDEAS platform and DBOS system to select bits, achieve record footage run of 5,249 ft, Woodford Shale - Case Study
    BP Saves More Than USD 1 Million and 24 Days Off of AFE with RockStorm PDC Cutter Technology

    Schlumberger and BP use IDEAS platform and DBOS system to select bits, achieve record footage run of 5,249 ft, Woodford Shale. View link button arrow

Granite Wash: Texas and Oklahoma

With a rich area of mineral deposits, the panhandle area of Oklahoma and Texas makes a great drilling region for natural gas and crude oil. There are formations at approximately 11,000 to 15,000 ft in the Granite Wash play, producing about 27 MMcf of natural gas and nearly 3,200 bbl/d of oil. This is also a newer play, meaning that production is expected to increase over time.

The Granite Wash is made of the eroded remains of many types of formations, resulting in a very diverse “wash” of lithologies. These unique rock characteristics and properties create a multitude of challenging drilling environments, ranging from high quartz and chert content, resulting in low ROP, to relatively softer and increased shale content, enabling faster ROP. Throughout the range of zones, the formation typically exhibits a moderate to high abrasive nature. Drillers in this play seek a drill bit with cutters that endure such conditions to increase footage drilled, sustain higher ROP, and lower overall drilling costs.Back to top.

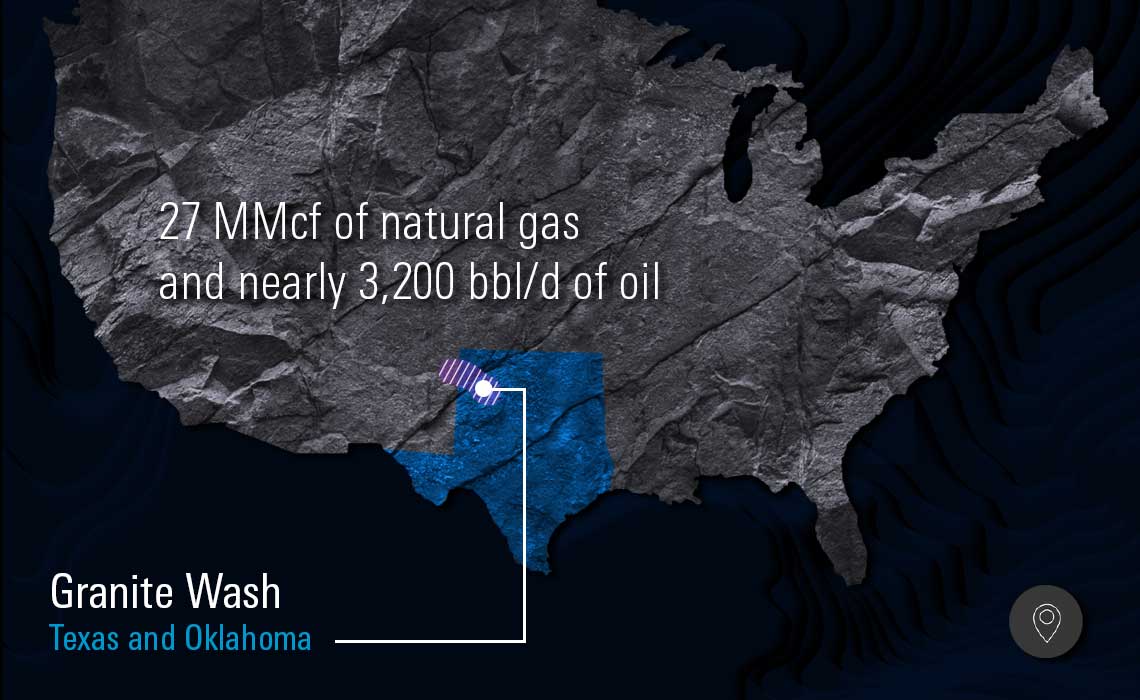

Illustration of a North America map highlighting the Granite Wash basin
  • Synapse performance insights and optimization service on a blade
    Synapse
    Performance insights and optimization service

    Enhance drilling operational safety and effectiveness using postrun, at-bit dynamics data. View link button arrow

  • Chesapeake Improves Footage per Bit and ROP in Abrasive Formation with EnduroBlade 360 Bit
    Chesapeake Improves Footage per Bit and ROP in Abrasive Formation with EnduroBlade 360 Bit

    The operator deployed bits with 16-mm rolling diamond element bit to increase bit run length and ROP compared with 13-mm rolling-cutter and fixed-cutter bits, Oklahoma. View link button arrow
